N383S-03M - Tripp Lite FIBER CABLE 400G SMF DUP SN-UPC M/M 3M

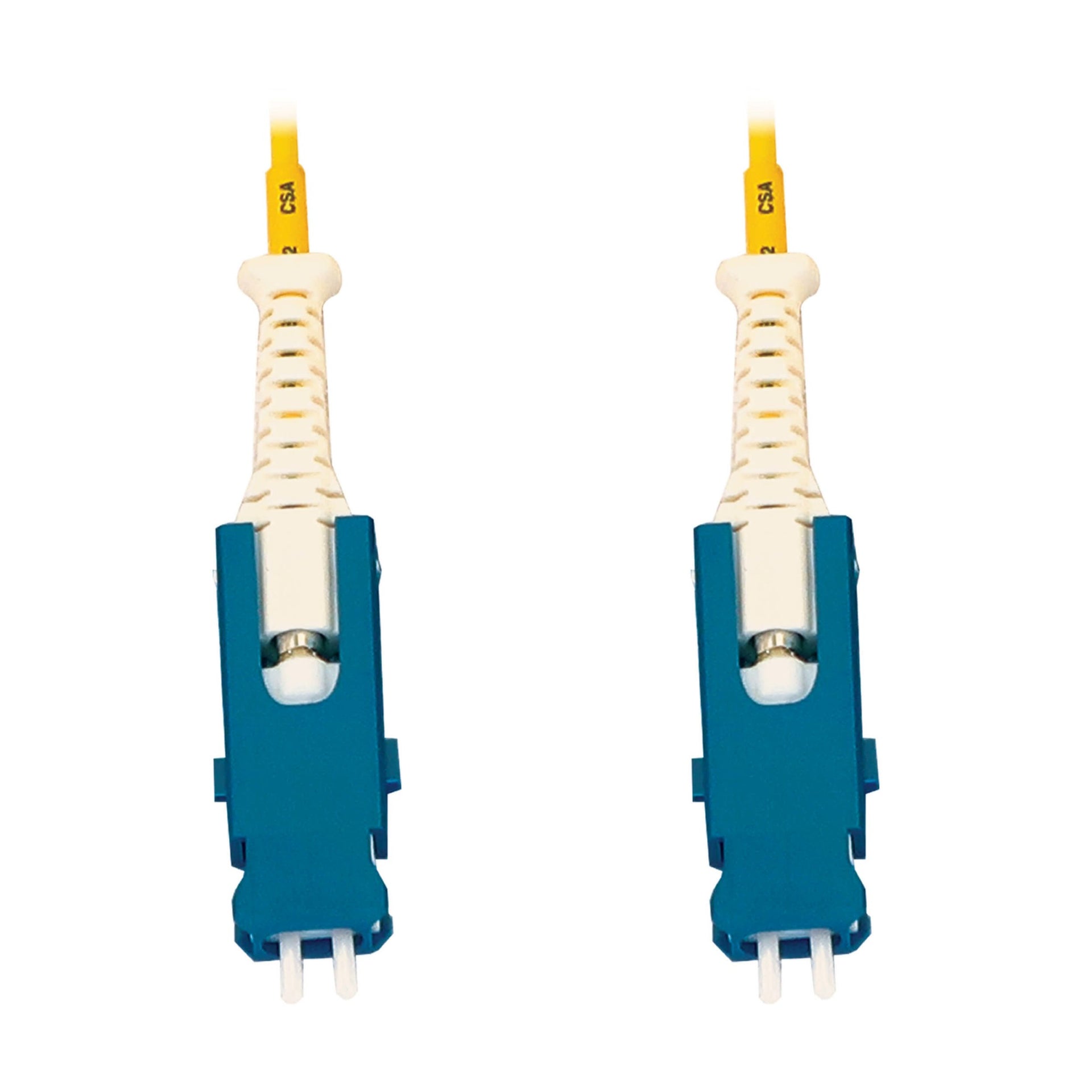

400 GbE Cable Supports High Bandwidths for High-Density Data Networking The N383S-03M is a premium singlemode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals. Its high bandwidth is ideal for hyperscale, edge, enterprise and colocation data center interconnect (DCI) applications where density and speed are both very important. Compact SN Connectors Designed for the Latest OSFP/QSFP-DD Transceivers This 400 Gb cable features duplex SN connectors on both ends. SN connectors are four times smaller than standard LC connectors and provide individual and independent duplex fiber support for OSFP/QSFP-DD transceivers. Push/pull boots encourage dense vertical stacking within a crowded patch panel or switch and make the cable easy to install or remove with just one hand. The switchable SN/UPC ends let you make quick polarity changes in the field without tools or the need to re-terminate the connectors. Yellow-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.



Specification:



Technical details
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Single-mode
Connector 1	SN
Connector 2	SN
Cable type	OFNR
Cable length	196.9" (5 m)
Full duplex	Yes
Core diameter	9 µm
Cladding diameter	125 µm
Insertion loss	0.3 dB
Sustainability compliance	Yes
Sustainability certificates	RoHS, CE, REACH
Features
Fibre optic type	OS2
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Single-mode
Connector 1	SN
Connector 2	SN
Cable type	OFNR
Cable length	196.9" (5 m)
Full duplex	Yes
Core diameter	9 µm
Cladding diameter	125 µm
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-10 - 60 °C
Insertion loss	0.3 dB
Certification	UL 1651
Country of origin	China
Ethernet interface type	400 Gigabit Ethernet
Wavelengths supported	1310,1550 nm
Harmonized System (HS) code	8544.70.0000
Product colour	Blue, White, Yellow
Connector 2 gender	Male
Connector 1 gender	Male
Connector polish type	UPC
Certificates
Certification	UL 1651
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-10 - 60 °C
Weight & dimensions
Cable length	196.9" (5 m)
Package width	7" (177.8 mm)
Package depth	9" (228.6 mm)
Package height	0.252" (6.4 mm)
Cable diameter	0.0630" (1.6 mm)
Package weight	1.06 oz (30 g)
Packaging data
Package width	7" (177.8 mm)
Package depth	9" (228.6 mm)
Package height	0.252" (6.4 mm)
Package weight	1.06 oz (30 g)
Logistics data
Master (outer) case width	5.8" (147.3 mm)
Master (outer) case length	7.4" (188 mm)
Master (outer) case height	3.9" (99.1 mm)
Master (outer) case gross weight	9.88 oz (280 g)
Products per master (outer) case	10 pc(s)
