N390-03M-8S-AP - Tripp Lite 40/100/400G SINGLEMODE 9/125 OS2 FIB. 3M

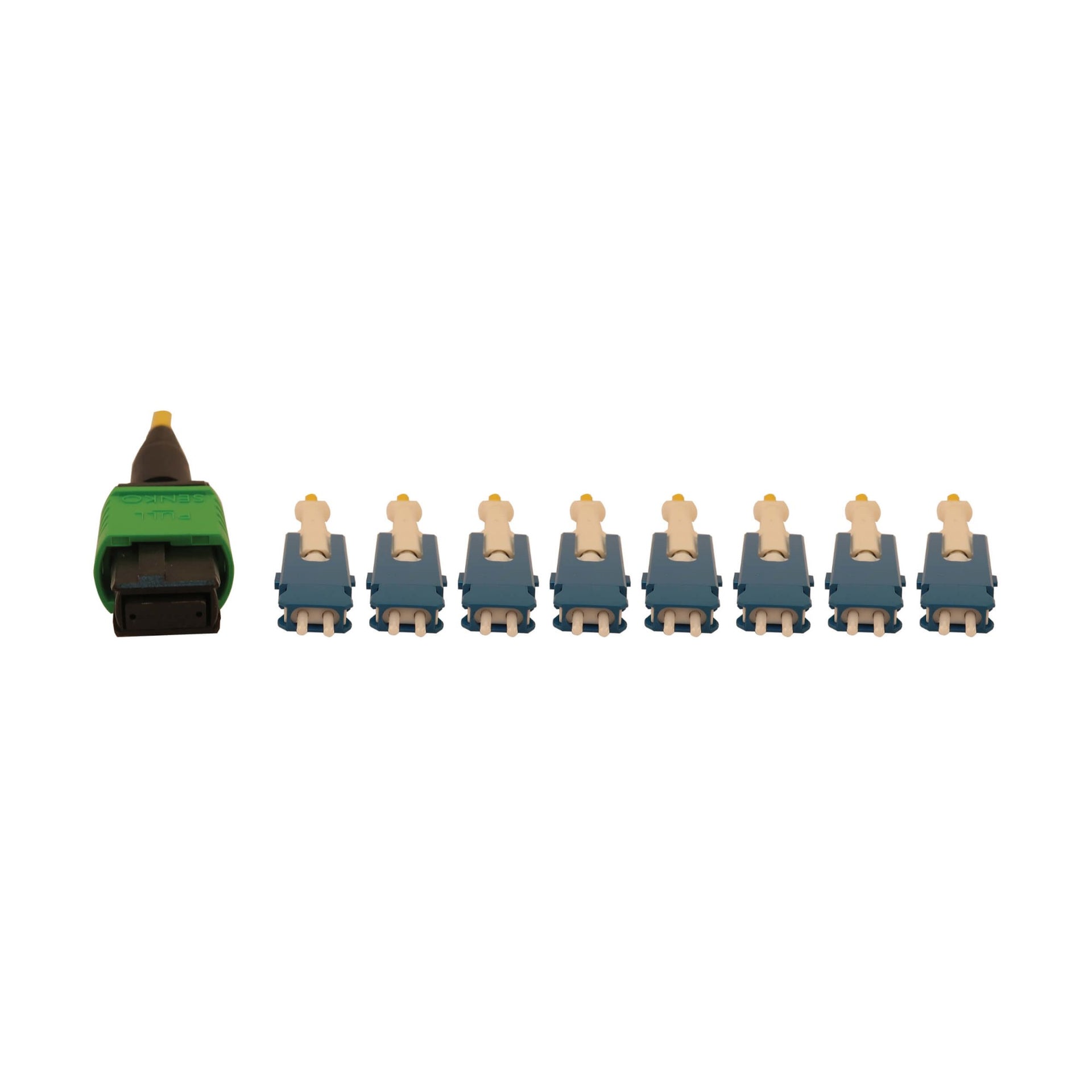

40/100/400 GbE Cable Supports High Bandwidths for High-Density Data Networking The N390-03M-8S-AP is a premium singlemode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This OS2 breakout cable is an ideal choice for 400 Gb Ethernet applications. It is also backward compatible with 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb. Compact SN Connector Designed for the Latest OSFP/QSFP-DD Transceivers One cable end features SN connectors, which are four times smaller than a standard duplex LC connector and provide individual and independent duplex fiber breakout at a quad-style OSFP/QSFP-DD transceiver. Its push/pull boot encourages dense vertical stacking within a crowded patch panel or switch and makes the cable easy to install or remove with just one hand. Switchable SN/UPC duplex ends let you make quick polarity changes in the field without tools or the need to re-terminate the connectors. 100% Tested for Low Insertion Loss and Back Reflection The 16-fiber MTP/MPO APC connector helps minimize back reflection with low insertion loss. The connector’s slim boot is designed for easy cable management. Yellow-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.



Specification:



Technical details
Fiber mode structure	Single-mode
Connector 1	MTP
Connector 2	MTP
Cable type	OFNP
Cable length	196.9" (5 m)
Core diameter	8.3 µm
Cladding diameter	125 µm
Sustainability certificates	RoHS
Master (outer) case GTIN (EAN/UPC)	10037332205381
Features
Fiber mode structure	Single-mode
Connector 1	MTP
Connector 2	MTP
Cable type	OFNP
Cable length	196.9" (5 m)
Core diameter	8.3 µm
Cladding diameter	125 µm
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Data transfer rate	100 Gbit/s
Country of origin	China
Harmonized System (HS) code	8544.70.0000
Product colour	Yellow
Connector 2 gender	Female
Connector 1 gender	Female
Data transmission
Data transfer rate	100 Gbit/s
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Cable length	196.9" (5 m)
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	1.76 oz (50 g)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	1.76 oz (50 g)
Logistics data
Master (outer) case width	7.3" (185.4 mm)
Master (outer) case length	5.9" (149.9 mm)
Master (outer) case height	4" (101.6 mm)
Master (outer) case gross weight	21.2 oz (600 g)
Products per master (outer) case	10 pc(s)
