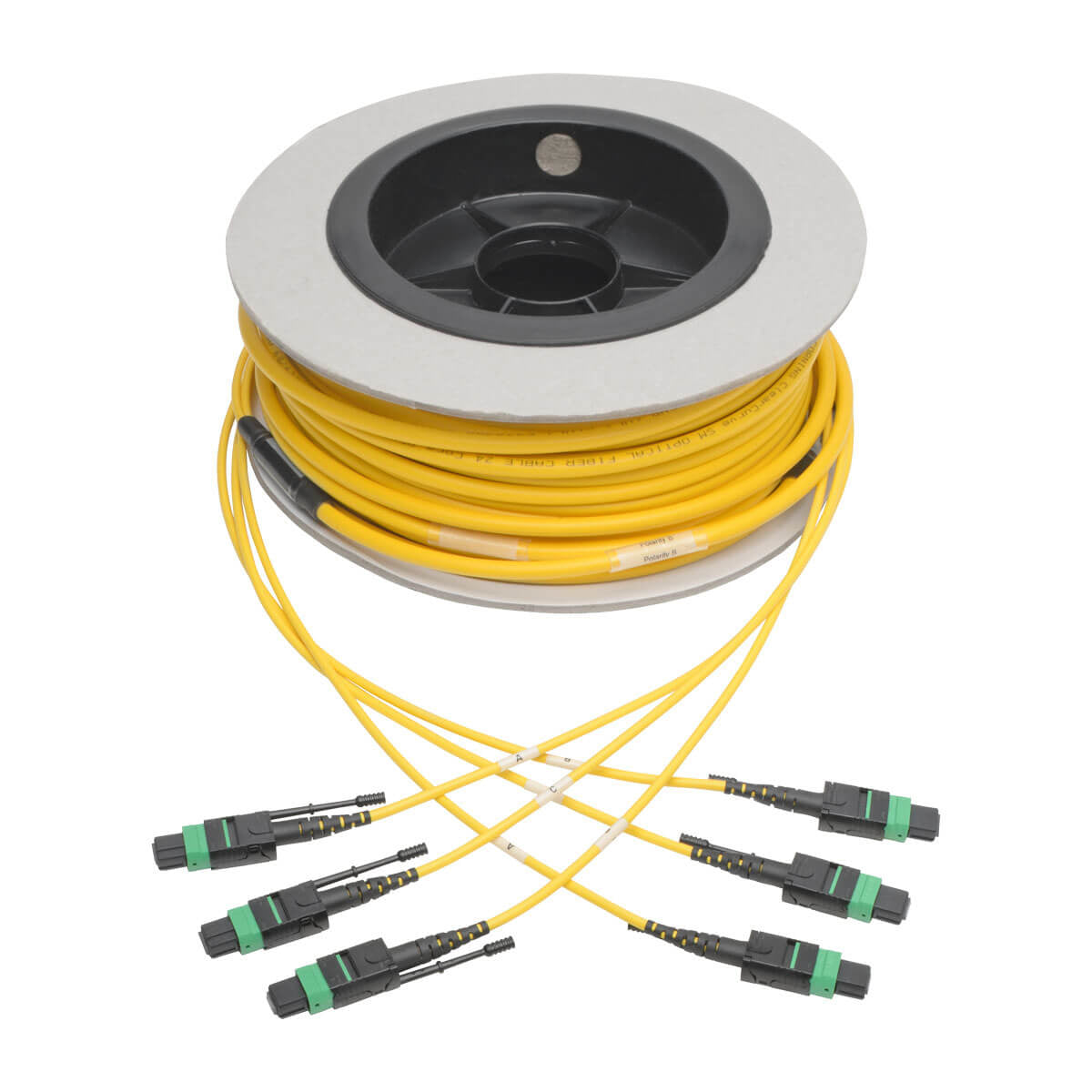

N392-38M-3X8-AP - Tripp Lite MTP/MPO (APC) SINGLEMODE SLIM TRUNK CABLE, 24-STRAND, 40/100 GBE, 40/100GBASE-PL

9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications Designed to extend high-density connections between network equipment in telecom rooms and data centers Recommended for patching between data center MDFs and IDFs Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks 6 mm dual plenum-rated jacket and bend-insensitive fiber perfect for ceilings, walls and ducts Yellow-colored for identification as a singlemode cable Factory-Terminated MTP/MPO APC Connectors with Push/Pull Tabs 8-fiber female connectors 12 times denser than SC connectors Push/pull tab connectors easy to install and remove with one hand Angled connectors prevent light from reflecting back into laser 100% tested for low insertion loss and back reflection



Specification:



Technical details
Fiber mode structure	Single-mode
Connector 1	MTP
Connector 2	MTP
Cable type	OFNP
Cable length	1771.7" (45 m)
Core diameter	8.3 µm
Cladding diameter	125 µm
Sustainability certificates	RoHS
Master (outer) case GTIN (EAN/UPC)	10037332205480
Features
Fiber mode structure	Single-mode
Connector 1	MTP
Connector 2	MTP
Cable type	OFNP
Cable length	1771.7" (45 m)
Core diameter	8.3 µm
Cladding diameter	125 µm
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Data transfer rate	100 Gbit/s
Country of origin	China
Harmonized System (HS) code	8544.70.0000
Product colour	Yellow
Connector 2 gender	Female
Connector 1 gender	Female
Data transmission
Data transfer rate	100 Gbit/s
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Cable length	1771.7" (45 m)
Package width	10.2" (260.1 mm)
Package depth	10.2" (260.1 mm)
Package height	4.72" (119.9 mm)
Package weight	4.19 lbs (1.9 kg)
Packaging data
Package width	10.2" (260.1 mm)
Package depth	10.2" (260.1 mm)
Package height	4.72" (119.9 mm)
Package weight	4.19 lbs (1.9 kg)
Logistics data
Master (outer) case width	19.7" (500.4 mm)
Master (outer) case length	15.7" (398.8 mm)
Master (outer) case height	11" (279.4 mm)
Master (outer) case gross weight	23.6 lbs (10.7 kg)
Products per master (outer) case	5 pc(s)
