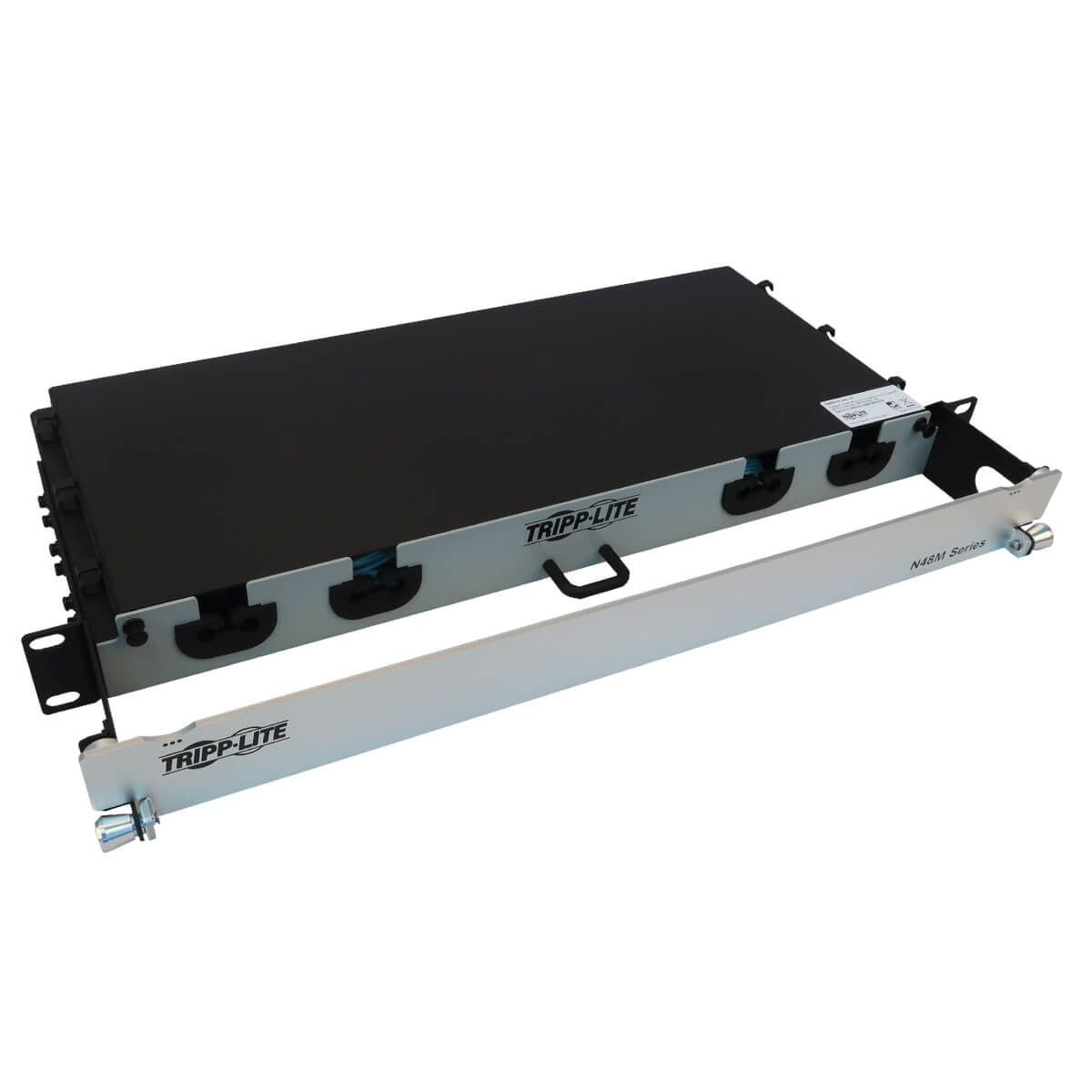

N48M-2L24L-10 - Tripp Lite PRELOADED FIBER PANEL 2X 12X LC/LC 24F T

1U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time All necessary cabling is included with this preloaded fiber panel, coiled inside and ready for immediate use. The aluminum 1U chassis features two 24-fiber LC Duplex multimode trunk cables, both 10 meters (32.8 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter, allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved. The N48M-2L24L-10 mounts in just 1U of space in an EIA-standard 19-inch rack.



Specification:



Network
Duplex	Yes
Cable types supported	Fiber
Connector(s)	LC - LC
Multi-mode fiber (MMF) supported	Yes
Fiber optic connector	LC
Features
Mounting	Rack mounting
Rack capacity	1U
Product colour	Black, Silver
Technical details
Mounting	Rack mounting
Operating temperature (T-T)	-20 - 60 °C
Package width	22.8" (579.1 mm)
Package height	4.3" (109.2 mm)
Sustainability compliance	Yes
Sustainability certificates	RoHS, REACH
Design
Mounting	Rack mounting
Rack capacity	1U
Cable length	787.4" (20 m)
Cable colour	Aqua
Cable jacket material	PVC
Product colour	Black, Silver
Operational conditions
Operating relative humidity (H-H)	5 - 85%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 85%
Operating temperature (T-T)	-20 - 60 °C
Colour
Product colour	Black, Silver
Packaging data
Package weight	7.94 lbs (3.6 kg)
Package depth	18.9" (480.1 mm)
Package width	22.8" (579.1 mm)
Package height	4.3" (109.2 mm)
Logistics data
Master (outer) case gross weight	34 lbs (15.4 kg)
Products per master (outer) case	4 pc(s)
Master (outer) case width	23.6" (599.4 mm)
Master (outer) case length	19.7" (500.4 mm)
Master (outer) case height	18.9" (480.1 mm)
Master (outer) case GTIN (EAN/UPC)	10037332262162
Country of origin	China
Weight & dimensions
Package weight	7.94 lbs (3.6 kg)
Package width	22.8" (579.1 mm)
Package height	4.3" (109.2 mm)
