N48M-32M8L4-03 - Tripp Lite PRELOADED FIBER PANEL 2U 32X12F MTP/MPO-

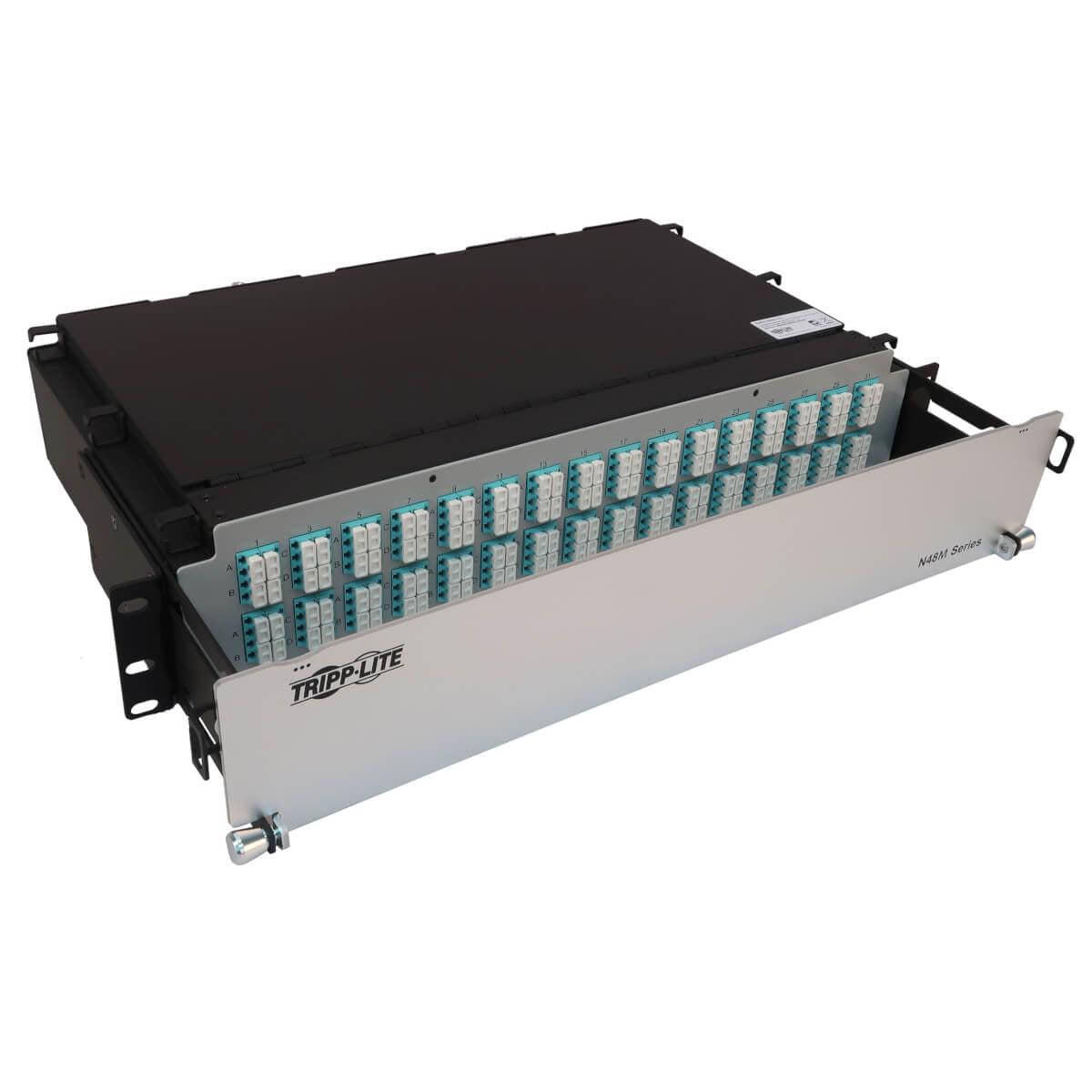

2U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time All necessary cabling is included with this preloaded fiber panel, coiled inside and ready for immediate use. The aluminum 2U chassis features 32 MTP/MPO-PC to LC Duplex 8-fiber multimode trunk cables, all three meters (9.8 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter, allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved. Integrates Equipment to Meet Current Connectivity Needs This preloaded slack-free panel helps integrate your 10 Gb equipment with 40 Gb networks or 25 Gb equipment with 100 Gb networks in a simple, elegant and flexible manner. The N48M-32M8L4-03 mounts in just 2U of space in an EIA-standard 19-inch rack.



Specification:



Network
Ethernet interface type	10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet
Duplex	Yes
Cable types supported	Fiber
Ports quantity	192
Connector(s)	MTP/MPO - LC
Multi-mode fiber (MMF) supported	Yes
Features
Mounting	Rack mounting
Rack capacity	3U
Product colour	Black, Silver
Technical details
Mounting	Rack mounting
Operating temperature (T-T)	-20 - 60 °C
Package width	22" (558.8 mm)
Package height	8.9" (226.1 mm)
Sustainability compliance	Yes
Sustainability certificates	RoHS, REACH
Design
Mounting	Rack mounting
Rack capacity	3U
Cable length	196.9" (5 m)
Cable colour	Aqua
Product colour	Black, Silver
Operational conditions
Operating relative humidity (H-H)	5 - 85%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 85%
Operating temperature (T-T)	-20 - 60 °C
Colour
Product colour	Black, Silver
Packaging data
Package weight	19.2 lbs (8.7 kg)
Package depth	18.9" (480.1 mm)
Package width	22" (558.8 mm)
Package height	8.9" (226.1 mm)
Logistics data
Master (outer) case gross weight	40.6 lbs (18.4 kg)
Products per master (outer) case	2 pc(s)
Master (outer) case width	23.6" (599.4 mm)
Master (outer) case length	19.7" (500.4 mm)
Master (outer) case height	18.9" (480.1 mm)
Master (outer) case GTIN (EAN/UPC)	10037332262247
Country of origin	China
Weight & dimensions
Package weight	19.2 lbs (8.7 kg)
Package width	22" (558.8 mm)
Package height	8.9" (226.1 mm)
