N518-15M - Tripp Lite 15M DUPLEX MULTIMODE 50/125 FIBER OPTIC PATCH CABLE LC/ST 50FT 15 METER

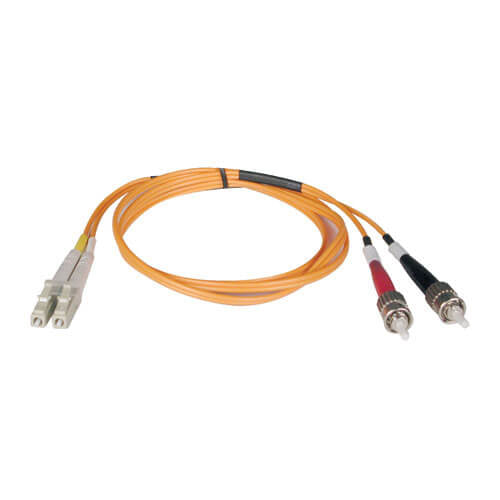

Tripp Lite's 15-meter ( 50ft ) multimode duplex fiber optic LC/ST patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on one end, and ST connectors on the other. It has a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in fiber and Fibre Channel applications. It is backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks. Constructed with 50/125 micron cable Length - 15M ( 50ft ) Use on fiber and fibre channel installations LC male to ST male connectors Higher bandwidth optimized for gigabit and 10Gbps networks Backward compatible with 62.5 micron fiber Built-in headroom for future applications



Specification:



Technical details
Jacket material	Polyvinyl chloride (PVC)
Fiber mode structure	Multi-mode
Connector 1	2x LC
Connector 2	2x ST
Cable type	OFNR
Cable length	787.4" (20 m)
Core diameter	50 µm
Cladding diameter	125 µm
Sustainability certificates	RoHS
Master (outer) case GTIN (EAN/UPC)	10037332134759
Features
Jacket material	Polyvinyl chloride (PVC)
Fiber mode structure	Multi-mode
Connector 1	2x LC
Connector 2	2x ST
Cable type	OFNR
Cable length	787.4" (20 m)
Core diameter	50 µm
Cladding diameter	125 µm
Country of origin	China
Harmonized System (HS) code	8544.70.0000
Product colour	Orange
Connector 2 gender	Male
Connector 1 gender	Male
Weight & dimensions
Cable length	787.4" (20 m)
Package width	7" (177.8 mm)
Package depth	1" (25.4 mm)
Package height	10" (254 mm)
Package weight	3.88 oz (110 g)
Packaging data
Package width	7" (177.8 mm)
Package depth	1" (25.4 mm)
Package height	10" (254 mm)
Package weight	3.88 oz (110 g)
Logistics data
Master (outer) case width	8" (203.2 mm)
Master (outer) case length	10" (254 mm)
Master (outer) case height	7" (177.8 mm)
Master (outer) case gross weight	3.2 lbs (1.45 kg)
Products per master (outer) case	10 pc(s)
