N6PATCH125PL - StarTech.com 125FT PURPLE CAT6 ETHERNET CABLE DELIVERS MULTI GIGABIT 1/2.5/5GBPS & 10GBPS UP

Make Gigabit Ethernet connections with PoE support

This Cat6 cable delivers reliable Gigabit network connections, which ensures high-performance capability for your demanding Ethernet applications.

Find the length and color you need

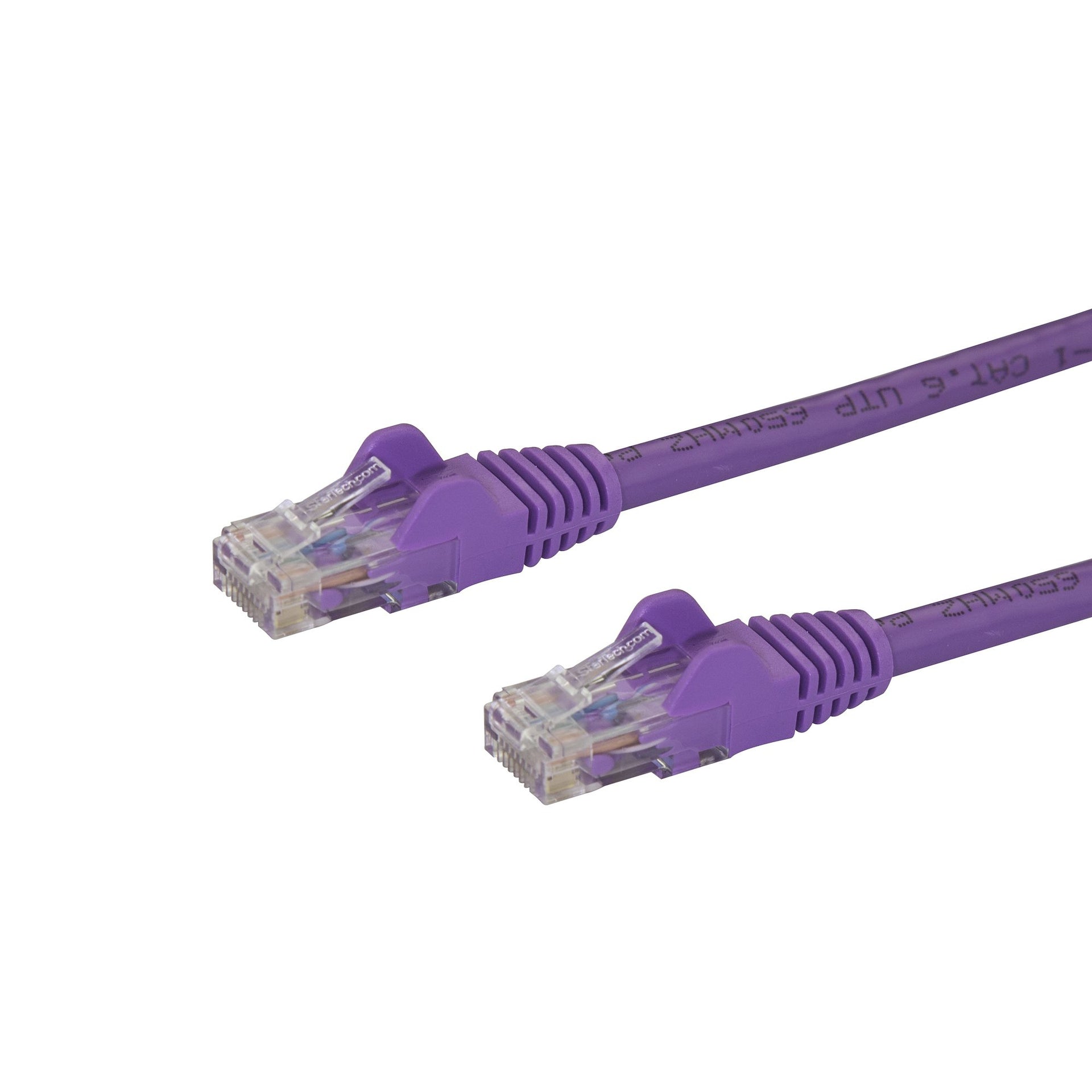

This 125-foot purple patch cable is perfect for use in network conduits and raceways. The cable is intended for longer distance applications, such as running up a post or throughout the office from a hub to a wall jack.

For easier network installations, our Cat6 patch cables are available in a wide variety of lengths and colors. This ensures you have the right size of cable available when you need it and it lets you color code your connections for a more organized setup.

Snagless RJ45 clips help protect your network connections

For trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.

The cable also features molded boots which offer connector strain relief by stopping the RJ45 connector termination points from bending at sharp angles. This reduces the risk of damage to the cable, which could decrease network connectivity and performance.

100% copper for outstanding value

Get the highest value for your cable investment with our Cat6 Ethernet cables. Each of our patch cables is manufactured using high-quality copper conductors and they are carefully constructed and tested, to keep Near-End Crosstalk (NEXT) well within acceptable limits.

24-gauge wire for high-performance network connection

Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet and 4K or 1080p video streaming, using cables that include 24 AWG copper.

50-micron gold connectors provide peak conductivity

You can rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.

The N6PATCH125PL is backed by StarTech.com’s lifetime warranty for guaranteed reliability.

The StarTech.com Advantage

- High-quality 24 AWG copper wire
- ETL verified
- HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 160'; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6; ETL Verified



Specification:



Technical details
Product colour	Red
Plug and Play	Yes
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	1500" (38.1 m)
Cable rating	CMG (CM)
Sustainability certificates	RoHS
Certificates
Certification	ETL
Features
Product colour	Red
Cable rating	CMG (CM)
Snagless cable boot	Yes
Conductor material	Copper
Frequency	650 MHz
AWG wire size	24
Plug and Play	Yes
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Certification	ETL
Cable length	1500" (38.1 m)
Ethernet interface type	Gigabit Ethernet
Power over Ethernet (PoE)	Yes
Connector 2 gender	Male
Connector 1 gender	Male
Weight & dimensions
Weight	2.87 lbs (1.3 kg)
Packaging data
Package width	13.8" (350 mm)
Package depth	18.1" (460 mm)
Package height	0.394" (10 mm)
Package weight	3.09 lbs (1.4 kg)
Quantity per pack	1 pc(s)
Logistics data
Products per master (outer) case	12 pc(s)
Master (outer) case width	14.2" (360 mm)
Master (outer) case length	15.7" (400 mm)
Master (outer) case height	10" (255 mm)
