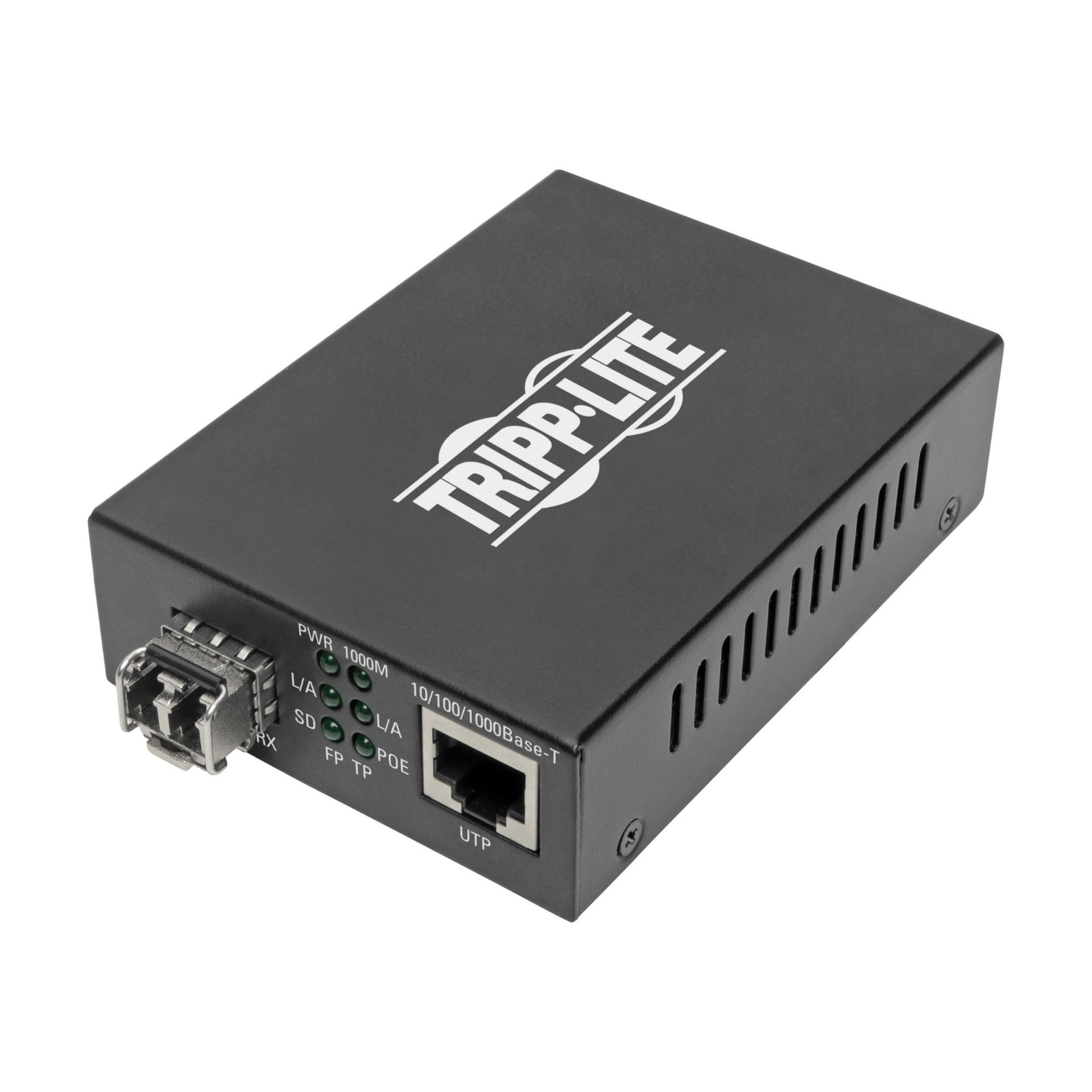

N785-INT-PLCMM1 - Tripp Lite MMF FIBER GBE MEDIA CONVERTER LC 850NM

Extends Power and Data to a PoE+ Device up to 550 m via LC Multimode Fiber Cable This economical unit converts a multimode fiber optic signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet up to 550 meters (1,804 feet) using Cat5e/6 cabling. The N785-INT-PLCMM1 is ideal for providing power and data to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. Supports Power over Ethernet to Save You Money and Give You More Installation Choices PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. Supports Auto-Sensing of Network Speed and Other Advanced Functions Monitoring and controlling your network nodes is easy with the N785-INT-PLCMM1’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIX configuration. Six LEDs indicate the converter’s power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the LC and RJ45 ports to ensure link status remains active. Completely Plug-and-Play with No Additional Software Required for Connection The compact metal converter is easy to install and set up with no software or drivers required. The included power supply comes with four international power cables (North America, Europe, United Kingdom, Australia) for connecting to an AC outlet with no computer or other signal source needed.



Specification:



Network
Fiber optic connector	SC
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Duplex system	Full, Half
Auto MDI/MDI-X	No
Maximum data transfer rate	1000 Mbit/s
Technical details
Wavelength	1310 nm
Maximum transfer distance	78740.2" (2000 m)
Fiber mode structure	Multi-mode
Internal	No
Sustainability compliance	Yes
Sustainability certificates	CE, REACH, RoHS, UKCA, WEEE
Master (outer) case GTIN (EAN/UPC)	10037332273168
Harmonized System (HS) code	8517.62.0090
Ports & interfaces
Power over Ethernet (PoE) ports quantity	1
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
DC-in jack	Yes
Indication
LED indicators	Yes
Performance
Wavelength	1310 nm
Maximum transfer distance	78740.2" (2000 m)
Fiber mode structure	Multi-mode
Design
Country of origin	China
LED indicators	Yes
Product colour	Black
Internal	No
Power
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	30 W
Input voltage	100 - 240 V
Input current	1.5 A
Output voltage	48 V
Output current	1.25 A
External power adapter	Yes
AC input frequency	50 - 60 Hz
Packaging content
Package type	Box
AC adapter included	Yes
Manual	Yes
Colour
Product colour	Black
Weight & dimensions
Width	2.76" (70 mm)
Depth	3.74" (95 mm)
Height	0.984" (25 mm)
Package depth	9.8" (248.9 mm)
Package width	8.4" (213.4 mm)
Package height	4.2" (106.7 mm)
Package weight	2.8 lbs (1.27 kg)
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging data
Package type	Box
Package depth	9.8" (248.9 mm)
Package width	8.4" (213.4 mm)
Package height	4.2" (106.7 mm)
Package weight	2.8 lbs (1.27 kg)
Logistics data
Master (outer) case width	10.6" (269.2 mm)
Master (outer) case length	17.6" (447 mm)
Master (outer) case height	22.8" (579.1 mm)
Master (outer) case gross weight	30.2 lbs (13.7 kg)
Products per master (outer) case	10 pc(s)
