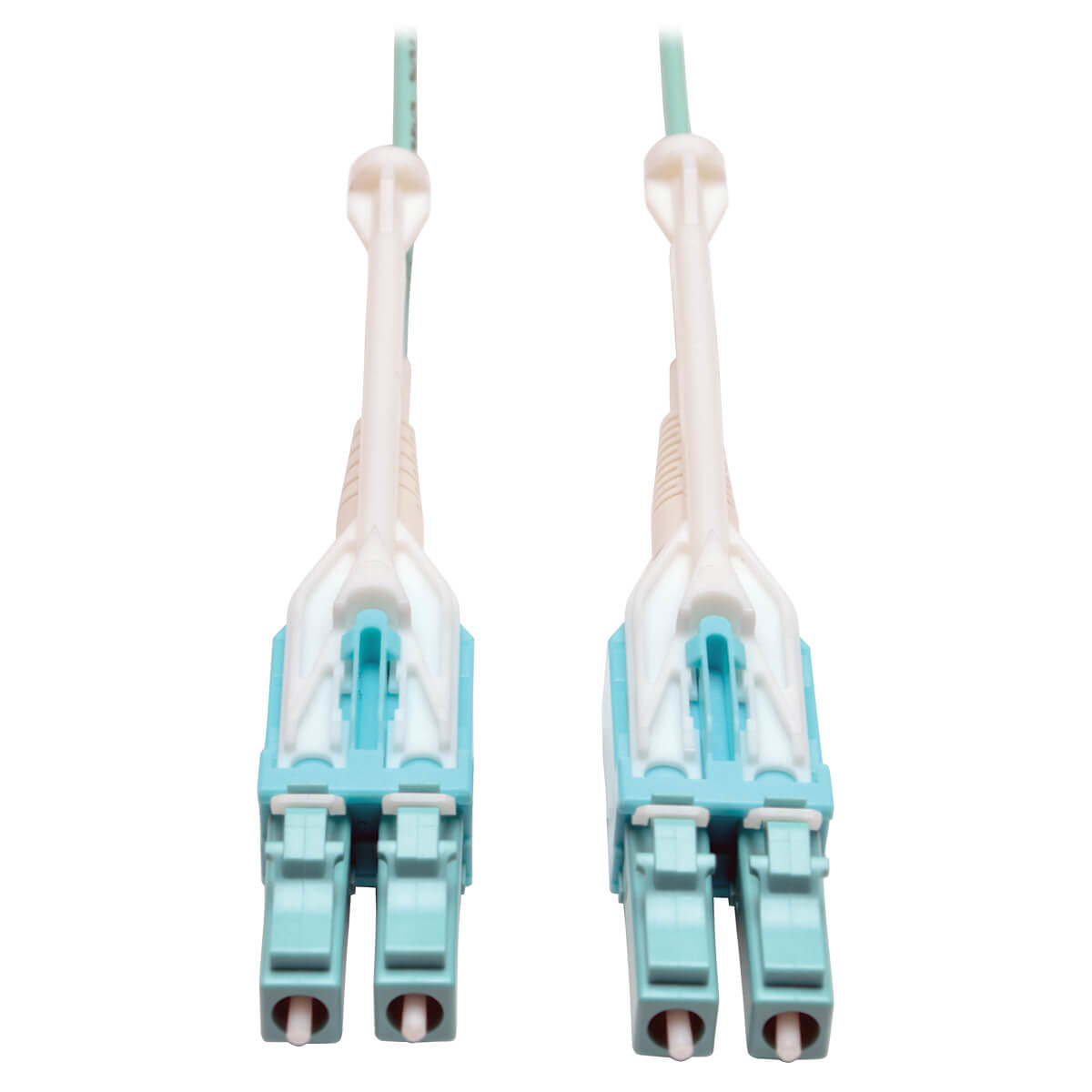

N820-05M-T - Tripp Lite 5M 10GB 50/125 OM3 FIBER CABLE PUSH/PULL TABS LC/LC AQUA 5 METER

5M ( 16-ft ) LC/LC, OM3 rated Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand without needing additional tools Slim uniboot design saves space and makes cables easier to manage Premium-grade ceramic ferrule designed specifically for 10GbE and faster applications Sturdy plastic housing for long-lasting durability 10GbE speed to 300 meters @850nm Use with VCSEL and LED laser light sources High-Speed, High-Bandwidth, Low-Cost Backward compatible with legacy LAN's Ideal for Fibre Channel (SAN) applications IEEE 802.3ae and TIA LOMMF compliant



Specification:



Technical details
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	LC
Cable length	236.2" (6 m)
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Sustainability certificates	RoHS
Master (outer) case GTIN (EAN/UPC)	10037332142044
Features
Fibre optic type	OM3
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	LC
Cable length	236.2" (6 m)
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Data transfer rate	10 Gbit/s
Country of origin	China
Wavelengths supported	850 nm
Harmonized System (HS) code	85447000
Product colour	Blue
Connector 2 gender	Male
Connector 1 gender	Male
Data transmission
Data transfer rate	10 Gbit/s
Weight & dimensions
Cable length	236.2" (6 m)
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	1.76 oz (50 g)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	1.76 oz (50 g)
Logistics data
Master (outer) case width	5.9" (149.9 mm)
Master (outer) case length	4" (101.6 mm)
Master (outer) case height	7.3" (185.4 mm)
Master (outer) case gross weight	20.8 oz (590 g)
Products per master (outer) case	10 pc(s)
Other features
Core / cladding diameter	50/125 µm
