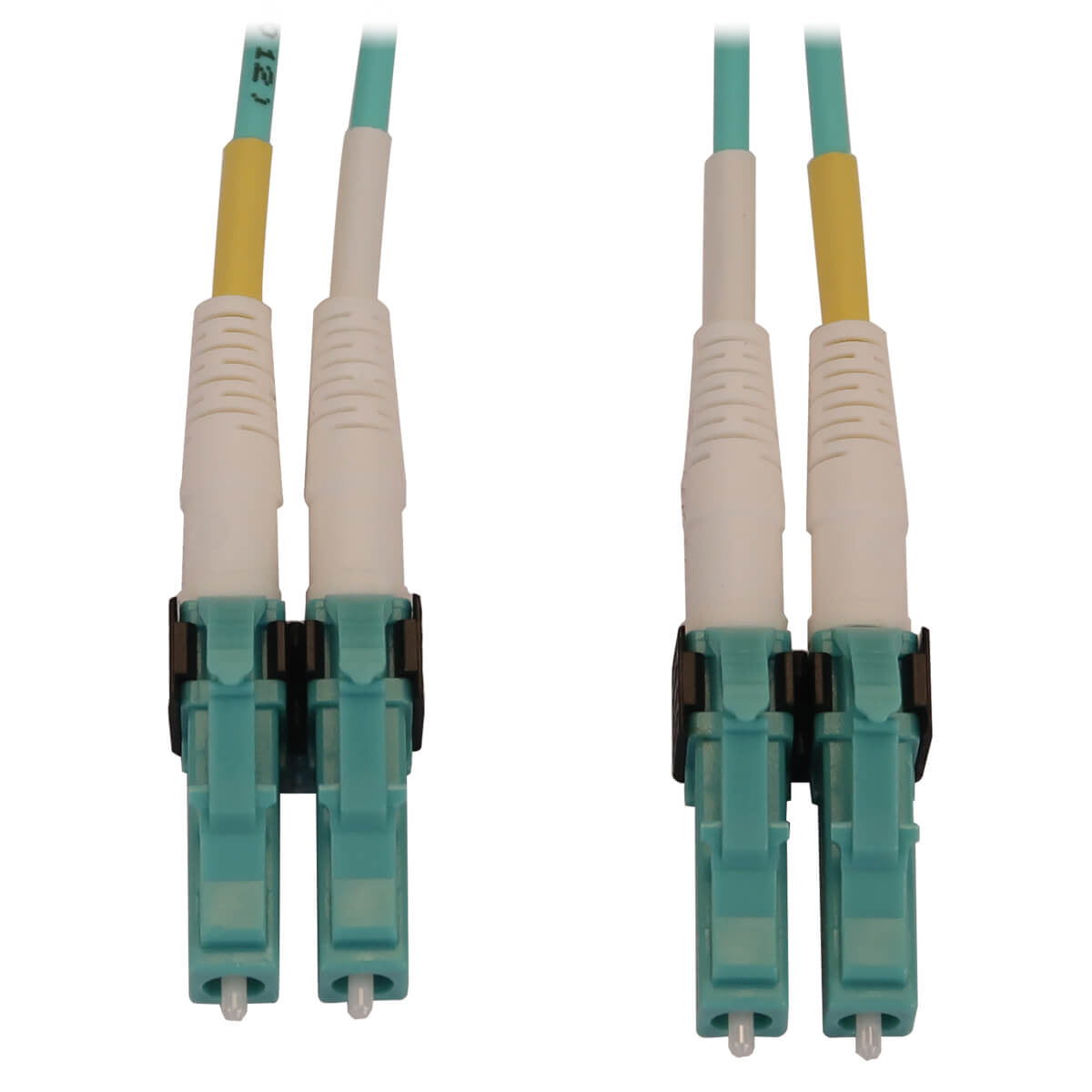

N820X-01M-OM4 - Tripp Lite FIBER CABLE 400G MMF OM4 LC-PC M/M 1M

400 GbE Cable Supports Higher Bandwidths Needed for Next-Generation Data Networking As the amount of traffic in data networks grows, so does the need for next-gen devices and fiber cables to support higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This multimode 50/125 OM4 cable is an ideal choice for 400G Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb. Switchable LC Connectors Allow Easy Polarity Conversions The switchable LC duplex connectors on both ends of the cable let you easily switch the fiber polarity without tools or the need to re-terminate the connectors. This can allow for stacked LC adapters, eliminating the need for dual zip cords and reducing overall bulk cabling in high-density situations. Just remove the clipped piece holding the connector ends together on each side, identify the send and receive ends, and switch the polarity of those ends based on your application needs. Aqua-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime The OM4-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.



Specification:



Technical details
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	LC
Cable type	OFNR
Cable length	78.7" (2 m)
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Insertion loss	0.2 dB
Sustainability compliance	Yes
Sustainability certificates	RoHS, UL ECOLOGO, CE, REACH
Master (outer) case GTIN (EAN/UPC)	10037332271591
Features
Bending radius	0.787" (2 cm)
Fibre optic type	OM3
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	LC
Cable type	OFNR
Cable length	78.7" (2 m)
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Insertion loss	0.2 dB
Data transfer rate	400 Gbit/s
Country of origin	China
Ethernet interface type	10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet
Wavelengths supported	850,1300 nm
Harmonized System (HS) code	8544.70.0000
Product colour	Aqua color, Beige
Connector 2 gender	Male
Connector 1 gender	Male
Connector polish type	PC
Data transmission
Data transfer rate	400 Gbit/s
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Bending radius	0.787" (2 cm)
Cable length	78.7" (2 m)
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	1.06 oz (30 g)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	1.06 oz (30 g)
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	7.3" (185.4 mm)
Master (outer) case length	5.9" (149.9 mm)
Master (outer) case height	4" (101.6 mm)
Master (outer) case gross weight	12 oz (340 g)
Products per master (outer) case	10 pc(s)
Quantity per pack	1 pc(s)
