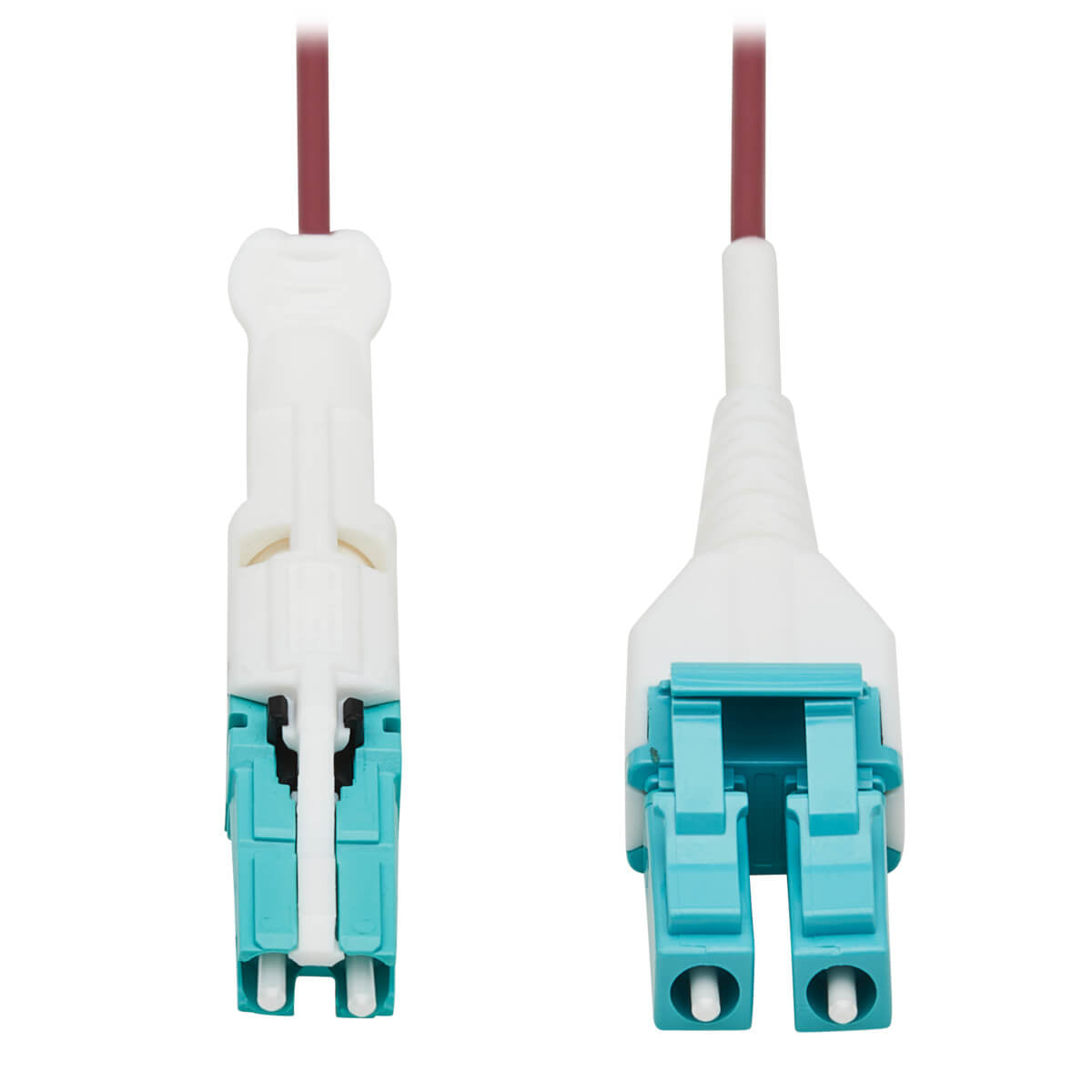

N822L-05M-MG - Tripp Lite 400G DUPLEX MULTIMODE 50/125 OM4 FIBER OPTIC CABLE (CS-PC/LC-PC), ROUND LSZH JAC

400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data Networking As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This duplex multimode 50/125 OM4 cable is an ideal choice for 400G Ethernet applications up to 100 meters (at 850 nm). It is also backward compatible with 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb. Compact CS Connector Designed for the Latest QSFP-DD Transceivers The CS end is 40 percent smaller than a standard LC connector, making it compatible with the latest 400G QSFP-DD transceivers and an excellent solution for high-density network applications. A push/pull tab allows dense vertical stacking in switches or patch panels where space is at a premium and makes the cable easy to install or remove with one hand. Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime The OM4-rated cable has a magenta jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.



Specification:



Technical details
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	CS/UPC
Connector 2	LC/PC
Cable length	393.7" (10 m)
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Insertion loss	0.2 dB
Sustainability certificates	REACH, RoHS
Doesn't contain	Halogen
Master (outer) case GTIN (EAN/UPC)	10037332258103
Features
Bending radius	0.787" (2 cm)
Fibre optic type	OM4
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	CS/UPC
Connector 2	LC/PC
Cable length	393.7" (10 m)
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Insertion loss	0.2 dB
Data transfer rate	400000 Gbit/s
Country of origin	China
Harmonized System (HS) code	8544.70.0000
Product colour	Magenta
Connector 2 gender	Male
Connector 1 gender	Male
Data transmission
Data transfer rate	400000 Gbit/s
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Bending radius	0.787" (2 cm)
Cable length	393.7" (10 m)
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	1.76 oz (50 g)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	1.76 oz (50 g)
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	5.9" (149.9 mm)
Master (outer) case length	6.1" (154.9 mm)
Master (outer) case height	7.3" (185.4 mm)
Master (outer) case gross weight	19.8 oz (560 g)
Products per master (outer) case	10 pc(s)
Quantity per pack	1 pc(s)
