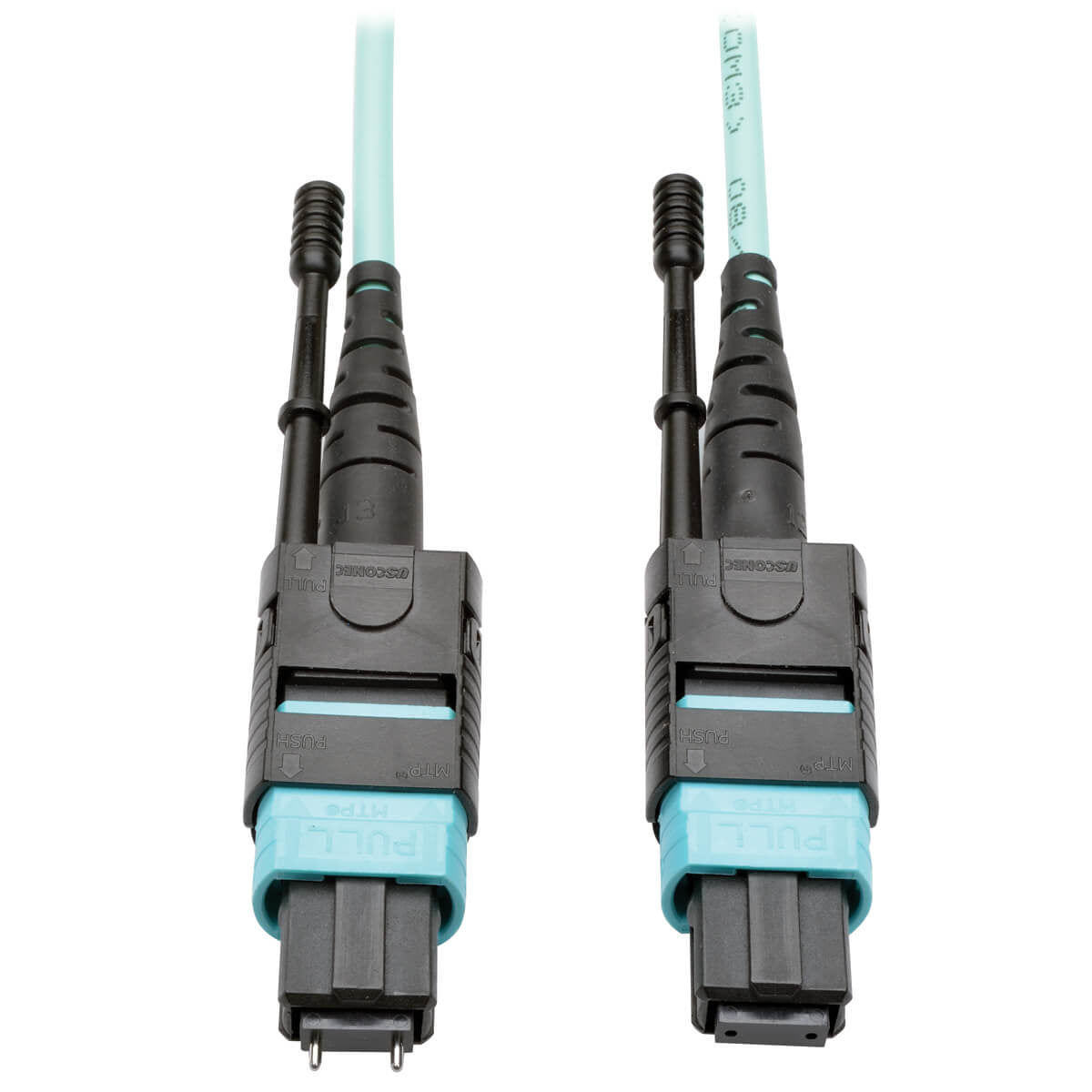

N842-05M-12-MF - Tripp Lite 5M MTP/MTO MULTIMODE CABLE 12 FIBER 40 GBE OM3 AQUA M/F 16FT 5 METER

The N842-05M-12-MF MTP/MPO Multimode Patch Cable is a 5-meter patch cable that supports 40 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers. With one male and one female MTP/MPO connector, this OM3-rated multimode fiber optic cable allows IT professionals to extend the length of their connection and eliminates the need for long fan-out cables or individual long duplex cable runs. MTP / MPO Extension cables used with Tripp Lite High Density patching systems, in particular MTP/MPO Feed-Through Cassettes, such as Tripp Lite N484-12M12. The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up circuit card and rack space for other cables. The cable has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. Backward compatible with existing 50/125 fiber, the aqua-colored N842-05M-12-MF has 50/125 duplex (zipcord) fiber made from glass, as well as a plenum-rated jacket for connecting high-speed network components in ceilings, walls and ducts. The laser-optimized multimode fiber (LOMMF) cable meets the most current industry standards, including IEEE 802.3ae and TIA LOMMF. OM3-Rated for 10 Gb Ethernet Applications Designed to extend high-density connections between network equipment in telecommunication rooms and data centers Supports speeds up to 40 GbE Provides 3x more bandwidth than conventional 62.5 µm multimode fiber Backward compatible with existing 50/125 fiber Meets current IEEE 802.3ae and TIA LOMMF standards MTP/MPO Connectors with Push/Pull Tabs 12-fiber male/female connectors 12 times denser than SC connectors Push/pull tab connectors easy to install and remove with one hand 100% tested for low insertion loss and back reflection Error-Free Signal Transfer 50/125 duplex glass fiber construction Plenum-rated jacket perfect for ceilings, walls and ducts Aqua-colored for identification as a 10 Gb cable Jacket features serial number for quality control and traceability



Specification:



Technical details
Fiber mode structure	Multi-mode
Connector 1	MTP
Connector 2	MTP
Cable length	393.7" (10 m)
Core diameter	50 µm
Cladding diameter	125 µm
Sustainability certificates	RoHS
Master (outer) case GTIN (EAN/UPC)	10037332191073
Features
Fibre optic type	OM3
Fiber mode structure	Multi-mode
Connector 1	MTP
Connector 2	MTP
Cable length	393.7" (10 m)
Core diameter	50 µm
Cladding diameter	125 µm
Data transfer rate	100 Gbit/s
Country of origin	China
Harmonized System (HS) code	8544.70.0000
Product colour	Black, Blue
Connector 2 gender	Female
Connector 1 gender	Male
Data transmission
Data transfer rate	100 Gbit/s
Weight & dimensions
Cable length	393.7" (10 m)
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	3.17 oz (90 g)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	3.17 oz (90 g)
Logistics data
Master (outer) case width	7.3" (185.4 mm)
Master (outer) case length	5.9" (149.9 mm)
Master (outer) case height	4" (101.6 mm)
Master (outer) case gross weight	21.2 oz (600 g)
Products per master (outer) case	10 pc(s)
