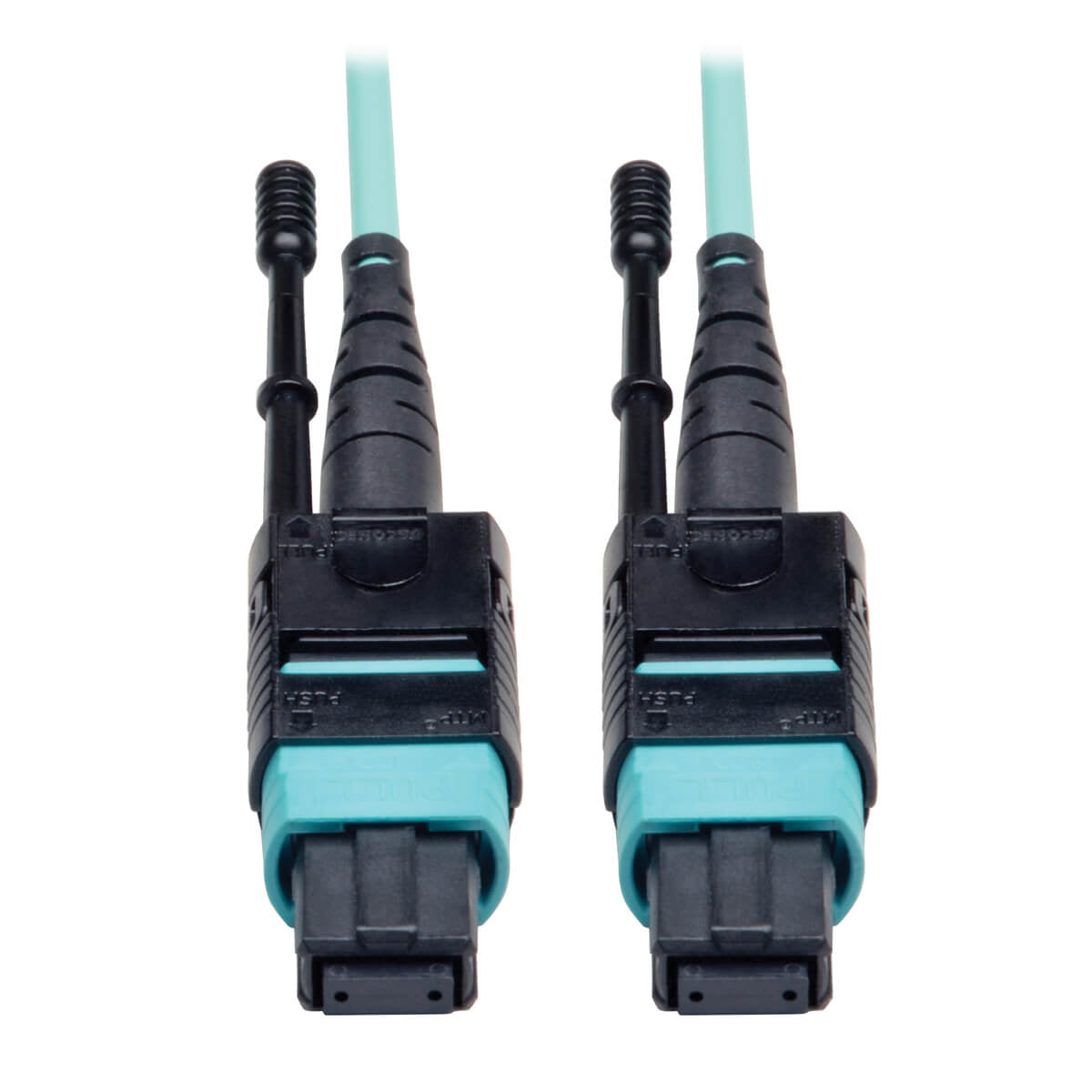

N844-05M-12-P - Tripp Lite 5M MTP/MPO PATCH CABLE 12 FIBER 40GBE AQUA OM3 PLENUM 16FT 5 METER

MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand 12 times the density of SC style connectors High Density design cuts down on installation costs 50/125 OM3 Rated Multimode Fiber, 850nm Plenum rated jacket Unique cable ID label for Quality Control and Traceability Each cable 100% tested for low insertion loss and back reflection Test data supplied with each cable Custom lengths available



Specification:



Technical details
Connector 1	MPO/MTP
Connector 2	LC
Cable length	196.9" (5 m)
Core diameter	50 µm
Cladding diameter	125 µm
Sustainability certificates	RoHS
Master (outer) case GTIN (EAN/UPC)	10037332173789
Features
Connector 1	MPO/MTP
Connector 2	LC
Cable length	196.9" (5 m)
Core diameter	50 µm
Cladding diameter	125 µm
Data transfer rate	100 Gbit/s
Country of origin	China
Harmonized System (HS) code	8544.70.0000
Product colour	Blue
Connector 2 gender	Male
Connector 1 gender	Male
Data transmission
Data transfer rate	100 Gbit/s
Weight & dimensions
Cable length	196.9" (5 m)
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	3.17 oz (90 g)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	3.17 oz (90 g)
Logistics data
Master (outer) case width	7.1" (180.3 mm)
Master (outer) case length	7.1" (180.3 mm)
Master (outer) case height	3.9" (99.1 mm)
Master (outer) case gross weight	2.29 lbs (1.04 kg)
Products per master (outer) case	10 pc(s)
