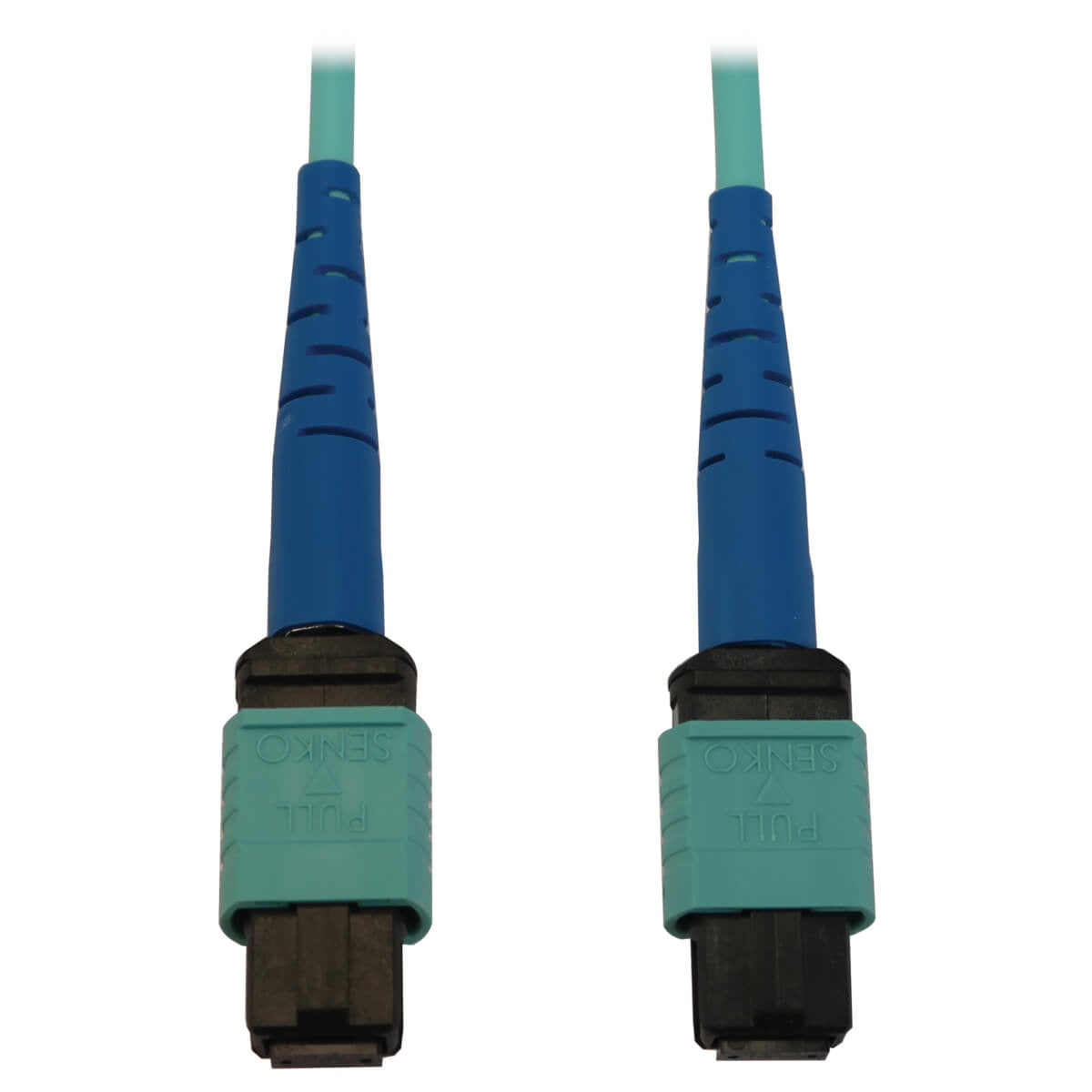

N846B-20M-24-P - Tripp Lite FIBER CABLE MMF 24F MTP/MPO-PC F/F 20M

40/100/400 GbE Cable Supports Higher Bandwidths for High-Density Data Networking The N846B-20M-24-P is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM3 cable is an ideal choice for 400 Gb Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 10 Gb, 25 Gb, 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb. 100% Tested for Low Insertion Loss and Attenuation Loss The cable is tested for low insertion loss on the factory-terminated 24-fiber MTP/MPO connectors and attenuation loss that meets or exceeds current standards. The connectors’ slim boots allow easy one-handed installation and removal of the cable. Aqua-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime The OM3-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.



Specification:



Technical details
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	MPO/MTP
Connector 2	MPO/MTP
Cable type	OFNR
Cable length	984.3" (25 m)
Core diameter	50 µm
Cladding diameter	125 µm
Insertion loss	0.35 dB
Sustainability compliance	Yes
Sustainability certificates	RoHS, UL ECOLOGO, CE, REACH
Master (outer) case GTIN (EAN/UPC)	10037332271768
Features
Bending radius	0.787" (2 cm)
Fibre optic type	OM3
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	MPO/MTP
Connector 2	MPO/MTP
Cable type	OFNR
Cable length	984.3" (25 m)
Core diameter	50 µm
Cladding diameter	125 µm
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-10 - 60 °C
Insertion loss	0.35 dB
Data transfer rate	400 Gbit/s
Country of origin	China
Ethernet interface type	40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet
Wavelengths supported	850,1300 nm
Harmonized System (HS) code	8544.70.0000
Product colour	Aqua color, Black, Blue
Connector 2 gender	Female
Connector 1 gender	Female
Connector polish type	PC
Data transmission
Data transfer rate	400 Gbit/s
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-10 - 60 °C
Weight & dimensions
Bending radius	0.787" (2 cm)
Cable length	984.3" (25 m)
Package width	10.5" (266.7 mm)
Package depth	0.5" (12.7 mm)
Package height	1" (25.4 mm)
Cable diameter	0.118" (3 mm)
Package weight	8.82 oz (250 g)
Packaging data
Package width	10.5" (266.7 mm)
Package depth	0.5" (12.7 mm)
Package height	1" (25.4 mm)
Package weight	8.82 oz (250 g)
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	14.8" (375.9 mm)
Master (outer) case length	6.1" (154.9 mm)
Master (outer) case height	5.9" (149.9 mm)
Master (outer) case gross weight	5.49 lbs (2.49 kg)
Products per master (outer) case	10 pc(s)
Quantity per pack	1 pc(s)
