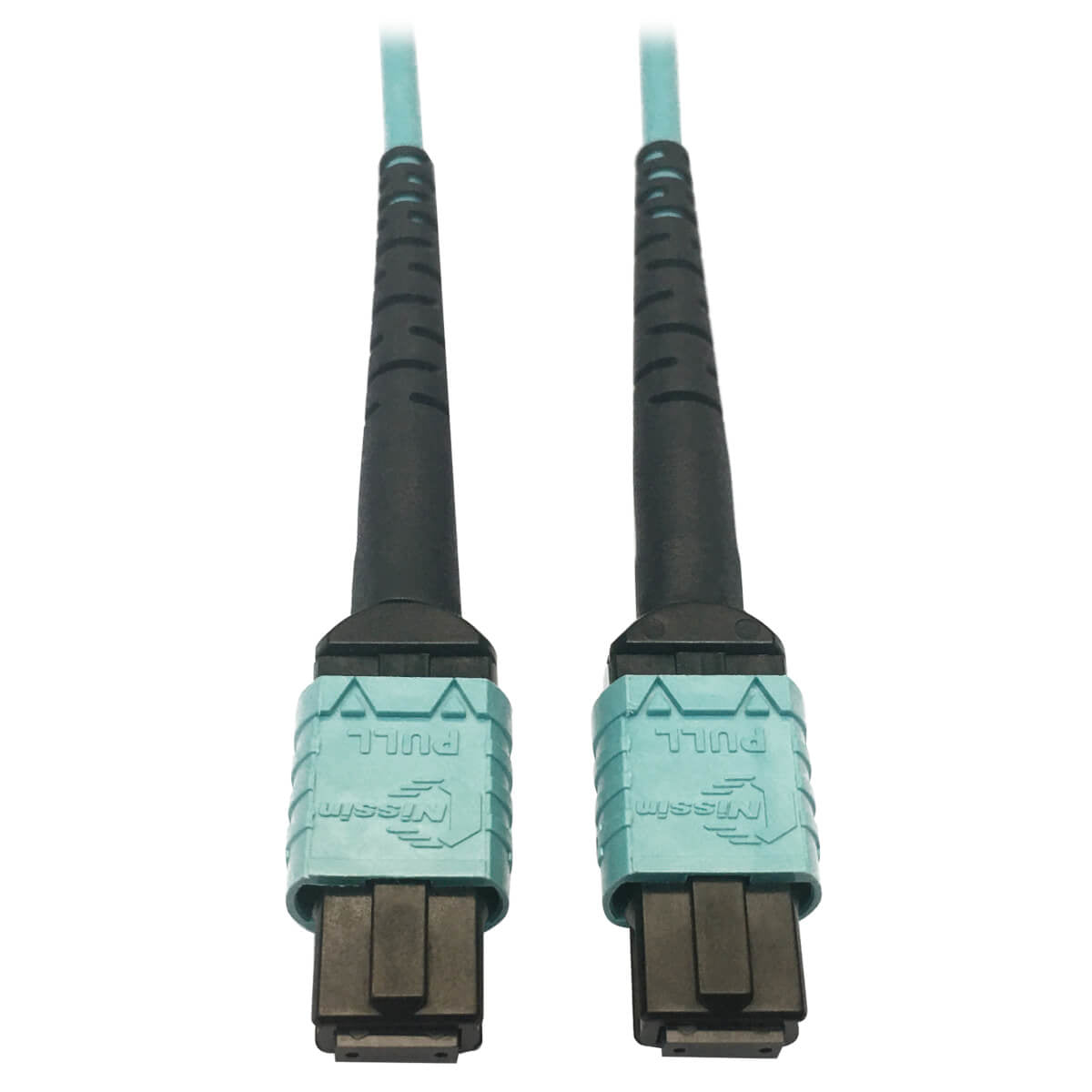

N846D-01M-24AAQ - Tripp Lite MMF FIBER CABLE 24F MTP/MPO-PC F/F 1M

400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data and Voice Networking As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This multimode 50/125 OM4 cable is an ideal choice for 400G Ethernet applications up to 100 meters (at 850 nm). It has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards. 24-Fiber MTP/MPO Connectors Designed for the Latest QSFP-DD Transceivers The 24F MPO connectors have a wide parallel optical interface for use with the latest 400G QSFP-DD transceivers, making this cable an excellent solution for your high-density network application. The connectors are the same size as standard SC connectors, but much denser, allowing vertical stacking in switches or patch panels where space is at a premium. Pull tabs make the cable easy to install or remove with one hand. Aqua Jacket Helps Avoid Misidentification That Can Cause Costly Downtime The OM4-rated cable has an aqua jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The three-millimeter ruggedized plenum-rated jacket has low smoke and flame characteristics, making it suitable for premise applications in ceilings, walls and ducts.



Specification:



Technical details
Fiber mode structure	Multi-mode
Connector 1	MTP
Connector 2	MTP
Cable type	OFNP
Cable length	39.4" (1 m)
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Insertion loss	0.35 dB
Sustainability certificates	REACH, RoHS
Master (outer) case GTIN (EAN/UPC)	10037332258448
Features
Bending radius	0.787" (2 cm)
Fibre optic type	OM4
Fiber mode structure	Multi-mode
Connector 1	MTP
Connector 2	MTP
Cable type	OFNP
Cable length	39.4" (1 m)
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Insertion loss	0.35 dB
Data transfer rate	400000 Gbit/s
Country of origin	China
Harmonized System (HS) code	8544.70.0000
Product colour	Aqua color
Connector 2 gender	Female
Connector 1 gender	Female
Data transmission
Data transfer rate	400000 Gbit/s
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Bending radius	0.787" (2 cm)
Cable length	39.4" (1 m)
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	1.41 oz (40 g)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	1.41 oz (40 g)
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	7.3" (185.4 mm)
Master (outer) case length	5.9" (149.9 mm)
Master (outer) case height	4" (101.6 mm)
Master (outer) case gross weight	16.9 oz (480 g)
Products per master (outer) case	10 pc(s)
Quantity per pack	1 pc(s)
