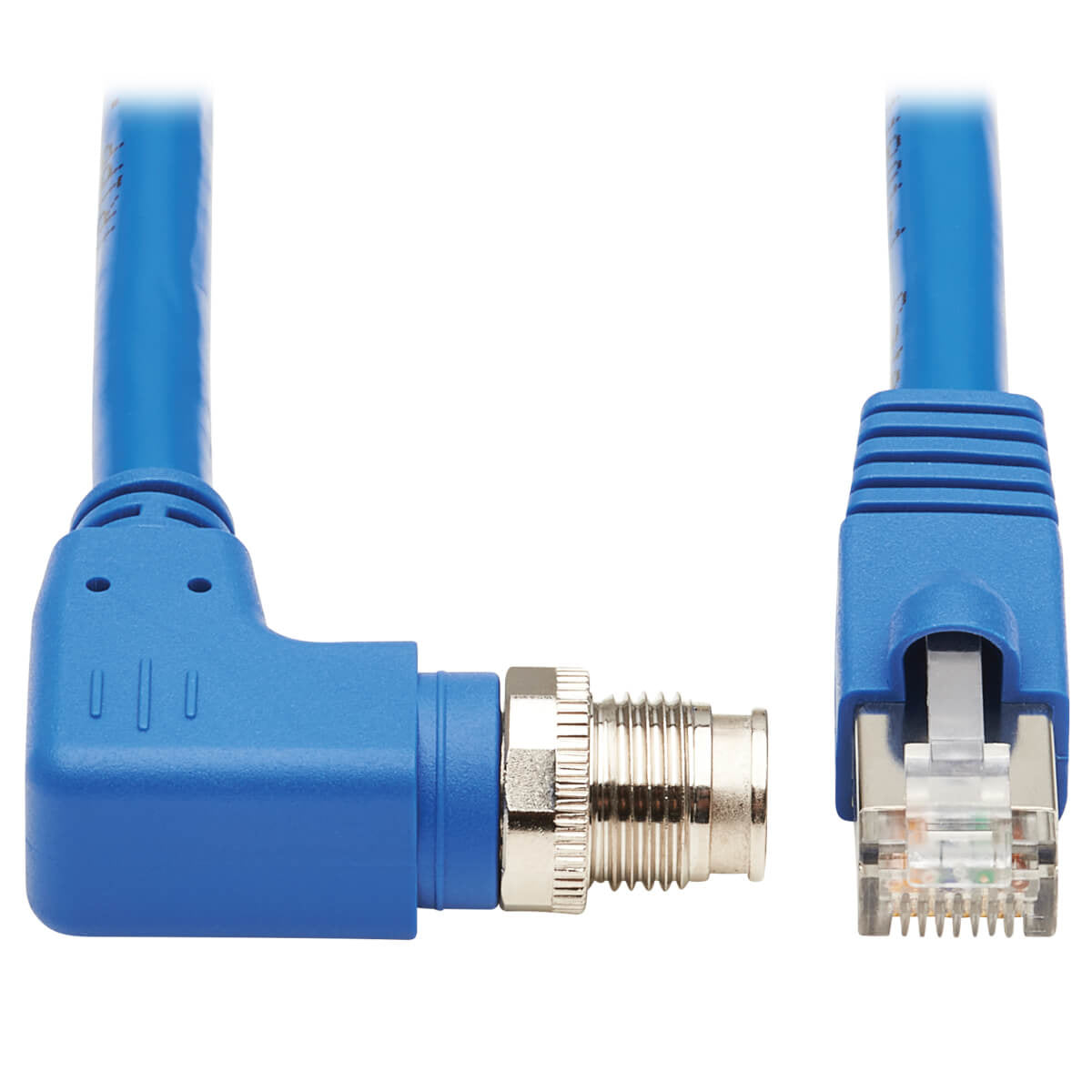

NM12-6A4-01M-BL - Tripp Lite ETHERNET CABLE M12 X-CODE RA RJ45 1M

Cat6a M12 Cable Recommended for Industrial and Other Harsh Environments This M12 X-Code cable connects 10 GbE networks in wet/humid environments, places subject to vibration and other areas where protection from harsh elements is essential, such as factories, warehouses, recycling plants, airports, railways and machine shops. The circular M12 connector with 12-millimeter locking thread is especially designed for washdown and corrosive applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics, transportation and food/beverage facilities. IP68 Rating Denotes Resistance to Dust and Water The IP68 rating means the M12 connector end is not only 100% protected against dust, but also able to endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance. Supports Power over Ethernet to Save You Money and Give You More Installation Choices Because this Cat6a cable supports high-power 60W PoE, it can supply the power to operate compatible data, voice, security and audio/video PoE devices, such as surveillance cameras, VoIP telephones and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device, as well as installing separate power and data cables. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. CMR-LP Certified for Cable Installations with Increased Power Levels UL's Limited Power (LP) certification indicates the NM12-6A4-01M-BL has been evaluated to handle the marked current under installation scenarios without exceeding the temperature rating of the cable. This CMR-LP-certified cable provides a simple way to prepare installations for increased power levels without having to worry about susceptible issues caused by excessive heat. Right-Angle Plug Makes Connecting in Tight Spaces Easier The M12 connector is designed at a space-saving right angle, making it easy to install in confined spaces, such as a crowded equipment rack or a network device located flush against a wall. The right-angle construction also relieves strain on the cable and connector and prevents the cable from bending awkwardly. Colored Blue to Avoid Misidentification That Can Cause Costly Downtime This Cat6a F/UTP copper cable features a blue PVC jacket that allows easy, fast identification in field devices, controllers and switches and helps prevent the cable from becoming inadvertently disconnected.



Specification:



Technical details
Product colour	Blue
Plug and Play	Yes
Cable standard	Cat6a
Cable shielding	F/UTP (FTP)
Connector 1	M12
Connector 2	RJ-45
Cabling technology	10GBase-T
Networking standards	IEEE 802.3bt
Jacket material	Polyvinyl chloride (PVC)
Cable length	78.7" (2 m)
Country of origin	Taiwan
Sustainability compliance	Yes
Sustainability certificates	REACH, RoHS
Certificates
Certification	IP68, UL-CMP
Features
Product colour	Blue
Snagless cable boot	Yes
Country of origin	Taiwan
Conductor material	Copper
AWG wire size	23
Plug and Play	Yes
Cable standard	Cat6a
Cable shielding	F/UTP (FTP)
Connector 1	M12
Connector 2	RJ-45
Cabling technology	10GBase-T
Networking standards	IEEE 802.3bt
Jacket material	Polyvinyl chloride (PVC)
Certification	IP68, UL-CMP
Cable length	78.7" (2 m)
Ethernet interface type	10 Gigabit Ethernet
Cable shape	Round
Harmonized System (HS) code	8544.42.2000
Connector 2 gender	Male
Connector 1 gender	Male
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Outer diameter	0.287" (7.3 mm)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	4.59 oz (130 g)
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case gross weight	2.8 lbs (1.27 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case width	16" (406.4 mm)
Master (outer) case length	1" (25.4 mm)
Master (outer) case height	18" (457.2 mm)
Master (outer) case GTIN (EAN/UPC)	10037332265682
