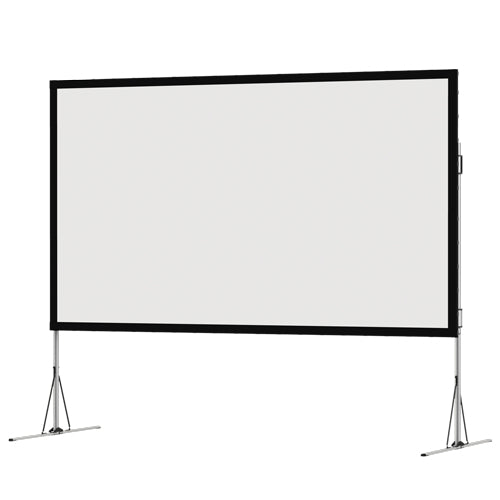

NSCV58X104 - Da-Lite FFNXT ST COM 58X104(147X264)VA DV

New Extrusion - More aluminum means a slightly larger frame and more strength - Channels give additional strength where you need it and prevent bowing - Shape improves aesthetic of frame and streamlines accessories by centralizing the location of all attachments - Fly any model with fly kit New Hinge - Internal hinge improves durability and aesthetic - Increased strength in design that uses epoxy instead of exposed rivets - Push Button release for easy tear down New Corner - Push Button release for easy tear down - Fixed corner design improves durability - Welded insert for additional reinforced strength - Surface alignment that is the same every time New Legs - No speedy cranks. Easily adjust screen height while screen is assembled and upright with micro-tooth height adjustment - Easily add height adjustment sections when additional height is needed - Latch-attach to frame - Independently leveling feet for uneven floors New Reinforced Case - Reinforced for increased strength - Updated internal organization to protect surface and components - New design featuring 4 wheels - Designed to be stored upright or stacked horizontally New Surface Binding - New vinyl binding design replaces a woven binding and allows for easier attachment and flexibility - Smaller 1” white binding wrap-around option for borderless viewing area - RF Weld for clean lines - Easy attachment with new clip design



Specification:



Performance
Native aspect ratio	16:9
Screen surface	Dual Vision
Viewable screen height (H)	79.1" (2.01 m)
Viewable screen width (W)	140.2" (3.56 m)
Overall screen size (Height x Width)	85 x 146.1" (216 x 371 cm)
Diagonal (metric)	159.1" (404 cm)
Diagonal	159"
Format	HDTV
Design
Easy to install	Yes
Product colour	White
Case colour	Black
Mounting type	Floor
Packaging data
Package width	15" (380 mm)
Package height	11.8" (300 mm)
Package depth	66.9" (1700 mm)
Package weight	99.2 lbs (45 kg)
