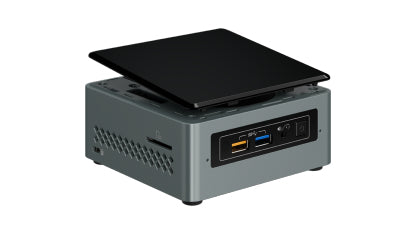

NUC6CAYH - Intel INTEL NUC NEXT UNIT OF
NUC6CAYH - Intel INTEL NUC NEXT UNIT OF
SKU:NUC6CAYH
Regular price
$540.76 USD
Regular price
Sale price
$540.76 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Intel® NUC Kit NUC6CAYH built with a quad-core Intel® Celeron® processor, delivers cost-efficient Intel-level performance in a fully customizable kit that makes it perfect for basic 4K digital signage, PC replacement, or thin client. This kit gives you the choice to install the OS, memory, and hard drive you want so you can create the exact system that you need. New features include a dual-array front mic and a multi-color LED ring so you can customize your NUC with the look you want. And there’s 4K display support via a full-sized HDMI 2.0 port, so you can have 4K digital signs at a cost-effective price point.
Specification:
| Motherboard | |
|---|---|
| Motherboard form factor | UCFF |
| Processor socket | BGA 1090 |
| Number of processors supported | 1 |
| Processor | |
| Thermal Design Power (TDP) | 10 W |
| L3 cache | 4 MB |
| Built-in processor | Yes |
| Processor model | J4005 |
| Processor boost frequency | 2.7 GHz |
| Processor threads | 2 |
| Processor frequency | 2 GHz |
| Processor socket | BGA 1090 |
| Processor lithography | 14 nm |
| Processor cores | 2 |
| Processor family | Intel® Celeron® |
| Number of processors supported | 1 |
| Processor manufacturer | Intel |
| Processor codename | Gemini Lake |
| CPU configuration (max) | 1 |
| Memory bandwidth supported by processor (max) | 38.4 GB/s |
| Processor cache | 4 MB |
| Memory | |
| Memory voltage | 1.2 V |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Memory bandwidth (max) | 38.4 GB/s |
| ECC | No |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2400 MHz |
| Maximum internal memory | 8 GB |
| Non-ECC | Yes |
| Removable memory card slot | SDXC with UHS-I support |
| Number of DIMM slots | 2 |
| Video | |
| On-board graphics card | No |
| Graphics card family | Intel |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 1 |
| Compatible memory cards | SDXC |
| Card reader integrated | Yes |
| Graphics | |
| Number of displays supported | 2 |
| On-board graphics card | No |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics 600 |
| Audio | |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Audio output channels | 7.1 channels |
| Network | |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 9462 |
| Ports & interfaces | |
| Number of SATA III connectors | 1 |
| Infrared data port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI version | 2.0a |
| S/PDIF out port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 6 |
| Graphics output | 2x HDMI 2.0a |
| Expansion slots | |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x2, 1x2+2x1, 1x4, 2x1, 4x1 |
| Design | |
| Motherboard form factor | UCFF |
| Product type | Mini PC barebone |
| ARK ID | 126135 |
| On/off switch | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Chassis type | UCFF |
| Product series | Intel® NUC Kit with Intel® Celeron® Processors |
| Product codename | JUNE CANYON |
| Status | Launched |
| Performance | |
| Motherboard form factor | UCFF |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Number of displays supported | 2 |
| Trusted Platform Module (TPM) | No |
| Processor socket | BGA 1090 |
| Operating system installed | No |
| Number of processors supported | 1 |
| Compatible operating systems | Windows 11 (64-bit), Windows 10 (64-bit) |
| Audio output channels | 7.1 channels |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Harmonized System (HS) code | 84713000 |
| Export Control Classification Number (ECCN) | 5A992C |
| Consumer infrared Rx sensor | Yes |
| Supported RAID configuration | N/A |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Windows 11 (64-bit), Windows 10 (64-bit) |
| Processor special features | |
| Intel® Smart Response Technology | No |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Embedded options available | No |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® vPro™ Platform Eligibility | No |
| Colour | |
| Product colour | Black |
| Power | |
| DC input voltage | 12 - 19 V |
| AC adapter output voltage | 12-19 V |
| Power supply type | External AC adapter |
| Technical details | |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Embedded options available | No |
| Trusted Platform Module (TPM) | No |
| Processor cores | 2 |
| Chassis type | UCFF |
| ARK ID | 126135 |
| Internal I/O | |
| Number of SATA connectors | 1 |
| Indication | |
| LED indicators | Yes |
| Management features | |
| On/off switch | Yes |
| Features | |
| Number of displays supported | 2 |
| Weight & dimensions | |
| Width | 4.53" (115 mm) |
| Depth | 4.37" (111 mm) |
| Height | 2.01" (51 mm) |
| Packaging content | |
| Processor included | Intel® Celeron® J4005 Processor (4M Cache, up to 2.70 GHz) |
| Other features | |
| DC input voltage | 12 - 19 V |
| Embedded options available | No |
| Number of SATA connectors | 1 |
| HDD size | 2.5" |
| Chassis type | UCFF |
| Processor ARK ID | 128992 |
| Additional headers | CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL |
| Launch date | Q1'18 |
