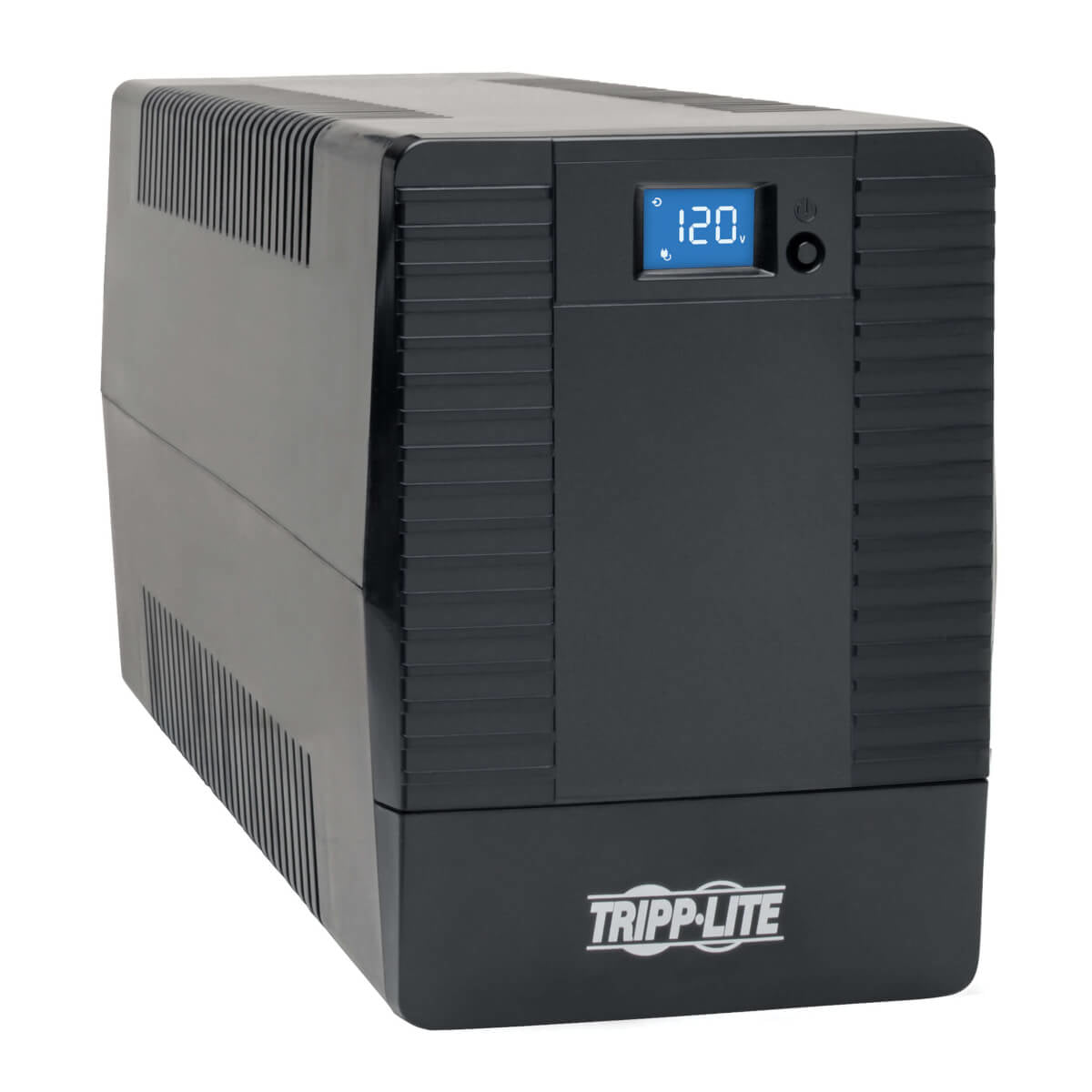

OMNIVS1000LCD - Tripp Lite 1000VA 560W LINE-INTERACTIVE UPS - 8 NEMA 5-15R OUTLETS, AVR, 120V, 50/60 HZ, US

1000VA/560W/120V Battery Backup for PC Networks, Security Systems or Digital Signage The OmniVS® line-interactive OMNIVS1000LCD UPS system with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment. Allows Time to Back Up Critical Files During a Blackout Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD monitor powered as long as 83 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available. 8 NEMA 5-15R Outlets Protect Your Connected Components Six 5-15R outlets provide battery backup, surge protection and voltage regulation for your computer, monitor and other crucial components. The other two 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout. Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The OMNIVS1000LCD can correct brownouts as low as 89V and overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure. Automatically Turns Back On After Power Is Restored Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement. Combats Line Noise That Can Harm Equipment EMI (electromagnetic interference) and RFI (radio frequency interference) are common causes of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The OMNIVS1000LCD filters out this disruptive line noise on the AC line, so that it won’t affect your equipment. Designed for High Efficiency to Help You Save Money and Protect the Environment A >95% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs. Home-Friendly Silent Alarm and LCD Touchscreen Keep You Informed 24/7 The UPS remains silent in both line and battery backup modes. The alarm sounds only to report low battery, battery replace, overload and fault condition. The LCD touchscreen offers five screens of UPS and site power information when the UPS is operating in either on-line or battery power mode. It displays vital voltage, load and battery data, as well as critical fault status. HID-Compliant USB Port Allows for Automatic Saves and Shutdowns This USB port connects the AVR750U to a computer running Tripp Lite’s free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. USB cable is included. Compact Housing Compatible with Easy Desktop Installation The space-saving ABS tower fits on a desktop, shelf or any other flat surface convenient to your workstation or home theater. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet. A built-in fan regulates the internal temperature to help prevent overheating.



Specification:



Power
Output frequency	50/60 Hz
Output voltage regulation	-12 - 6%
Output power	600 W
Input operation voltage (min)	89 V
Input operation voltage (max)	145 V
Output operation voltage (min)	110 V
Output operation voltage (max)	120 V
Surge energy rating	316 J
Maximum current	12 A
Output power capacity	1.2 kVA
Efficiency (On-line mode)	95%
Input frequency	50/60 Hz
Ports & interfaces
Cable length	59.1" (1.5 m)
USB port	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5-15R
Power plug	NEMA 5-15P
Ethernet LAN (RJ-45) ports	2
USB port type	USB Type-B
Performance
Audible alarm modes	Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Pure sine
Automatic Voltage Regulation (AVR)	Yes
Number of input phases	1
LED indicators	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Network, Telephone
Power protection features	Over voltage, Under voltage
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
Audible alarm modes	Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Pure sine
Output voltage regulation	-12 - 6%
Automatic Voltage Regulation (AVR)	Yes
Number of input phases	1
Output power	600 W
Input operation voltage (min)	89 V
Input operation voltage (max)	145 V
Output operation voltage (min)	110 V
Output operation voltage (max)	120 V
Surge energy rating	316 J
Maximum current	12 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Network, Telephone
Power protection features	Over voltage, Under voltage
Audible alarm(s)	Yes
Output power capacity	1.2 kVA
Efficiency (On-line mode)	95%
Input frequency	50/60 Hz
Battery
Typical backup time at half load	12 min
Typical backup time at full load	2 min
Cold start	Yes
Design
Country of origin	China
Form factor	Tower
LED indicators	Yes
Product colour	Black
Cable length	59.1" (1.5 m)
Housing material	Acrylonitrile butadiene styrene (ABS)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output frequency	50/60 Hz
Sustainability certificates	RoHS
Weight & dimensions
Package width	9.3" (236.2 mm)
Package depth	19.5" (495.3 mm)
Package height	11.7" (297.2 mm)
Weight	19.2 lbs (8.71 kg)
Width	5.5" (139.7 mm)
Package weight	20.3 lbs (9.21 kg)
Height	7.5" (190.5 mm)
Depth	15" (381 mm)
Packaging data
Manual	Yes
Cables included	USB cable
Package width	9.3" (236.2 mm)
Package depth	19.5" (495.3 mm)
Package height	11.7" (297.2 mm)
Package weight	20.3 lbs (9.21 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case width	9.3" (236.2 mm)
Master (outer) case length	19.5" (495.3 mm)
Master (outer) case height	11.7" (297.2 mm)
Master (outer) case gross weight	20.3 lbs (9.21 kg)
Packaging content
Manual	Yes
Cables included	USB cable
