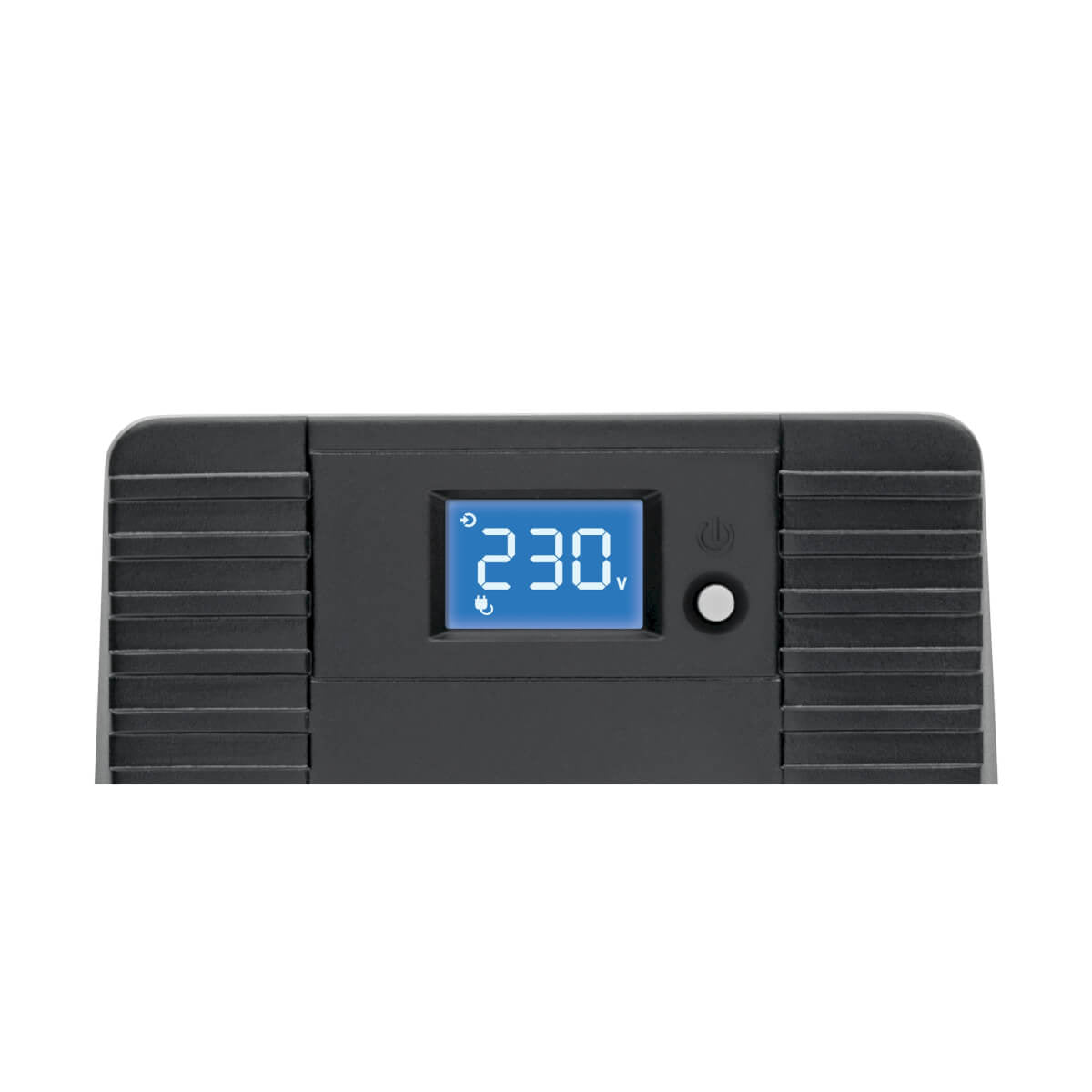

OMNIVSX850 - Tripp Lite 850VA 480W UPS TOWER 230V C13 BATTERY BACK UP DESKTOP AVR LCD

850VA/480W/230V Battery Backup for PCs, Home Theater or Digital Signage This 230V UPS with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The six-outlet 230V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment. Allows Time to Back Up Critical Files During a Blackout Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD monitor powered as long as 46 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available. Connects Your Equipment to 6 Protected C13 Outlets All six C13 outlets provide both battery backup and surge protection for your computer, monitor and other crucial components. Two 1.5-meter C13-to-C14 power cables are included for connecting equipment. A high >95% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs. Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The OMNIVSX850 can correct brownouts as low as 170V and overvoltages as high as 280V back to nominal 230V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure. 312 Joules Fight Back Against Unexpected Power Surges A 312-joule surge suppression rating protects connected components from the harmful effects of power surges. Combats Electromagnetic Interference That Can Harm Equipment Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The OMNIVSX850 incorporates technology that filters out disruptive line noise so that it won’t affect your equipment. Easy-to-Read LCD Touchscreen Reports Real-Time UPS and Power Status The LCD touchscreen offers five screens of UPS and site power information when the OMNIVSX850 is operating in either on-line or battery power mode. It displays vital voltage, load and battery data, as well as critical fault status. An audible alarm will sound in case of low battery, excessive load and fault condition. HID-Compliant USB Port Allows for Automatic Saves and Shutdowns This port connects the OMNIVSX850 to a computer running Tripp Lite’s free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. USB cable is included. The UPS works with Windows, Mac and Linux operating systems. Tower Form Factor for Easy Placement in Your Workspace or Media Center The compact ABS housing fits easily on a desktop, shelf or anywhere else convenient to your workstation or home theater. Connect the C14 power inlet to a properly grounded AC wall outlet with a user-supplied power cord with country-specific plug.



Specification:



Power
Output power	480 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	312 J
Maximum current	5 A
Efficiency	95%
Output power capacity	0.85 kVA
Input frequency	50/60 Hz
Ports & interfaces
Cable length	59.1" (1.5 m)
USB port	Yes
AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of input phases	1
EMI/RFI noise filtering	Yes
Noise level	40 dB
Audible alarm(s)	Yes
Transfer time (Line Mode to Battery Mode)	6 ms
Features
Country of origin	China
Audible alarm modes	Alarm when on battery, Low battery alarm
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of input phases	1
Output power	480 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	312 J
Maximum current	5 A
Efficiency	95%
EMI/RFI noise filtering	Yes
Noise level	40 dB
Audible alarm(s)	Yes
Output power capacity	0.85 kVA
Transfer time (Line Mode to Battery Mode)	6 ms
Input frequency	50/60 Hz
Battery
Typical backup time at half load	5 min
Cold start	Yes
Battery recharge time(90%)	8 h
Design
Country of origin	China
Form factor	Tower
Product colour	Black
Certification	IEC 62040-1:2008+A1:2013; EN62040-2:2006, IEC62040-2:2016, Category C2
Cable length	59.1" (1.5 m)
Housing material	Acrylonitrile butadiene styrene (ABS)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Sustainability certificates	RoHS
Weight & dimensions
Package width	14.2" (360.7 mm)
Package depth	23.6" (599.4 mm)
Package height	9.8" (248.9 mm)
Weight	13.2 lbs (5.99 kg)
Width	4.8" (121.9 mm)
Package weight	14.3 lbs (6.49 kg)
Height	6.3" (160 mm)
Depth	13.6" (345.4 mm)
Packaging data
Manual	Yes
Cables included	USB cable
Package width	14.2" (360.7 mm)
Package depth	23.6" (599.4 mm)
Package height	9.8" (248.9 mm)
Package weight	14.3 lbs (6.49 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case width	14.2" (360.7 mm)
Master (outer) case length	23.6" (599.4 mm)
Master (outer) case height	9.8" (248.9 mm)
Master (outer) case gross weight	14.3 lbs (6.49 kg)
Certificates
Certification	IEC 62040-1:2008+A1:2013; EN62040-2:2006, IEC62040-2:2016, Category C2
Packaging content
Manual	Yes
Cables included	USB cable
