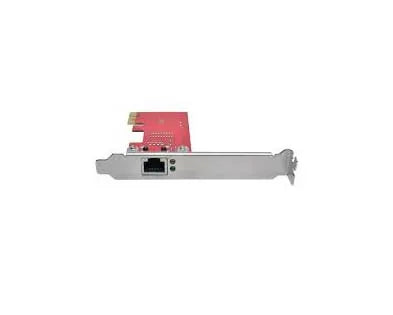

PCE-1G-01 - Tripp Lite 1-PORT GIGABIT ETHERNET PCI NETWORK CARD ADAPTER FULL PROFILE

The high-performance PCE-1G-01 1-Port Gigabit Ethernet PCI Express Card adds a 10/100/1000 Mbps network card and RJ45 Ethernet port to your computer or server. By adding the PCE-1G-01 to a computer with either no networking capabilities or 10/100 Ethernet, you can upgrade to Gigabit Ethernet capability without having to buy a new computer. It supports 10/100/1000 Mbps data rate auto-negotiation. Perfect for home or office, the PCE-1G-01 lets you connect to your high-speed LAN at Gigabit speeds up to 1000 Mbps. It easily installs inside your computer in just a few minutes. The standard bracket€™s one-lane (x1) interface is compatible with x4, x8 and x16 PCIe slots. Allow the appropriate drivers to automatically install on your hard drive (a driver CD is included if they don€™t), and connect a Cat5e/6 patch cable between the card€™s RJ45 slot and your network. An LED indicates successful connection and network activity. The PCE-1G-01 is backward compatible with 10/100 Mbps networks and complies with PCI Express Revision 1.1. Fully compliant with IEEE 802.3, 802.3u and 802.3ab. Supports IEEE 802.3x full-duplex flow control, 802.1p Layer 2 priority encoding, 802.1a VLAN tagging, crossover detection and auto correction (auto MDI/MDI-X), Wake-on-LAN (WoL) and 9K Jumbo Frames. Adds 10/100/1000 Mbps Network Card and Ethernet Port to Your Computer Upgrades your system to Gigabit Ethernet capability without buying a new computer or server Supports 10/100/1000 Mbps data rate auto-negotiation Perfect for home or office use Easy to Install Inside Your Computer 1-lane (x1) interface compatible with x4, x8 and x16 PCIe slots Appropriate drivers install to your hard drive automatically LED indicates successful connection and network activity Loaded with the Latest Features Complies with PCI Express Revision 1.1 Fully compliant with IEEE 802.3, 802.3u and 802.3ab Supports IEEE 802.3x full-duplex flow control, 802.1p Layer 2 priority encoding and 802.1a VLAN tagging Supports crossover detection and auto correction (auto MDI/MDI-X) Supports Wake-on-LAN (WoL) and 9K Jumbo Frames Backward compatible with 10/100 Mbps networks



Specification:



Ports & interfaces
Internal	Yes
Output interface	RJ-45
Host interface	PCIe
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCI 1.1
Technical details
Data transfer rate (max)	1 Gbit/s
Sustainability certificates	RoHS
Master (outer) case GTIN (EAN/UPC)	10037332193664
Performance
Data transfer rate (max)	1 Gbit/s
Product colour	Red
Harmonized System (HS) code	8471.80.1000
Colour
Product colour	Red
Design
Country of origin	China
Easy to install	Yes
Internal	Yes
Product colour	Red
Features
Data transfer rate (max)	1 Gbit/s
Harmonized System (HS) code	8471.80.1000
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Packaging data
Manual	Yes
Drivers included	Yes
Package width	3.5" (88.9 mm)
Package depth	5.4" (137.2 mm)
Package height	1" (25.4 mm)
Package weight	3.17 oz (90 g)
Logistics data
Master (outer) case gross weight	27.2 oz (770 g)
Products per master (outer) case	10 pc(s)
Master (outer) case width	4.09" (10.4 cm)
Master (outer) case length	11" (27.9 cm)
Master (outer) case height	6.1" (15.5 cm)
Weight & dimensions
Package width	3.5" (88.9 mm)
Package depth	5.4" (137.2 mm)
Package height	1" (25.4 mm)
Package weight	3.17 oz (90 g)
Packaging content
Manual	Yes
Drivers included	Yes
