PDU12IEC - Tripp Lite PDU SINGLE PHASE BASIC HORIZONTAL 100/240V 3.8KW 12 C13 2 C19

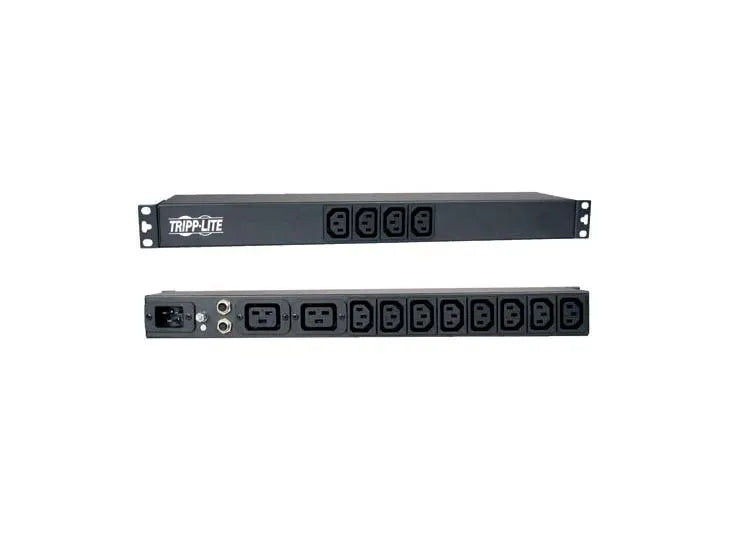

The PDU12IEC 1.9/3.8kW Single-Phase 120€“240V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU12IEC features a single load bank with 14 total outlets€”eight rear C13, two rear C19 and four front C13. The C20 inlet accepts a variety of user-provided power cords that connect to your facility€™s compatible AC power source, generator or protected UPS to distribute power to connected equipment. The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 16A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite€™s PDUSIDEBRKT accessory (sold separately), you can adapt the PDU12IEC for vertical 0U rack-mounting. Reliable Single-Phase Power Distribution Ideal no-frills PDU for networking, telecom, security, audio/video and sound reinforcement applications 14 total outlets€”8 rear C13, 2 rear C19 and 4 front C13€”in one load bank Built-in 16A circuit breakers protect outlets against overloads C20 inlet accepts wide variety of user-supplied power cords Rear-panel grounding lug Switchless Design Prevents accidental shutdowns and costly downtime Versatile Installation Options Mounts horizontally in 1U of EIA-standard 19 in. 2- and 4-post racks Reversible all-metal housing faces front or rear in rack Ready for toolless 0U vertical installation with optional PDUSIDEBRKT (sold separately) Also mounts on wall, workbench or under a counter



Specification:



Design
PDU types	Basic
Mounting	Vertical
Product colour	Black
Certification	UL60950-1/CAN/CSA C22.2 No. 60950-1-03
Rack capacity	0U
Housing material	Metal
Ports & interfaces
AC outlets quantity	14 AC outlet(s)
AC outlet types	NEMA 5€“15R
Power plug	NEMA 5€“15P
Features
Cable length	179.9" (4.57 m)
Certification	UL60950-1/CAN/CSA C22.2 No. 60950-1-03
Ergonomics
Cable length	179.9" (4.57 m)
Power
Nominal input voltage	100-127 V
Nominal output voltage	100-127 V
Maximum current	15 A
AC input frequency	50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)	24 x 1.71 x 1.75" (610 x 43.4 x 44.5 mm)
Weight	4.61 lbs (2.09 kg)
Weight (imperial)	5.2 lbs
Width	25.7" (654 mm)
Depth	2.25" (57.2 mm)
Height	1.75" (44.4 mm)
Package width	5.6" (142.2 mm)
Package depth	28.3" (718.8 mm)
Package height	2.4" (61 mm)
Package weight	5.29 lbs (2.4 kg)
Packaging data
Package width	5.6" (142.2 mm)
Package depth	28.3" (718.8 mm)
Package height	2.4" (61 mm)
Package weight	5.29 lbs (2.4 kg)
Operational conditions
Storage temperature (T-T)	-15 - 50 °C
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability certificates	RoHS
Master (outer) case GTIN (EAN/UPC)	10037332122244
Logistics data
Master (outer) case width	14.4" (365.8 mm)
Master (outer) case length	28.5" (723.9 mm)
Master (outer) case height	6.7" (170.2 mm)
Master (outer) case gross weight	33.3 lbs (15.1 kg)
Products per master (outer) case	6 pc(s)
Country of origin	China
