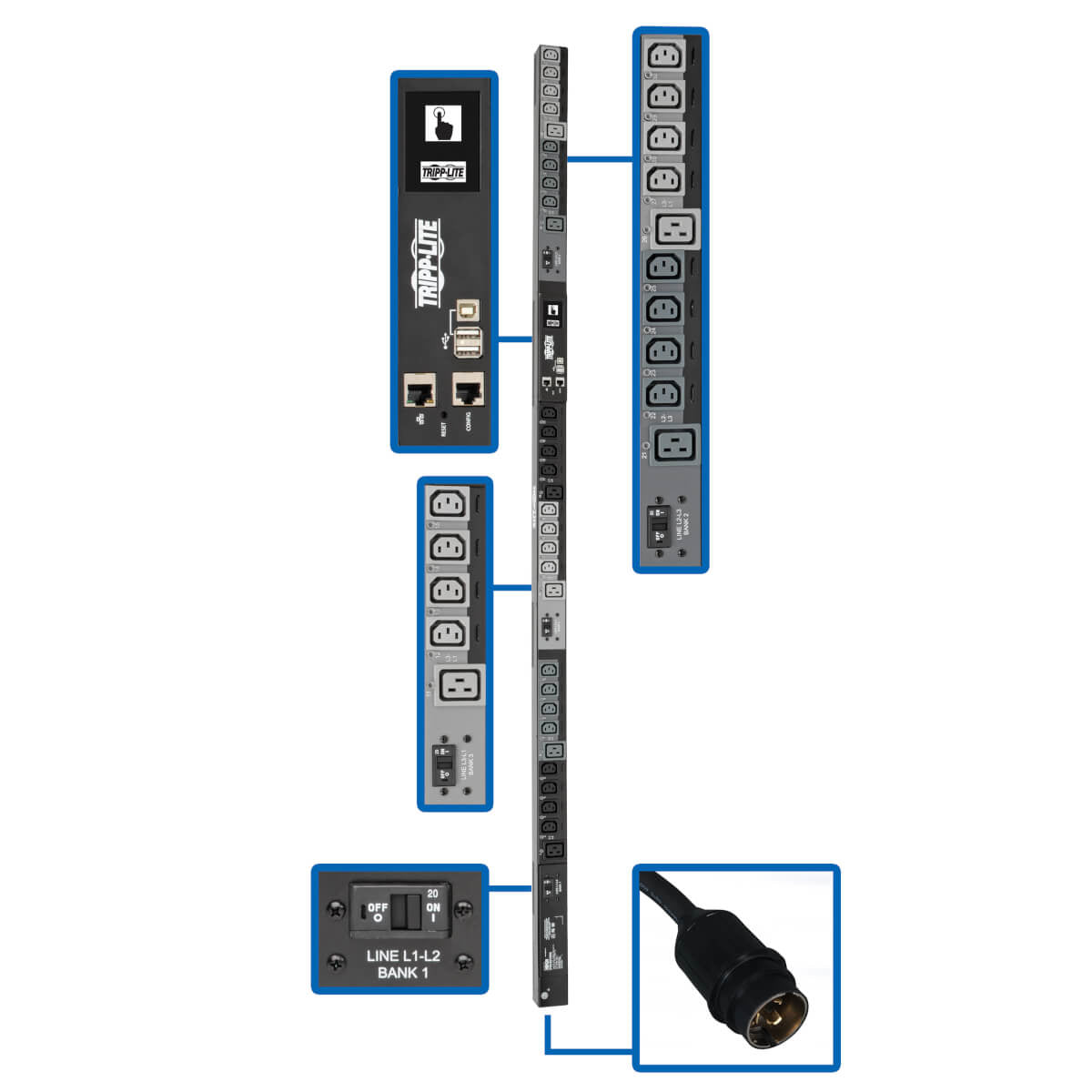

PDU3EVNR6L2130 - Tripp Lite PDU 3-PHASE MONITORED 24 C13 6 C19 208/240V L21-30P 10KW 0U TAA

10kW 3-Phase PDU Distributes and Monitors Network-Grade Power This monitored PDU provides real-time remote monitoring of voltage and load levels via its built-in network interface. Ideal for your data center, computer room or high-density network closet, the PDU3EVNR6L2130 features 24 C13 and six C19 208/240V outlets in three breakered load banks, which distribute AC power to rack equipment. Plug-lock insert sleeves are included to prevent equipment cables from becoming accidentally dislodged. Monitored Per-Outlet PDU Lets You Keep Track of Power Consumption in Real Time Not only can you remotely monitor voltage and frequency, but the PDU3EVNR6L2130 also allows metering of per-phase input current, as well as output current per bank and per outlet. Banks can be individually monitored to ensure proper load balance and prevent downtime. Monitoring each outlet allows you to study power consumption trends for each connected device. This helps you detect hardware problems and network traffic bottlenecks, as well as compare power usage among various devices. Built-In LX Platform Network Management Card Allows Remote Access 24/7 The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, Telnet or SSH. Full 10/100/1000 Mbps auto-sensing enables optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, FTP, DHCP and NTP. Color Touchscreen LCD Gives You Important Data at a Glance An easy-to-navigate color touchscreen LCD reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the PDU via PowerAlert® Device Manager. If an EnviroSense2 module is connected, the LCD also displays status and environmental data, including temperature and humidity. Easy to Install Vertically in an EIA-Standard 19 in. Rack The 70-inch 0U PDU mounts vertically using the included toolless mounting buttons or the included rack-mounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with a NEMA L21-30P 208/240V input connects the PDU to a compatible AC power source, generator or protected UPS. TAA-Compliant for GSA Schedule Purchases The PDU3EVNR6L2130 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.



Specification:



Design
Type	Three-phase
PDU types	Switched
Mounting	Vertical
Display	LCD
Product colour	Black, Gray
Certification	UL60950-1: 2007 R10.14, CAN/CSA-C22.2 NO. 60950-1-07+A1: 2011+A2: 2014, FCC CLASS A PART 15, NOM, TAA
Rack capacity	0U
Housing material	Metal
Ports & interfaces
USB ports quantity	2
AC outlets quantity	30 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	CS8365C
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Features
Cable length	70.9" (1.8 m)
LED indicators	Link, Network, Status
Certification	UL60950-1: 2007 R10.14, CAN/CSA-C22.2 NO. 60950-1-07+A1: 2011+A2: 2014, FCC CLASS A PART 15, NOM, TAA
Security algorithms	SNMP, SNMPv3
Ergonomics
Cable length	70.9" (1.8 m)
LED indicators	Link, Network, Status
Display	LCD
Power
Maximum power	14500 W
Nominal input voltage	208; 240 V
Nominal output voltage	208; 240 V
Power protection features	Overload
Maximum current	35 A
AC input frequency	50/60 Hz
Weight & dimensions
Weight	18.3 lbs (8.28 kg)
Width	2.17" (55.1 mm)
Depth	2.49" (63.2 mm)
Height	70" (1778 mm)
Package width	9.65" (245.1 mm)
Package depth	75.9" (1927.1 mm)
Package height	6.89" (175 mm)
Package weight	25.4 lbs (11.5 kg)
Packaging data
Package width	9.65" (245.1 mm)
Package depth	75.9" (1927.1 mm)
Package height	6.89" (175 mm)
Package weight	25.4 lbs (11.5 kg)
Packaging content
Manual	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	32 - 122 °F
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability certificates	RoHS
Security
Security algorithms	SNMP, SNMPv3
Logistics data
Products per master (outer) case	1 pc(s)
Country of origin	Taiwan
