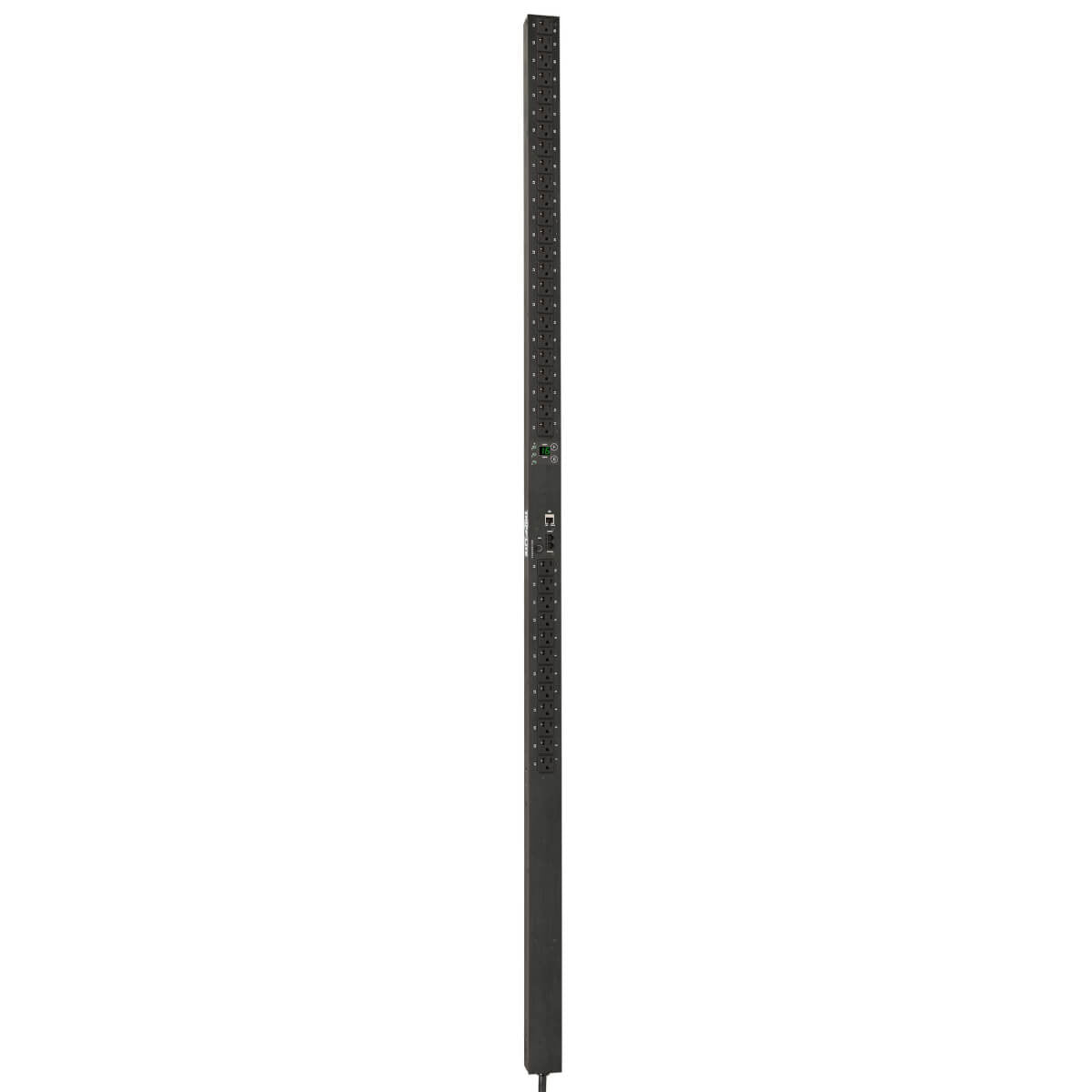

PDU3VN10L2120LV - Tripp Lite PDU 3-PHASE MONITORED 120V 5.7KWA L21-20P 36 5-15/20R 0U RM

Tripp Lite 3 phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. PowerAlert interface supports custom notification of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU output current consumption in amps is displayed per-phase via front panel lighted digital display and can be monitored remotely to warn of potential overloads before critical IT mains breakers trip. - 5.7kW 3 phase 208V Monitored Power Distribution Unit / PDU with built-in web/network interface - Attached NEMA L21-20P 20A (3P+N+E) 208V 3 phase input plug with 10 ft. / 3m cord - 0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks - 36 total 120V NEMA 5-15/20R outlets arranged in three breakered single phase output load banks - Lighted display with scroll-button reports power consumption in amps for all 3 loading banks, IP-address self-identification and 180 degree display rotation for overhead or raised floor power feeds - Built-in SNMP/ethernet interface reports voltage, frequency and PDU loading per-phase via network or secure web browser interface with options for user specified alarm and notification thresholds - Supports in-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors - DHCP/Manual configuration support - 10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks - Real-time clock backup maintains the time of day and date even if the PDU is unpowered - Tiered access privileges allow an administrator and a guest to login via web browser for monitoring - Alert notifications via email or SNMP traps offer immediate event notification - Firmware upgrade ability supports future product enhancements - Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols - Fully compatible with FREE PowerAlert Network Management System / NMS Software - Included cord retention brackets keep vital network equipment plugged in and continuously powered - Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications



Specification:



Design
PDU types	Monitored
Mounting	Vertical
Product colour	Black
Certification	UL60950-1
Rack capacity	0U
Ports & interfaces
AC outlets quantity	36 AC outlet(s)
Features
Cable length	39.4" (1 m)
LED indicators	Yes
Certification	UL60950-1
Ergonomics
Cable length	39.4" (1 m)
LED indicators	Yes
Power
Nominal input voltage	208 V
Nominal output voltage	208 V
Maximum current	24 A
Load capacity	8600 VA
AC input frequency	60 Hz
Weight & dimensions
Dimensions (WxDxH)	2.2 x 3.27 x 7" (56 x 83 x 177.8 mm)
Weight	13.9 lbs (6.32 kg)
Width	2.17" (55.1 mm)
Depth	2.86" (72.6 mm)
Height	70" (1778 mm)
Package width	9.65" (245.1 mm)
Package depth	75.9" (1927.1 mm)
Package height	6.89" (175 mm)
Package weight	20.1 lbs (9.12 kg)
Packaging data
Package width	9.65" (245.1 mm)
Package depth	75.9" (1927.1 mm)
Package height	6.89" (175 mm)
Package weight	20.1 lbs (9.12 kg)
Operational conditions
Operating relative humidity (H-H)	0 - 95%
Logistics data
Master (outer) case width	9.65" (245.1 mm)
Master (outer) case length	75.9" (1927.1 mm)
Master (outer) case height	6.89" (175 mm)
Master (outer) case gross weight	20.1 lbs (9.12 kg)
Products per master (outer) case	1 pc(s)
Country of origin	Taiwan
