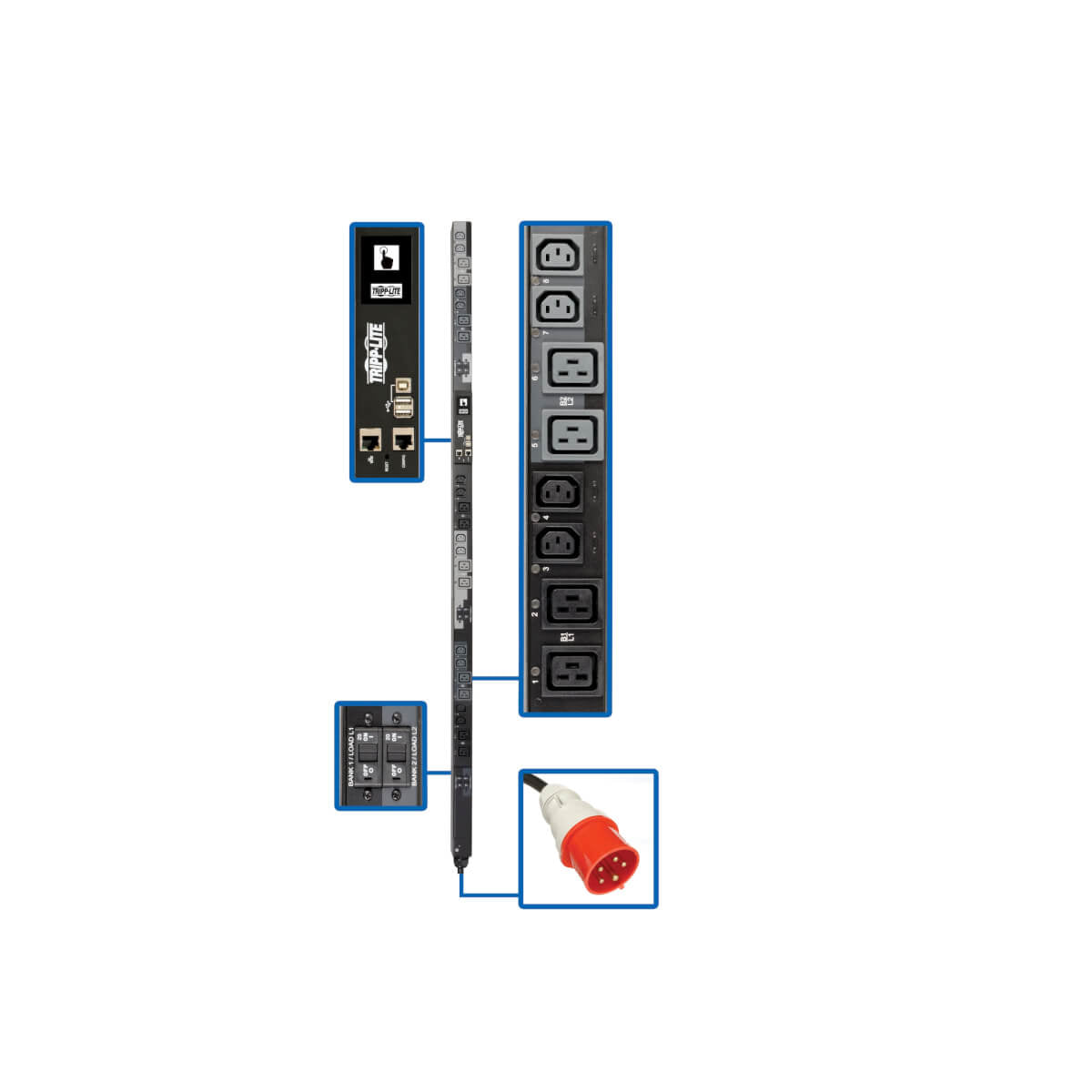

PDU3XEVSR6G32A - Tripp Lite 22.2KW 3-PHASE SWITCHED PDU - 12 C13 & 12 C19 OUTLETS, IEC 309 32A RED, 0U, OUTL

3-Phase PDU Distributes, Monitors and Manages Network-Grade Power Recommended for data centers, server rooms and high-density network closets, this switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. You can more efficiently manage network power consumption and remotely reboot locked network items without having to visit the site. Reducing the number of on-site visits can help lower the cost of data center maintenance, thus lowering the 0U PDU's total cost of ownership. 24 Outlets Dispense AC Power to Connected Equipment During normal operation, 24 individually controllable outlets—12 C13 and 12 C19—in six separately breakered load banks distribute AC power to rack equipment. Each 220-240V outlet is accompanied by an LED that illuminates when the outlet is ramped up and ready to be used. The outlets and banks can be individually monitored to ensure proper load balance and prevent downtime. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged. Pre-Installed GbE-Capable Network Interface Offers 24/7 Remote Access for Monitoring and Control The built-in WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite’s PowerAlert Element Manager (PAEM) software form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations. PADM20’s Auto Probe feature allows a PDU with switched loads to automatically reboot devices if a network communication failure is detected. This preserves uptime and minimizes the time and expense associated with on-site support. Color Touchscreen LCD Offers Important Data at a Glance An easy-to-navigate color touchscreen LCD reports network data, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 3-phase PDU via mobile device. If an EnviroSense2 module is connected to the PDU, the LCD also displays its status and environmental data, such as temperature and humidity. Easy to Install Vertically in an EIA-Standard 19 in. Rack The 70-inch 0U PDU mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A 6-ft. (1.83 m) cord with IEC 309 32A Red (3P+N+E) 380-415V 3-phase input connects the switched PDU to a compatible AC power source, generator or protected UPS. TAA-Compliant for GSA Schedule Purchases The PDU3XEVSR6G32A is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.



Specification:



Design
Type	Three-phase
PDU types	Switched
Mounting	Vertical
Display	LCD
Product colour	Black
Certification	UL60950-1: 2007 R12.11, IEC 60950-1: 2005+A1:2009, CAN/CSA-C22.2 NO. 60950-1-07+A1:2011, NOM, CE (EN 60950-1), FCC/CE, RoHS, TAA
Rack capacity	0U
Housing material	Metal
Ports & interfaces
AC outlets quantity	30 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	IEC309
Features
Cable length	72" (1.83 m)
LED indicators	Yes
Certification	UL60950-1: 2007 R12.11, IEC 60950-1: 2005+A1:2009, CAN/CSA-C22.2 NO. 60950-1-07+A1:2011, NOM, CE (EN 60950-1), FCC/CE, RoHS, TAA
Ergonomics
Cable length	72" (1.83 m)
LED indicators	Yes
Display	LCD
Power
Maximum power	23000 W
Nominal input voltage	380-400 V
Nominal output voltage	220-230 V
Maximum current	32 A
AC input frequency	50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)	9.69 x 75.9 x 6.89" (246 x 1928 x 175 mm)
Weight	15.9 lbs (7.23 kg)
Width	2.17" (55.1 mm)
Depth	2.52" (64 mm)
Height	70" (1778 mm)
Package width	9.65" (245.1 mm)
Package depth	75.9" (1927.1 mm)
Package height	6.89" (175 mm)
Package weight	23.1 lbs (10.5 kg)
Package dimensions (WxDxH)	2.17 x 2.52 x 70" (55.1 x 64 x 1778 mm)
Packaging data
Package width	9.65" (245.1 mm)
Package depth	75.9" (1927.1 mm)
Package height	6.89" (175 mm)
Package weight	23.1 lbs (10.5 kg)
Package dimensions (WxDxH)	2.17 x 2.52 x 70" (55.1 x 64 x 1778 mm)
Packaging content
Cables included	AC
Manual	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability certificates	RoHS
Logistics data
Products per master (outer) case	1 pc(s)
Country of origin	Taiwan
