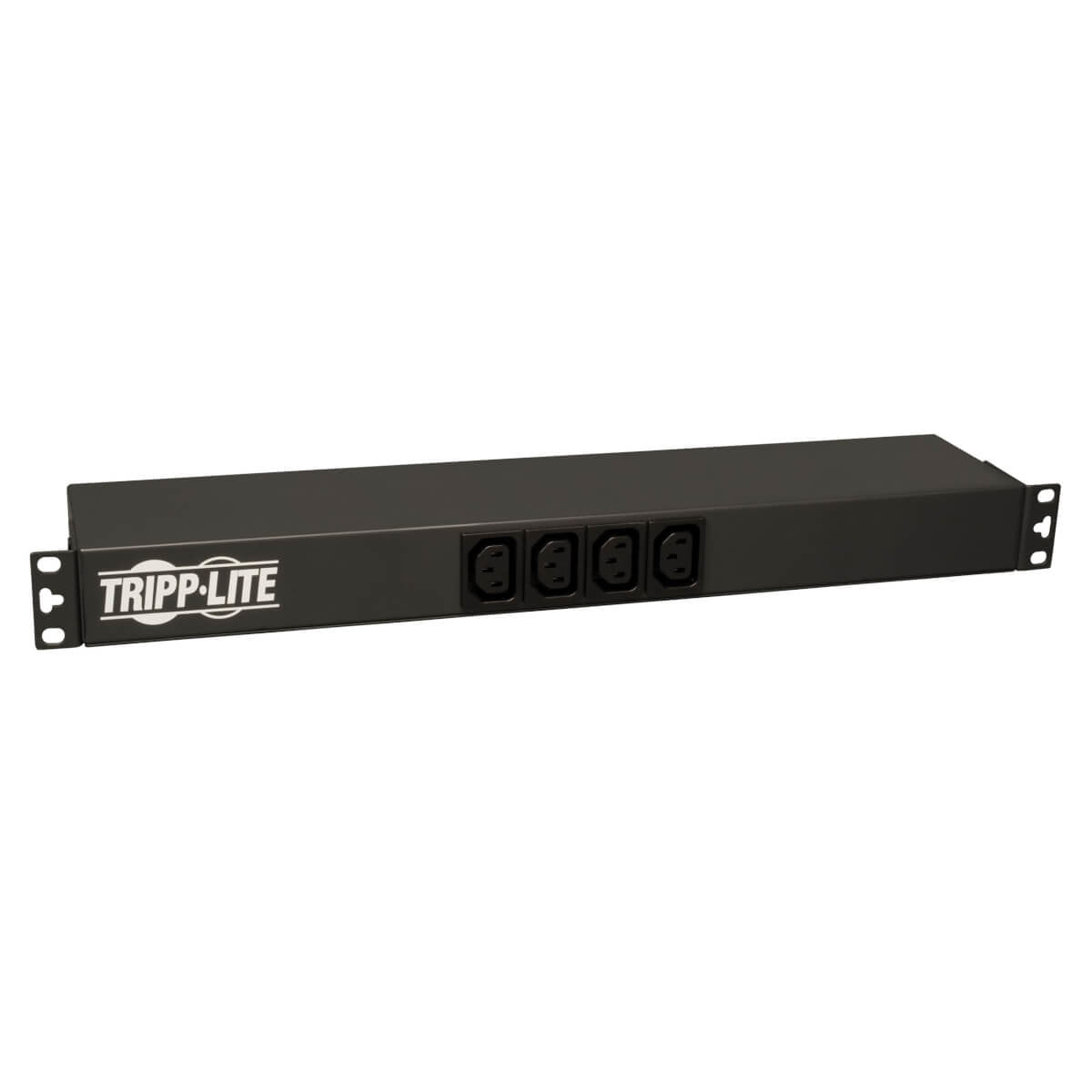

PDUH20HVL6 - Tripp Lite PDU BASIC 208V / 240V 20A 2 C19; 12 C13 L6-20P HORIZONTAL 1URM

Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution for critical IT equipment in wiring closets, server rooms and equipment racks. Supplies continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. - 20A single phase 208/240V Basic Power Distribution Unit / PDU (Agency de-rated to 16A continuous) - Attached NEMA L6-20P input with 15 ft. / 4.5m line cord - 1U horizontal rackmount format installs in one rack space - 14 outlets (2 C19, 12 C13) - Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting - Mounting ears are reversible for front or rear facing rackmount installation - Back panel grounding lug



Specification:



Design
Type	Single-phase
PDU types	Basic
Mounting	Horizontal/Vertical
Product colour	Black
Rack capacity	0U/1U
Housing material	Metal
Ports & interfaces
AC outlets quantity	14 AC outlet(s)
AC outlet types	NEMA 5–15R, NEMA 5–20R
Power plug	NEMA L5-20P
Features
Cable length	179.9" (4.57 m)
LED indicators	Yes
EMI/RFI noise filtering	Yes
Ergonomics
Cable length	179.9" (4.57 m)
LED indicators	Yes
Power
Maximum power	2030 W
Surge energy rating	3840 J
Nominal input voltage	100 - 127 V
Nominal output voltage	100 - 127 V
Power protection features	Overload
Maximum current	20 A
AC input frequency	50/60 Hz
Weight & dimensions
Weight	4.61 lbs (2.09 kg)
Width	20" (508 mm)
Depth	4.5" (114.3 mm)
Height	2" (50.8 mm)
Package width	9.3" (236.2 mm)
Package depth	20.4" (518.2 mm)
Package height	2.2" (55.9 mm)
Package weight	6.9 lbs (3.13 kg)
Packaging data
Package width	9.3" (236.2 mm)
Package depth	20.4" (518.2 mm)
Package height	2.2" (55.9 mm)
Package weight	6.9 lbs (3.13 kg)
Packaging content
Manual	Yes
Rack mount kit	Yes
Operational conditions
Storage temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Master (outer) case GTIN (EAN/UPC)	10037332255874
Logistics data
Master (outer) case width	20.7" (527 mm)
Master (outer) case length	13.7" (349.2 mm)
Master (outer) case height	9.75" (247.6 mm)
Master (outer) case gross weight	22.3 lbs (10.1 kg)
Products per master (outer) case	6 pc(s)
Country of origin	China
