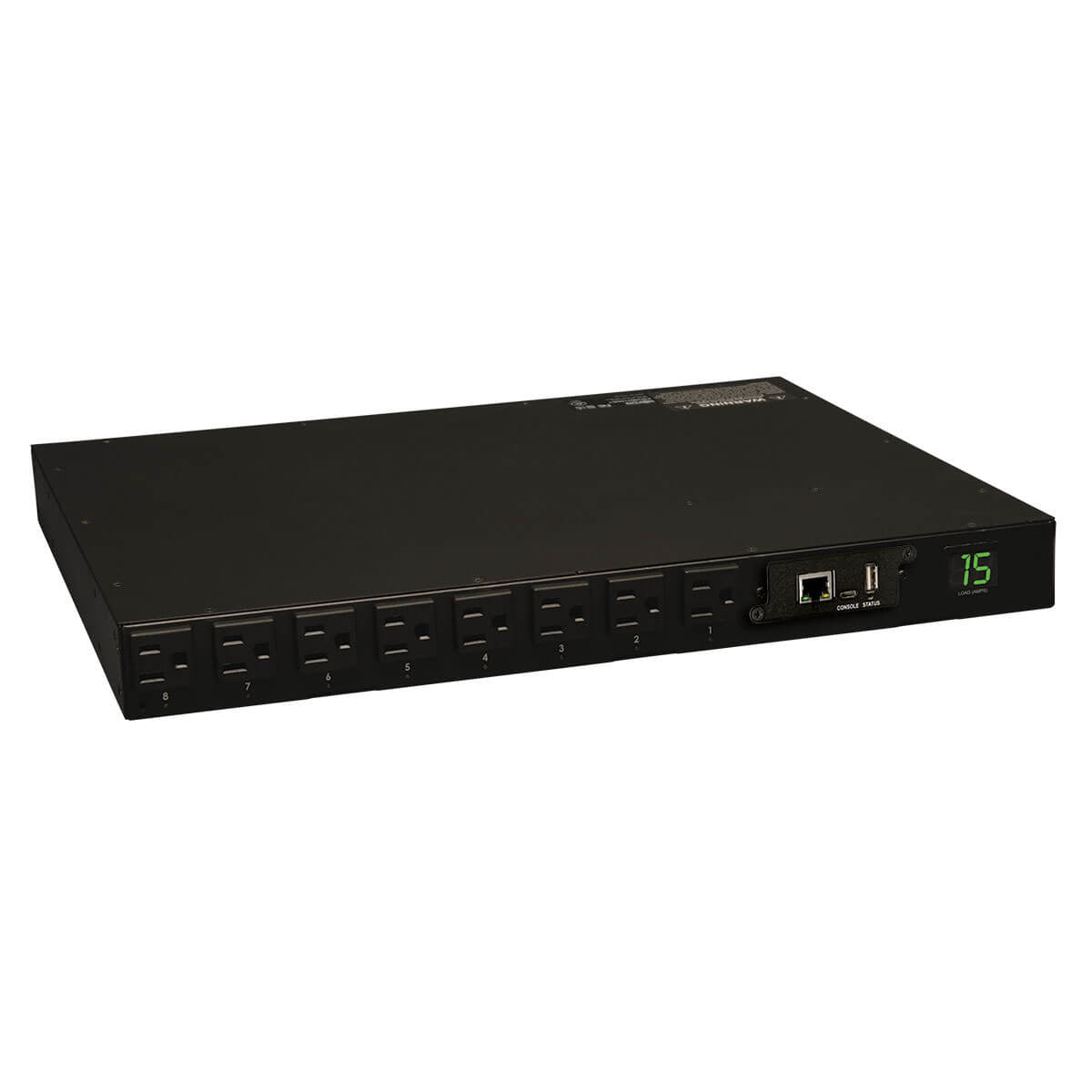

PDUMH15NET - Tripp Lite PDU SWITCHED 120V 15A 5-15R 16 OUTLET 5-15P HORIZONTAL 1URM

Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. - 15A 120V Switched Power Distribution Unit / PDU with built-in web/network interface (Agency derated to 12A continuous) - Attached NEMA 5-15P 120V single phase input; 12 ft. / 3.6m cord - 1U horizontal rackmount form factor - 16 switched NEMA 5-15R outlet (8 front / 8 rear) - Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis - Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets - Network interface provides PDU control and data regarding input voltage and total output load level in amps - Digital display continuously reports total output load level in amps - Supports user-specified alarm notification thresholds - In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors - DHCP/Manual configuration support - 10/100 Mbps auto-sensing - Real-time clock backup maintains the time of day and date even if the PDU is unpowered - Tiered access privileges allow an administrator and a guest to login via web browser - Alert notifications via email or SNMP traps offer immediate event notification - Firmware upgrade ability supports future product enhancements - Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols - Fully compatible with FREE PowerAlert Network Management System / NMS Software - 1U horizontal rack installation supported in 2 or 4 post racks with included mounting brackets - Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting - Included cord retention brackets - TAA Compliant Version Available - Order Tripp Lite PDUMH15NETAA



Specification:



Design
On/off switch	Yes
Type	Single-phase
PDU types	Switched
Mounting	Horizontal
Display	LCD
Product colour	Black
Certification	UL 60950-1 (USA). CAN/CSA-C22.2 NO. 60950-1 (Canada), Class A Part 15 (Emissions), NOM (Mexico), TAA Compliant
Rack capacity	1U
Housing material	Metal
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5–15P
Features
Cable length	144.1" (3.66 m)
LED indicators	Yes
Certification	UL 60950-1 (USA). CAN/CSA-C22.2 NO. 60950-1 (Canada), Class A Part 15 (Emissions), NOM (Mexico), TAA Compliant
Management features
Supported network protocols	IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, NTP
Outlet control	Lock-out, Recycle, Turn off, Turn on
Ergonomics
Cable length	144.1" (3.66 m)
LED indicators	Yes
Display	LCD
Power
Maximum power	1400 W
Nominal input voltage	100-127 V
Nominal output voltage	100-127 V
Maximum current	15 A
AC input frequency	50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)	17.5 x 4.25 x 1.75" (444 x 108 x 44.4 mm)
Weight	5.2 lbs (2.36 kg)
Width	17.5" (444.5 mm)
Depth	4.25" (108 mm)
Height	1.75" (44.4 mm)
Package width	11.8" (300 mm)
Package depth	20.5" (519.9 mm)
Package height	2.13" (54.1 mm)
Package weight	6.92 lbs (3.14 kg)
Package dimensions (WxDxH)	11.8 x 20.5 x 2.13" (300 x 520 x 54 mm)
Packaging data
Package width	11.8" (300 mm)
Package depth	20.5" (519.9 mm)
Package height	2.13" (54.1 mm)
Package weight	6.92 lbs (3.14 kg)
Package dimensions (WxDxH)	11.8 x 20.5 x 2.13" (300 x 520 x 54 mm)
Packaging content
Manual	Yes
Operational conditions
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	5 - 122 °F
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability certificates	RoHS
Logistics data
Products per master (outer) case	1 pc(s)
Country of origin	Taiwan
