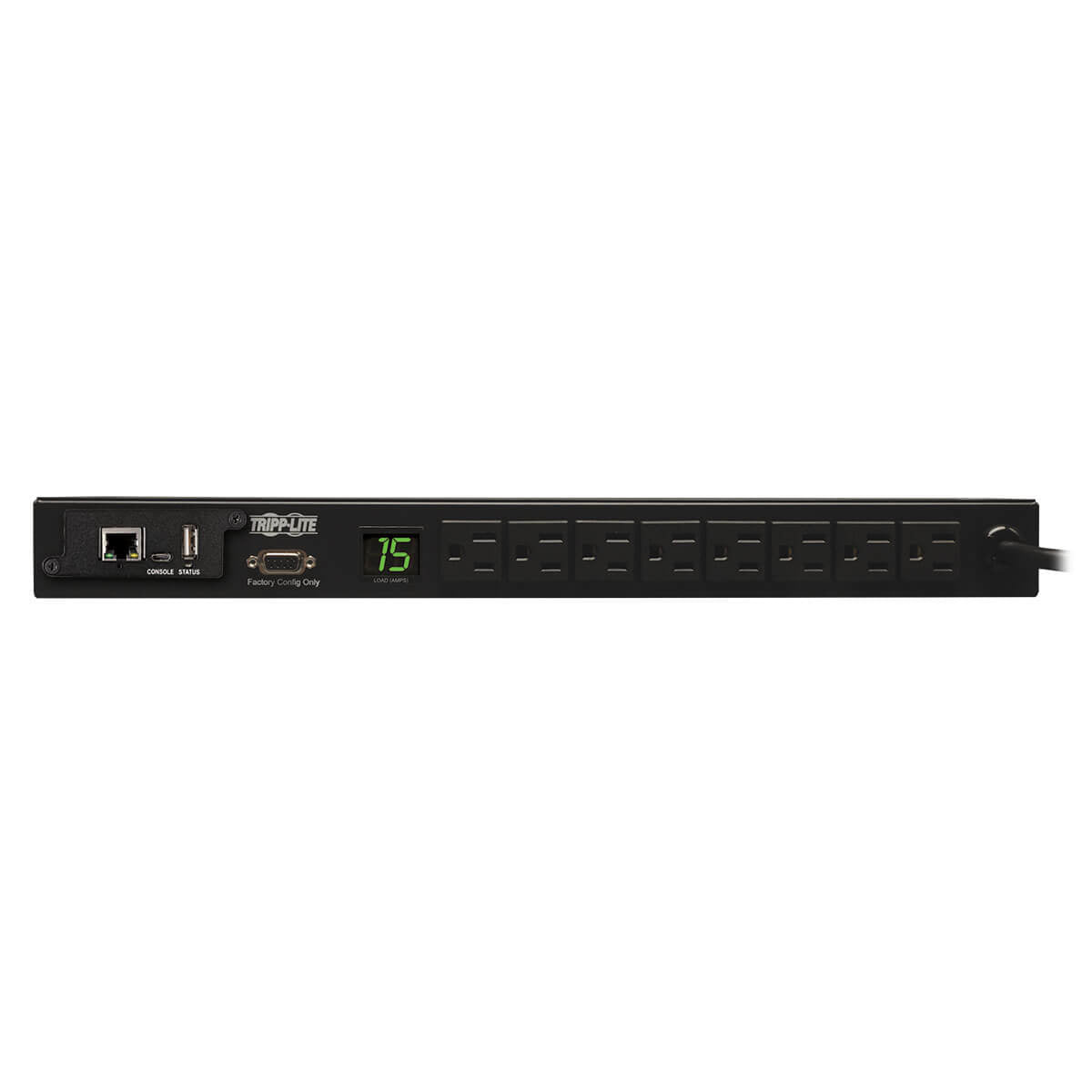

PDUMNH15 - Tripp Lite PDU MONITORED 120V 15A 5-15R 8 OUTLET 5-15P HORIZONTAL 1URM

Tripp Lite single phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. PowerAlert interface supports custom notification of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. - 15A single phase 120V Monitored Power Distribution Unit / PDU (agency derated to 12A continuous) - Attached NEMA 5-15P input plug with 12ft / 3.6m line cord - 1U horizontal rackmount installation format supports installation in 2 or 4 post equipment racks - 8 NEMA 5-15R outlets - Lighted display reports output power consumption in amps - Built-in SNMP/ethernet interface reports voltage, frequency and PDU loading via network or secure web browser interface with options for user specified alarm and notification thresholds - Supports in-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors - DHCP/Manual configuration support - 10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks - Real-time clock backup maintains the time of day and date even if the PDU is unpowered - Tiered access privileges allow an administrator and a guest to login via web browser for monitoring - Alert notifications via email or SNMP traps offer immediate event notification - Firmware upgrade ability supports future product enhancements. - Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols - Fully compatible with FREE PowerAlert Network Management System / NMS Software - Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats - Mounting ears are reversible for front or rear facing rackmount installation - Included cord retention brackets keep vital network equipment plugged in and continuously powered - TAA Compliant Version Available - Order Tripp Lite PDUMNH15TAA



Specification:



Design
Type	Single-phase
PDU types	Metered, Switched
Mounting	Horizontal
Display	LCD
Product colour	Black
Rack capacity	1U
Housing material	Metal
Ports & interfaces
USB ports quantity	2
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5–15P
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Features
Cable length	144.1" (3.66 m)
LED indicators	Yes
Ergonomics
Cable length	144.1" (3.66 m)
LED indicators	Yes
Display	LCD
Power
Maximum power	1520 W
Nominal input voltage	120 V
Nominal output voltage	100 - 127 V
Maximum current	15 A
AC input frequency	50/60 Hz
Weight & dimensions
Weight	11 lbs (4.99 kg)
Width	17.5" (444.5 mm)
Depth	14.5" (368.3 mm)
Height	1.75" (44.4 mm)
Package width	20.8" (528.3 mm)
Package depth	23.3" (591.8 mm)
Package height	5.3" (134.6 mm)
Package weight	17.1 lbs (7.74 kg)
Packaging data
Package width	20.8" (528.3 mm)
Package depth	23.3" (591.8 mm)
Package height	5.3" (134.6 mm)
Package weight	17.1 lbs (7.74 kg)
Packaging content
Cables included	AC
Manual	Yes
Rack mount kit	Yes
Operational conditions
Storage temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability compliance	Yes
Sustainability certificates	RoHS
Logistics data
Products per master (outer) case	1 pc(s)
Country of origin	Taiwan
