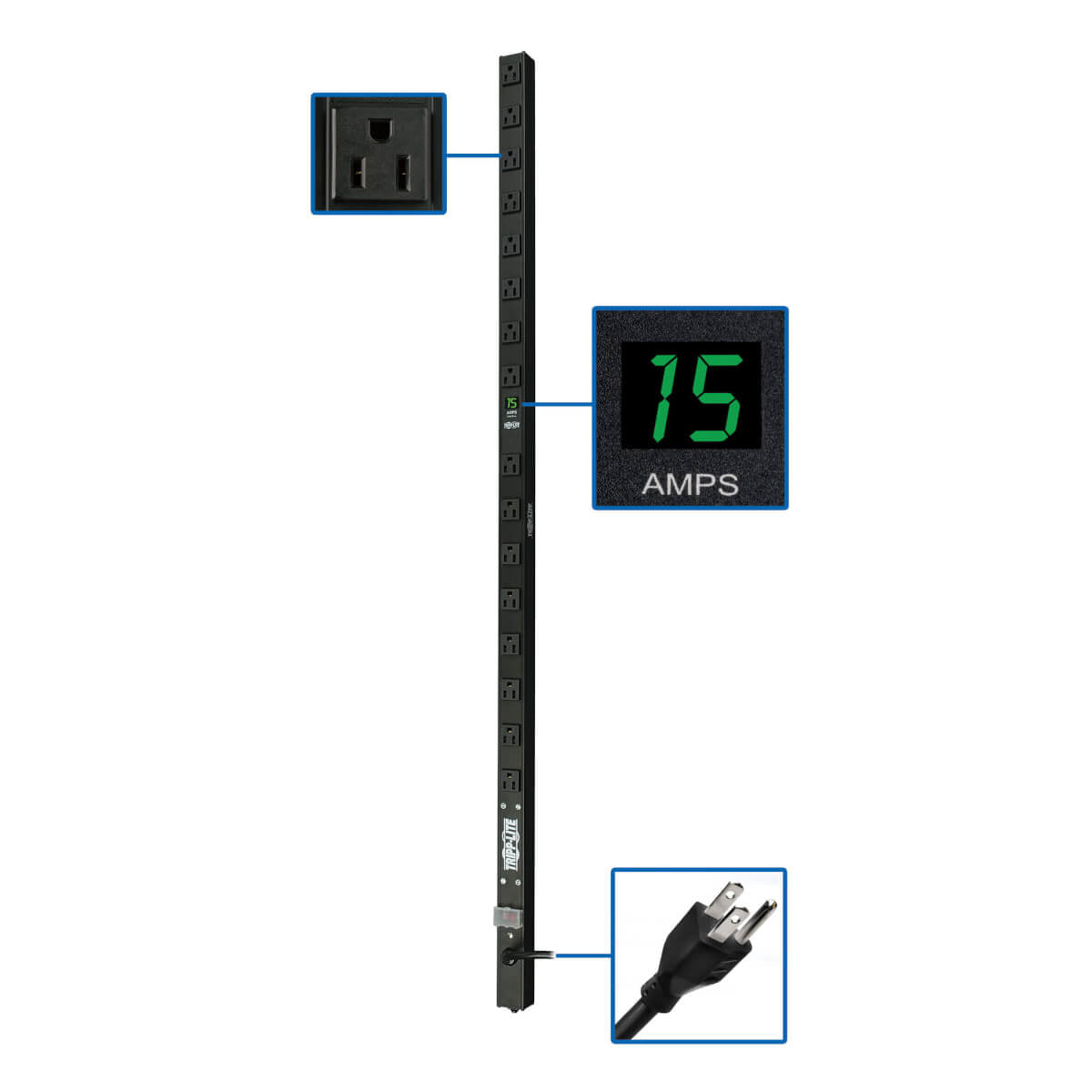

PDUMV15 - Tripp Lite PDU METERED 120V 15A 5-15R 16 OUTLET 5-15P VERTICAL 0URM

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. - 15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous) - Two-digit lighted meter reports combined total output current in amps - Attached NEMA 5-15P 15A 120V input plug with 15ft / 4.5m line cord - 0U 48in / 122cm vertical rackmount format installs using no rack spaces - 16 NEMA 5-15R outlets - Includes 15A circuit breaker and lighted power switch inside a transparent protective cover - Toolless installation supported in button-mount compatible equipment racks - Bolt-down installation brackets support installation in other racks and additional surfaces



Specification:



Design
PDU types	Metered
Mounting	Vertical
Display	LED
Product colour	Black
Certification	UL60950-1, CSA60950-1, NOM
Rack capacity	0U
Housing material	Metal
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5–15P
Features
Cable length	181.1" (4.6 m)
LED indicators	Yes
Certification	UL60950-1, CSA60950-1, NOM
Ergonomics
Cable length	181.1" (4.6 m)
LED indicators	Yes
Display	LED
Power
Nominal input voltage	100-127 V
Nominal output voltage	100-127 V
Maximum current	15 A
Weight & dimensions
Dimensions (WxDxH)	1.75 x 1.26 x 24" (44.5 x 32 x 610 mm)
Weight	2.73 lbs (1.24 kg)
Width	1.5" (38.1 mm)
Depth	1.64" (41.7 mm)
Height	24.5" (621.5 mm)
Package width	5.39" (136.9 mm)
Package depth	2.4" (61 mm)
Package height	26.6" (674.9 mm)
Package weight	3.22 lbs (1.46 kg)
Package dimensions (WxDxH)	26.9 x 5.55 x 2.2" (683 x 141 x 56 mm)
Packaging data
Package width	5.39" (136.9 mm)
Package depth	2.4" (61 mm)
Package height	26.6" (674.9 mm)
Package weight	3.22 lbs (1.46 kg)
Package dimensions (WxDxH)	26.9 x 5.55 x 2.2" (683 x 141 x 56 mm)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability certificates	RoHS
Master (outer) case GTIN (EAN/UPC)	10037332182859
Logistics data
Master (outer) case width	16.9" (430 mm)
Master (outer) case length	10.8" (275.1 mm)
Master (outer) case height	27.4" (694.9 mm)
Master (outer) case gross weight	40.8 lbs (18.5 kg)
Products per master (outer) case	12 pc(s)
Country of origin	China
