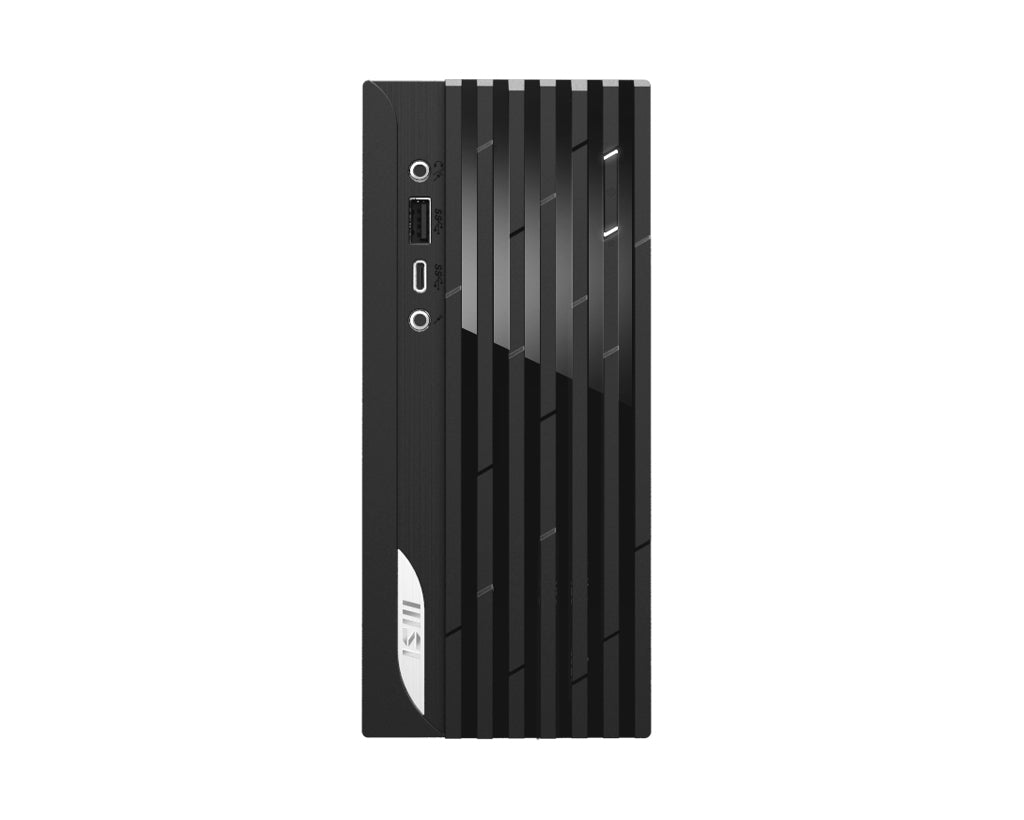

PRDP20ZA5M059 - MSI PRO DP20ZA 5M-059US R5-5600G VEGA7

Small But Powerful The same performance as a big rig but in a only 2.6L chassis so you can take it anywhere. Be Productive & Effective It is indispensable to have a stable and efficient power for you and your business. The latest AMD Ryzen™ 5000 Series Socket AM4 Processors deliver the ultimate in high performance, whether you are crunching scientific data or designing your business logo, you are always in the lead. Support Up To 4K Resolution PRO DP20Z Series supporting 4K@60Hz allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home. See More, Do More With one DP-out, one HDMI-out and a VGA port, PRO DP20Z Series allows you to extend three monitors to pre-view your E-commerce content & data at home or in the office that enhance the efficiency for you. MSI Center The MSI Center takes optimization to the next level with easily adjustable system modes; it helps to prioritize & allocate the resource on your hand to accelerate the performance of those software which you work with everyday. Wi-Fi 6 Technology Featuring the latest Wi-Fi 6 802.11ax with Bluetooth 5.2 version, and speed up to 2.4Gbps, which is 3x times faster than the Ethernet LAN. The latency is also 75% lower than the previous generation. With Wi-Fi 6 technology, the connectivity to the world will be unlimited. USB 3.2 GEN 2 Type-C & Type A With data transfer speeds up to 10Gbps, two USB 3.2 Gen 2 Type A and one Type C ports offer twice the bandwidth of the older USB 3.1 Gen 1 ports, effectively halving any data delay or waiting time. The reversible Type-C connector allows for effortless connecting of USB devices. FW TPM SUPPORT FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security. Easy Maintenance Users can easily upgrade two M.2 SSD, two 2.5” HDD/SSD and two SO-DIMM by disassembling the side covers. Made PRO DP20Z Series an even flexible desktop and also reduce the time wasting on upgrading. VESA Mount Support VESA Mountable design allows users to hook PRO DP20Z Series up anywhere you like or mount it with PRO MP242 Series. Not only improve the flexibility of using PRO DP20Z Series, but also let users make good use of their space at home or at office. Various IO Ports With a complete array of I/O ports, it can connect all devices you need and connect many devices at the same time so you can multi-task with those devises to make you work more efficiently and of course you won’t need an adaptor or a dock. Successful & Stylish B2B projects Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.



Specification:



Processor
Processor cache type	L3
Processor cache	16 MB
Processor frequency	3.9 GHz
Processor model	5600G
Processor manufacturer	AMD
Processor boost frequency	4.4 GHz
Processor cores	6
Processor family	AMD Ryzenâ„¢ 5
Memory
Internal memory	8 GB
Memory layout (slots x size)	2 x 4 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Storage
Storage media	SSD
Optical drive type	No
SSD capacity	250 GB
Number of SSDs installed	1
Total storage capacity	250 GB
SSD form factor	M.2
Total SSDs capacity	250 GB
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon Graphics
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi standards	802.11a,802.11ad,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI version	2.0
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	3
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
DC-in jack	Yes
Technical details
Number of 2.5" bays	2
Product type	Mini PC
Product colour	Black
Chassis type	mini PC
Placement supported	Vertical
Design
VESA mounting	Yes
Volume	2.6 L
Number of 2.5" bays	2
Product colour	Black
Chassis type	mini PC
Placement supported	Vertical
Performance
Audio chip	Realtek ALC233
Market positioning	Business
Product type	Mini PC
Software
Operating system installed	Windows 11 Home
Power
Power supply	120 W
Ergonomics
VESA mounting	Yes
Weight & dimensions
Volume	2.6 L
Width	3.35" (85 mm)
Depth	6.32" (160.6 mm)
Height	7.61" (193.3 mm)
Package weight	5.16 lbs (2.34 kg)
Weight	3.35 lbs (1.52 kg)
Packaging data
Package weight	5.16 lbs (2.34 kg)
Packaging content
VESA mount included	Yes
Display included	No
Other features
VESA mounting	Yes
On-board graphics card	Yes
Processor manufacturer	AMD
