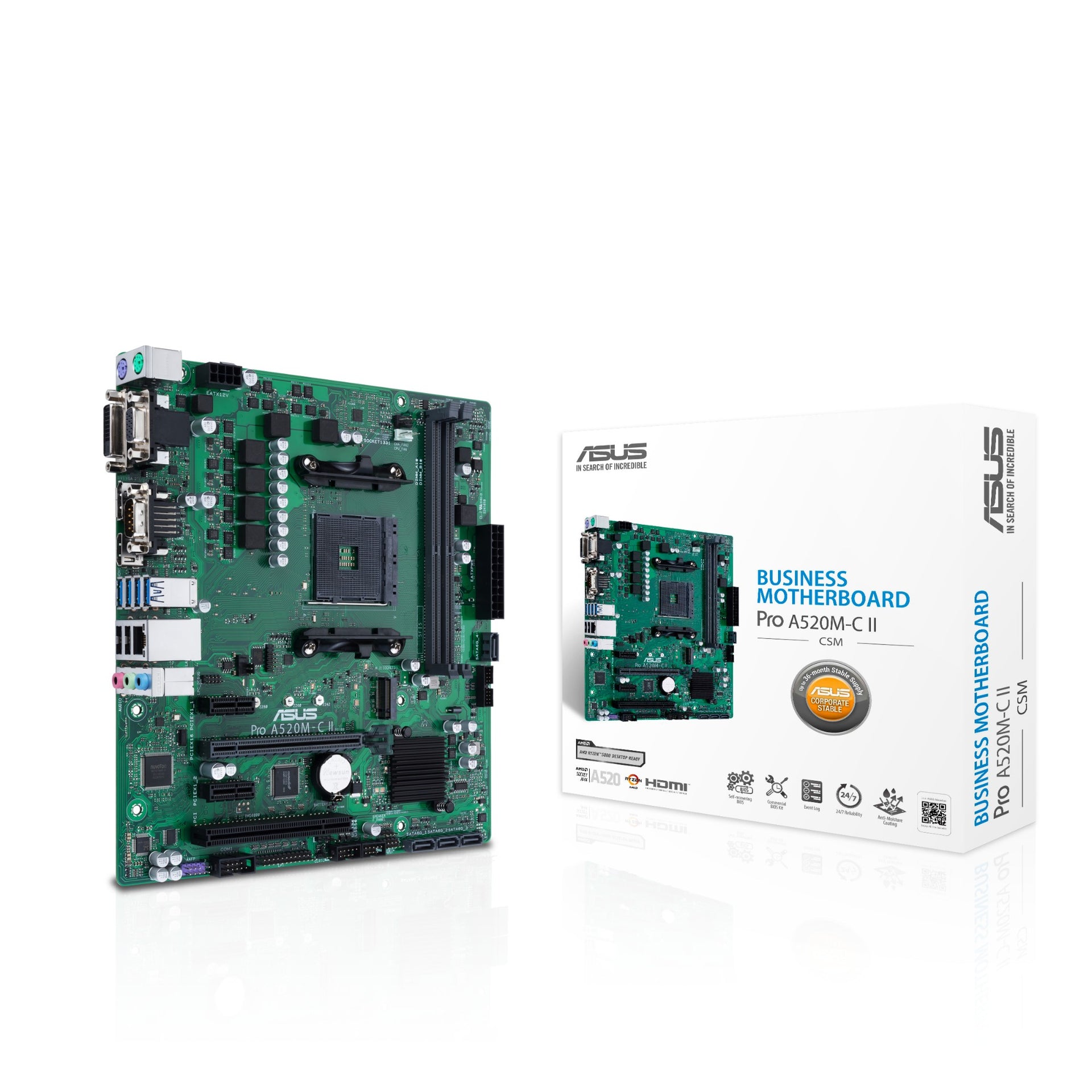

PRO A520M-C II/CSM - ASUS PROA520M-C II/CSM AMD AM4

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs. ASUS Corporate Stable Model ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software. ASUS Control Center Express ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs. Internationally Certified Business Motherboard ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business. ASUS Trouble Shooting Solution ASUS Debug header is a 10-1 pin low pin count (LPC) header for connecting to debug cards for faster, more efficient motherboard troubleshooting. When connected to an ASUS Debug Card, administrators can view error and debugging codes on the integrated LCD display, and get better idea of initialization and recovery processes. ASUS business motherboards provide a complete troubleshooting solution, making mass production faster and more cost effective. Remote IT Management The onboard SMBUS header* connects to a DASH LAN card for remote IT management. DASH is a desktop and mobile architecture system hardware that allows the motherboard to be managed via the network. ASUS Commercial BIOS Kit ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!



Specification:



Internal I/O
Number of M.2 (M) slots	2
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	4
Number of COM connectors	1
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Number of displays supported	3
Motherboard chipset family	Intel
Motherboard chipset	Intel B660
HDMI version	2.1
Motherboard form factor	micro ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Motherboard chipset family	Intel
Motherboard chipset	Intel B660
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
Maximum number of SMP processors	1
Processor socket	LGA 1700
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4400,4600,4800,5000 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA
RAID levels	0, 1, 5, 10
Graphics
Number of displays supported	3
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
DisplayPort version	1.4
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.2
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel B660
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC897
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS memory size	128 Mbit
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Drivers included	Yes
Weight & dimensions
Height	2.01" (51 mm)
Weight	22.4 oz (634 g)
Width	9.61" (244 mm)
Depth	9.61" (244 mm)
Packaging content
Drivers included	Yes
Cables included	SATA
Other features
Height	2.01" (51 mm)
Weight	22.4 oz (634 g)
