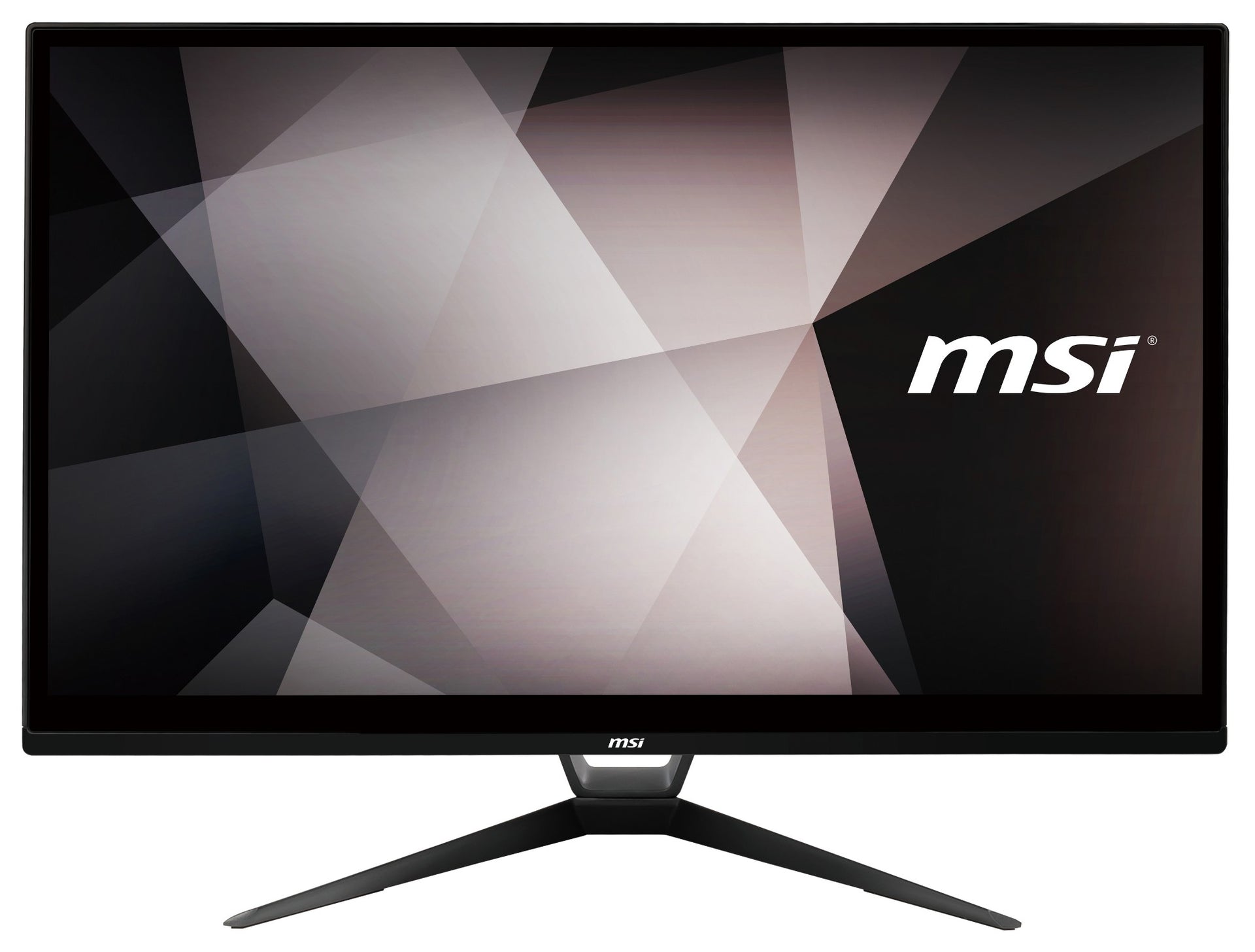

PRO22XT10M617 - MSI PRO 22XT AIO 21.5IN 10M-617US

ENHANCE YOUR VIEWING EXPERIENCE WITH IPS GRADE PANEL PRO 22X Series is equipped with IPS Grade Panel which not only instantly optimizes the screen colors and brightness to ensure that you enjoy every scene at its best, but also allows you to have a consistent picture quality with an extremely wide viewing angle vertically as well horizontally of 178 degrees. NOTHING BUT FOCUS Go Through Every Corner, Edge & Plane for CAD & APP developers PRO 22X is equipped with a 10th Generation Intel® Core™ Processors which utilize a power-efficient microarchitecture, advanced process technology and silicon optimizations to deliver faster performance than processors of the previous generation. NVME PCIE M.2 SSD Time is very important during your workday. Enjoy a blazing fast system boot up and insanely quick loading of applications and data to save time. The PRO 22X series is equipped with an NVMe PCIe M.2 SSD that delivers speeds up to 2200MB/s which is 5 times faster. SILENT PRO COOLING SYSTEM SEPARATE AIR FLOW FOR THE HOTTEST KEY COMPONENTS The MSI PRO 22X is equipped with a special cooling system, Silent PRO Cooling. Part of this system is a Server Grade Thermal Module that handles the cooling of different components within the system. Besides that we put the most important key components on the top side so warm air can easily move out and we separate the air flow to make sure the system's temperature stays perfectly under control for a cool and silent operation. MORE STABILIZED MONITOR PANEL FLICKERING / DRY EYE / EYESTRAIN / READING GLASSES Thanks to MSI Anti-Flicker technology, a stable output current for the monitor is provided. It will help against dry eyes, eyestrain, and lowers the chance to need reading glasses in the future. 5-WAY NAVIGATOR OSD CONTROL The World’s First All-in-One PC with 5-Way Navigator for an easy OSD Control EASY MAINTENANCE DESIGN With the HDD Rapid Upgrade Design, maintaining or upgrading your 2.5" storage on PRO 22X will not be a nightmare any more. VESA MOUNTABLE Hook up the PRO 22X anywhere you’d like with its VESA mount support. Take it completely off your table/workspace, or mount it as a display. SEE MORE, DO MORE With the external output ports (HDMI), PRO 22X allows you to extend a second screen to pre-view your professional working data. With the second display, PRO 22X allows you to increase working efficiency with more possibilities in a large variety of situations. COUNTLESS OF SUCCESSFUL B2B PROJECTS Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.



Specification:



Display
HD type	Full HD
Tilt angle range	-5 - 15°
Panel type	IPS
Display diagonal	21.5"
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
Native aspect ratio	16:9
Processor
Processor generation	10th gen Intel® Core™ i3
Processor frequency	3.6 GHz
Processor boost frequency	4.3 GHz
Processor family	Intel® Core™ i3
Processor model	i3-10100
Processor cores	4
Processor cache	6 MB
Motherboard chipset	Intel H410
Processor manufacturer	Intel
Memory
Memory form factor	DIMM/SO-DIMM
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	2666 MHz
Hard drive
Storage media	SSD
Total storage capacity	256 GB
Storage
Storage media	SSD
Total storage capacity	256 GB
Optical drive type	No
Card reader integrated	Yes
SSD interface	NVMe
SSD capacity	256 GB
Number of SSDs installed	1
SSD form factor	M.2
Total SSDs capacity	256 GB
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics 630
Audio
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	4 W
Camera
Built-in camera	No
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Combo headphone/mic port	Yes
USB 2.0 ports quantity	2
HDMI ports quantity	2
Headphone outputs	1
Microphone in	Yes
Ethernet LAN (RJ-45) ports	2
Technical details
Product type	All-in-One PC
Performance
Product type	All-in-One PC
Motherboard chipset	Intel H410
Software
Operating system installed	Windows 11 Home
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel Clear Video Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Power
AC adapter power	120 W
Multimedia
Built-in camera	No
Weight & dimensions
Package weight	18.4 lbs (8.35 kg)
Width (with stand)	19.7" (500 mm)
Depth (with stand)	8.27" (210 mm)
Height (with stand)	14.6" (370 mm)
Weight (with stand)	12.8 lbs (5.82 kg)
Packaging data
Package weight	18.4 lbs (8.35 kg)
Other features
On-board graphics card	Yes
SSD interface	NVMe
SSD capacity	256 GB
Processor manufacturer	Intel
Number of SSDs installed	1
