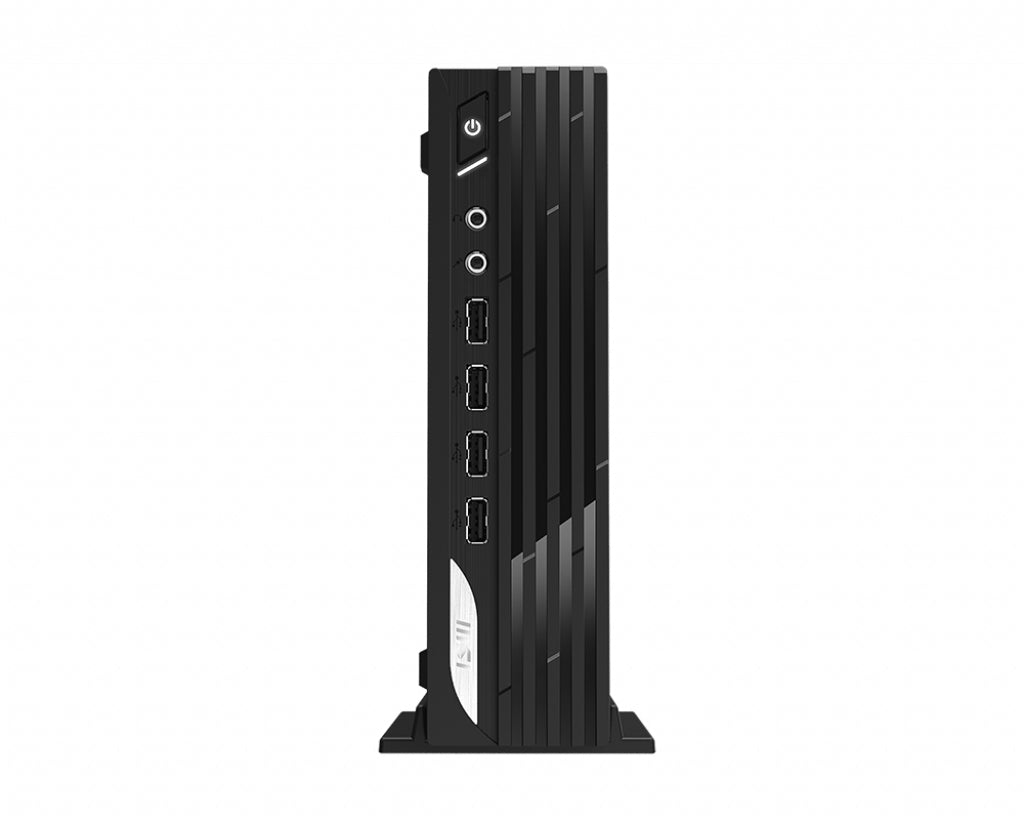

PRODP2111MA223 - MSI PRO DP21 11MA-223US MFF

We always focus on how to improve the efficiency, stability and flexibility for users in any kinds of situations. Tiny Yet Powerful Take a huge leap in performance and experience a boosted and faster rendering for the applications in this tiny yet powerful business center that you work everyday. Opportunity To The World for Your E-Commerce / M-Commerce It is indispensable to have a stable data & information platform for your growing E-commerce/ M-commerce. Ready For Various Scenarios We always focus on how to improve the efficiency, stability and flexibility for users in any kinds of situations. 2 COM Ports Design With multiple COM and USB ports it will let you fully connect to your POS devices such as barcode scanners, receipt printers and many more. Its COM ports can also communicate with the programmable logic controllers (PLCs) or with other modules such as operator/HMI, motor controllers, a robot or vision system in the intelligent factory. FW TPM SUPPORT FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security. Wi-Fi 6 Technology Featuring the latest Wi-Fi 6 802.11ax with Bluetooth 5.2 version, and speed up to 2.4Gbps, which is 3x times faster than the Ethernet LAN. The latency is also 75% lower than the previous generation. With Wi-Fi 6 technology, the connectivity to the world will be unlimited. MSI Center The MSI Center takes optimization to the next level with A.I.; it helps to prioritize & allocate the resource on your hand to accelerate the performance of those software which you work with everyday. It also helps you to find the photos or materials with Tag and brings the most efficient experience for your daily works. VESA Mountable Design The VESA Mountable design allows you to hook up PRO DP21 anywhere you like that not only improves the flexibility while working with it but also let users have a good space management at home or in the office. Easy Maintenance Users can easily upgrade one M.2 SSD, two 2.5” HDD/SSD and two DIMMs of memory by disassembling the side covers. Make PRO DP21 an even flexible desktop and also reduce the time wasting on upgrading. Various IO Ports With a various array of I/O ports, it can connect all devices you need at the same time so you can multi-task with those devices to make you work more efficiently.



Specification:



Processor
Processor generation	10th gen Intel® Core™ i3
Processor cache	6 MB
Processor frequency	3.7 GHz
Processor model	i3-10105
Processor manufacturer	Intel
Processor boost frequency	4.4 GHz
Processor cores	4
Processor family	Intel® Core™ i3
Memory
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
Storage
Storage media	SSD
Optical drive type	No
SSD interface	NVMe
SSD capacity	250 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	250 GB
SSD form factor	M.2
Total SSDs capacity	250 GB
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics 630
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.1
Wi-Fi standards	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Dual Band Wireless-AC 9462
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI version	2.0
USB 2.0 ports quantity	4
Microphone in	Yes
Line-out	Yes
Line-in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
DisplayPort version	1.4
Technical details
Intel 64	Yes
Product type	Mini PC
Product colour	Black
Chassis type	Small Desktop
Motherboard chipset	Intel H510
Design
VESA mounting	Yes
Product colour	Black
Chassis type	Small Desktop
Performance
Product type	Mini PC
Motherboard chipset	Intel H510
Software
Operating system installed	Windows 10 Home
Windows 11 free upgrade	Yes
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Clear Video Technology	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel 64	Yes
Power
Power supply	120 W
Ergonomics
VESA mounting	Yes
Weight & dimensions
Width	8.03" (204 mm)
Depth	8.19" (208 mm)
Height	2.16" (54.8 mm)
Weight	2.8 lbs (1.27 kg)
Packaging content
VESA mount included	Yes
Cables included	AC
Display included	No
Other features
VESA mounting	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
