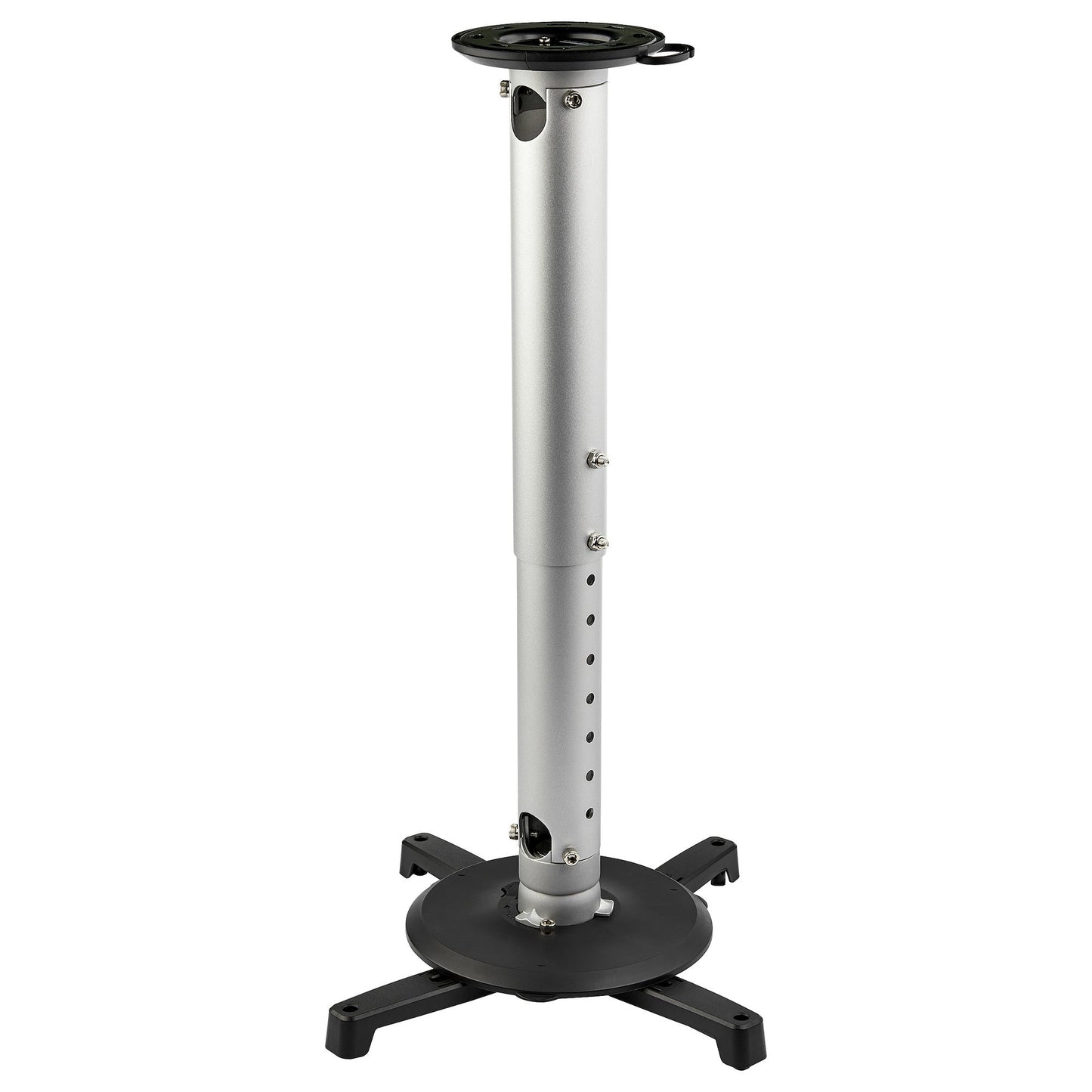

PROJCEILMNT2 - StarTech.com HEAVY DUTY HEIGHT ADJUSTABLE CEILING PROJECTOR MOUNT UP TO 33LB/15KG - BALL JOIN

Universal Projector Ceiling Mount | Up to 22.7” Extension from Ceiling | Steel / Aluminum

This projector ceiling mount kit lets you easily install a projector from 5” to 22.7” (127.7 to 577.7 mm) away from the ceiling. It’s ideal for classrooms, boardrooms, hospitality venues, and many other meeting spaces.

Wide Compatibility with Projectors

Supporting a wide range of projector brands, the universal projector ceiling mount features a universal mounting pattern of 12.8" (325 mm) diameter.

Fine-Tune for Optimum Viewing

After the projector ceiling mount is installed, you can fine-tune the angle for optimum viewing. The locking ball join on the projector mount provides 360-degree swivel, +/- 25 degree horizontal/vertical tilt.

Heavy-duty Steel and Aluminum Construction

With its robust steel and aluminum construction and solid wall plate, the ceiling mount projector stand supports a weight capacity of 33.3 lb. (15 kg). All hardware required for installation is included.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

PROJWALLMNT is backed by a StarTech.com 2-year warranty and free, lifetime technical support.

The StarTech.com Advantage

- HEIGHT ADJUSTABLE: Ceiling projector mount can be positioned at 5" from ceiling (low profile) or between 15.8" & 22.7" from ceiling (using extendable telescopic pole); Supports up to 33.3lb (15kg)
- OPTIMUM VIEWING ANGLE: Projector ceiling mount with ball joint design offers 360° rotation & +/- 25° tilt in any direction; Accessible lock switch allows the user to single-handedly secure projector
- THOUGHTFUL DESIGN: Projector plate/bracket has 4 arms with a universal mounting pattern of up to 12.8" (325mm) in dia. for projectors w/ 3 or 4 mounting holes; Heavy duty steel & aluminum construction



Specification:



Performance
Certification	CE, RoHS
Tilt angle range	-25 - 25°
Swivel angle	360°
Mounting type	Wall
Maximum weight capacity	33.1 lbs (15 kg)
Distance to the wall (min)	16.5" (42 cm)
Distance to the wall (max)	27.8" (70.5 cm)
Product colour	Black, Silver
Adjustable arm	Yes
Housing material	Aluminum, Plastic, Steel
Weight & dimensions
Package weight	9.7 lbs (4.4 kg)
Package width	11.2" (285 mm)
Package height	5.71" (145 mm)
Package depth	22.4" (570 mm)
Width	7.09" (180 mm)
Height	28.9" (735 mm)
Depth	7.68" (195 mm)
Weight	7.52 lbs (3.41 kg)
Packaging content
Screws included	Yes
Manual	Yes
Mounting kit	Yes
Number of anchors included	6
Number of screws	26
Number of washers included	4
Number of nuts	4
Screwdriver included	Yes
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case width	11.2" (285 mm)
Master (outer) case length	22.4" (570 mm)
Master (outer) case height	5.71" (145 mm)
Harmonized System (HS) code	83024190
Quantity per pack	1 pc(s)
