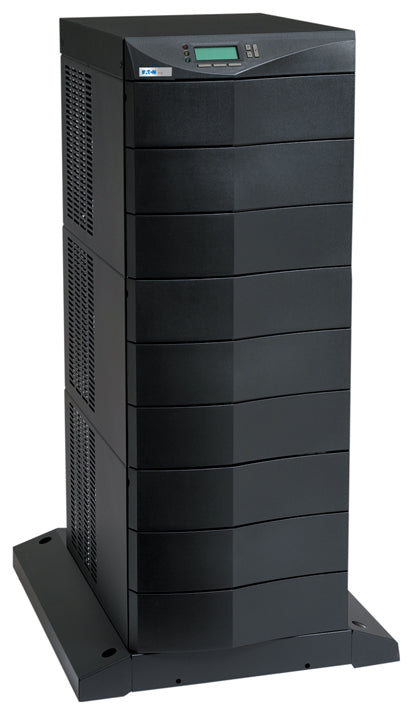

PW6S3K-LPD - Eaton 9170 3KVA 6.5MIN 6-SLOT IN:14-50P

The Eaton 9170+ UPS delivers premium online backup power and scalable battery runtimes for server farms, networks, telecommunications, Internet service providers and other critical applications. Leveraging a modular design, the 9170+ UPS offers N+X redundancy to eliminate system-level single point of failure. The 9170+ adapts to rapidly changing IT environments with scalable power and battery modules.



Specification:



Power
Input power factor	0.98
Output power	2500 W
Input operation voltage (min)	176 V
Input operation voltage (max)	276 V
Efficiency	88%
Emergency Power Off (EPO)	Yes
Output power capacity	3 kVA
Input frequency	50/60 Hz
Performance
Noise level	50 dB
Features
Input power factor	0.98
Output power	2500 W
Input operation voltage (min)	176 V
Input operation voltage (max)	276 V
Efficiency	88%
Emergency Power Off (EPO)	Yes
Noise level	50 dB
Output power capacity	3 kVA
Input frequency	50/60 Hz
Ports & interfaces
AC outlets quantity	16 AC outlet(s)
AC outlet types	NEMA 5–20R, NEMA L14-30R, NEMA L6-30R
Power plug	Terminal
Battery
Battery recharge time	4 h
Hot-swap battery	Yes
Design
Form factor	Rackmount/Tower
Product colour	Black
Certification	UL, CUL FCC A
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 40 °C
Operating relative humidity (H-H)	50 - 90%
Weight & dimensions
Weight	191.6 lbs (86.9 kg)
Width	16.9" (430 mm)
Height	33.3" (845 mm)
Depth	25.6" (650 mm)
Certificates
Certification	UL, CUL FCC A
Other features
Output connection type	2 x L14-30R & 2 x L6-30R & 12 x 5-20R
Management platform	SNMP/WEB
