Description

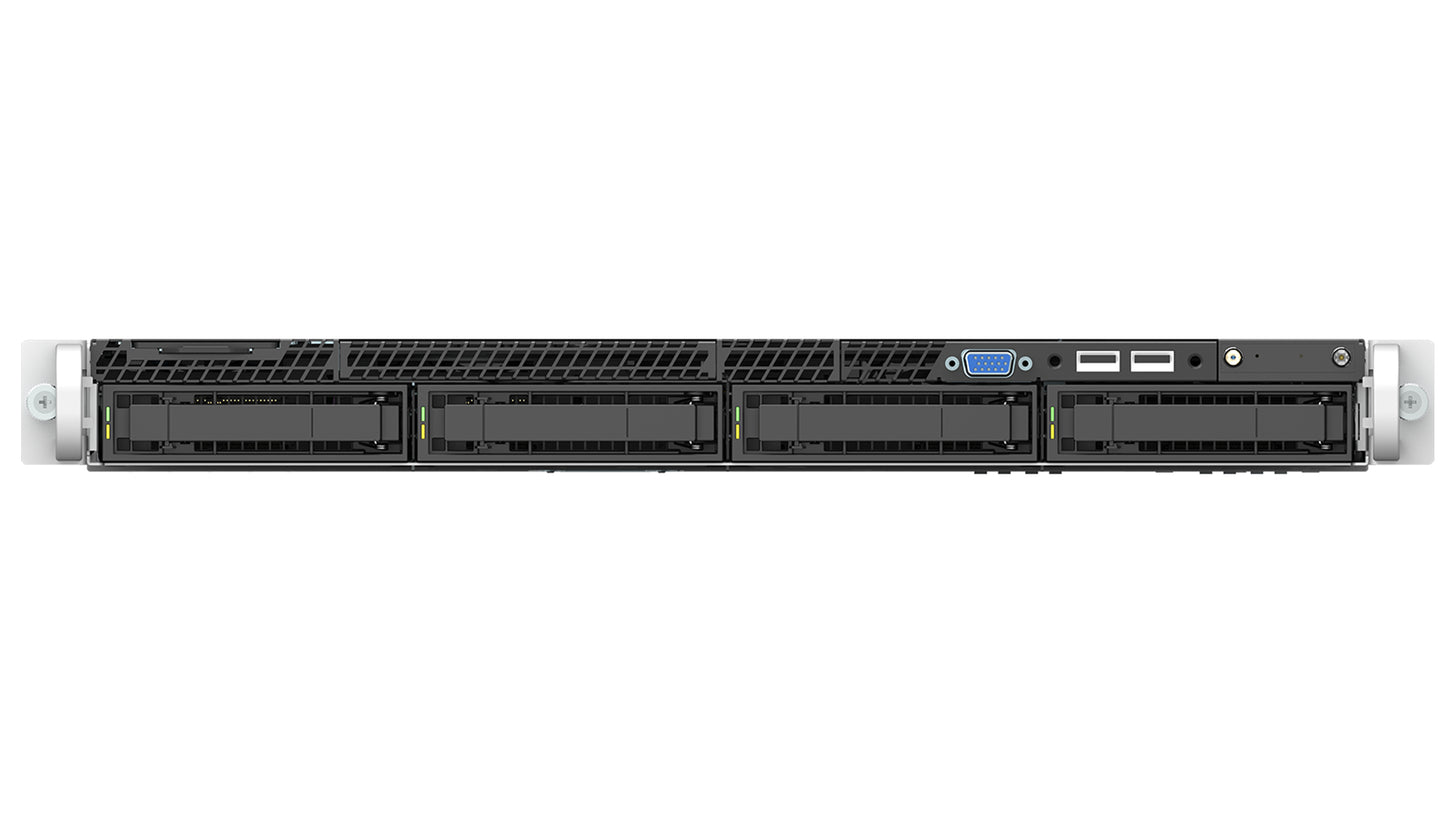

Intel ® Server System R1304WF0ZSR. Motherboard chipset: Intel® C624, Processor socket: LGA 3647 (Socket P), Processor manufacturer: Intel. Supported memory types: DDR4-SDRAM, Maximum internal memory: 6000 GB. Storage drive sizes supported: M.2, RAID levels: 0, 1, 10, SSD form factor: M.2. Ethernet interface type: Gigabit Ethernet. Export Control Classification Number (ECCN): 5A992C, Commodity Classification Automated Tracking System (CCATS): G157815L2, Compatible operating systems: VMware*|Ubuntu*
Specification:
| Hard drive | |
|---|---|
| RAID levels | 0, 1, 10 |
| Hot-swap HDD bays | Yes |
| Software | |
| Compatible operating systems | Windows Server 2016*|VMware*|Ubuntu*|SUSE Linux Enterprise Server 11 SP4* |
| Processor | |
| Built-in processor | No |
| Processor socket | LGA 3647 (Socket P) |
| Processor family | Intel® Xeon® Scalable |
| Number of processors supported | 2 |
| Motherboard chipset | Intel® C624 |
| Compatible processor series | Intel® Xeon® |
| Design | |
| Product type | System |
| Product series | Intel® Server System R1000WF Family |
| Product codename | Wolf Pass |
| Rack-Friendly board | Yes |
| Rack rails | No |
| LED indicators | Yes |
| Heat sink included | Yes |
| Heat sink | (2) 1U Standard Heat Sink FXXCA78X108HS |
| Product colour | Black, Silver |
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of DIMM slots | 24 |
| Maximum internal memory | 7500 GB |
| Storage | |
| Number of storage drives supported | 6 |
| Number of 3.5" bays | 4 |
| Supported storage drive interfaces | M.2 |
| RAID levels | 0, 1, 10 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5,3.5" |
| Supported storage drive types | HDD & SSD |
| SSD form factor | M.2 |
| Performance | |
| Intel Quiet System Technology (QST) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Fast Memory Access | Yes |
| Intel Rapid Storage Technology enterprise | Yes |
| Internal I/O Expansion Module x8 Gen 3 | 1 |
| Intel Server Customization Technology | Yes |
| Intel Quiet Thermal Technology | Yes |
| Intel Efficient Power Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel Advanced Management Technology | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Intel Remote Management Module Support | Yes |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Compatible operating systems | Windows Server 2016*|VMware*|Ubuntu*|SUSE Linux Enterprise Server 11 SP4* |
| Network | |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Ports & interfaces | |
| USB ports quantity | 5 |
| Serial ports quantity | 2 |
| Number of SATA connectors | 10 |
| Ethernet LAN (RJ-45) ports | 3 |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x24 Riser Super slots | 1 |
| PCI Express OCuLink connectors (NVMe support) | 4 |
| Features | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Compatible operating systems | Windows Server 2016*|VMware*|Ubuntu*|SUSE Linux Enterprise Server 11 SP4* |
| Harmonized System (HS) code | 84714100 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Number of UPI links | 2 |
| Intel® Optane™ DC Persistent Memory technology | Yes |
| Intel Node Manager | Yes |
| Backplanes | Included |
| Intel® Optane™ DC Persistent Memory Supported | Yes |
| Product codename | Wolf Pass |
| Technical details | |
| USB ports quantity | 5 |
| Product type | System |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Number of storage drives supported | 6 |
| Number of 3.5" bays | 4 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Connector for Intel I/O Expansion Module x8 Gen 3 | 1 |
| Intel Server Customization Technology | Yes |
| Intel Quiet Thermal Technology | Yes |
| Intel Efficient Power Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel Advanced Management Technology | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Rack-Friendly board | Yes |
| Rack rails | No |
| Intel Remote Management Module Support | Yes |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Heat sink included | Yes |
| Heat sink | (2) 1U Standard Heat Sink FXXCA78X108HS |
| CPU configuration (max) | 2 |
| Chassis type | Rack (1U) |
| Target market | Mainstream |
| Supported RAID configuration | SW RAID 0, 1, 10, optional 5 |
| Supported board | Intel Server Board S2600WFTR |
| Status | Launched |
| Riser slot 2 number of lanes | 24 |
| Riser slot 1 number of lanes | 24 |
| Redundant fans | No |
| Optical drive supported | Yes |
| Launch date | Q2'19 |
| Included riser slot 1 configuration(s) | 1x PCIe Gen3 x16 |
| Extended warranty available for purchase (select countries) | Yes |
| Expected discontinuance date | 2023 |
| Riser Slot 2 configuration | 1x PCIe Gen3 x16 |
| PCI Express x24 Riser Super slots | 1 |
| Harmonized System (HS) code | 84714100 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Colour | |
| Product colour | Black, Silver |
| Indication | |
| LED indicators | Yes |
| Processor special features | |
| Intel Quiet System Technology (QST) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Fast Memory Access | Yes |
| Intel Rapid Storage Technology enterprise | Yes |
| Internal I/O Expansion Module x8 Gen 3 | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Connector for Intel I/O Expansion Module x8 Gen 3 | 1 |
| Intel Server Customization Technology | Yes |
| Intel Quiet Thermal Technology | Yes |
| Intel Efficient Power Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel Advanced Management Technology | Yes |
| Intel Remote Management Module Support | Yes |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Intel® Optane™ Memory Ready | No |
| Power | |
| Number of main power supplies | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply type | AC |
| Power supply | 1100 W |
| Number of power supply units | 1 |
| Thermal Design Power (TDP) | 165 W |
| Weight & dimensions | |
| Width | 16.9" (430 mm) |
| Height | 1.72" (43.6 mm) |
| Depth | 28" (710 mm) |
| Other features | |
| Product type | System |
| On-board graphics card | No |
| CPU configuration (max) | 2 |
| Product series | Intel® Server System R1000WF Family |
| Product codename | Wolf Pass |
| Target market | Mainstream |
| Supported RAID configuration | SW RAID 0, 1, 10, optional 5 |
| Supported board | Intel Server Board S2600WFTR |
| Status | Launched |
| Riser slot 2 number of lanes | 24 |
| Riser slot 1 number of lanes | 24 |
| Redundant fans | No |
| Optical drive supported | Yes |
| Launch date | Q2'19 |
| Included riser slot 1 configuration(s) | 1x PCIe Gen3 x16 |
| Extended warranty available for purchase (select countries) | Yes |
| Expected discontinuance date | 2023 |
| Riser Slot 2 configuration | 1x PCIe Gen3 x16 |
