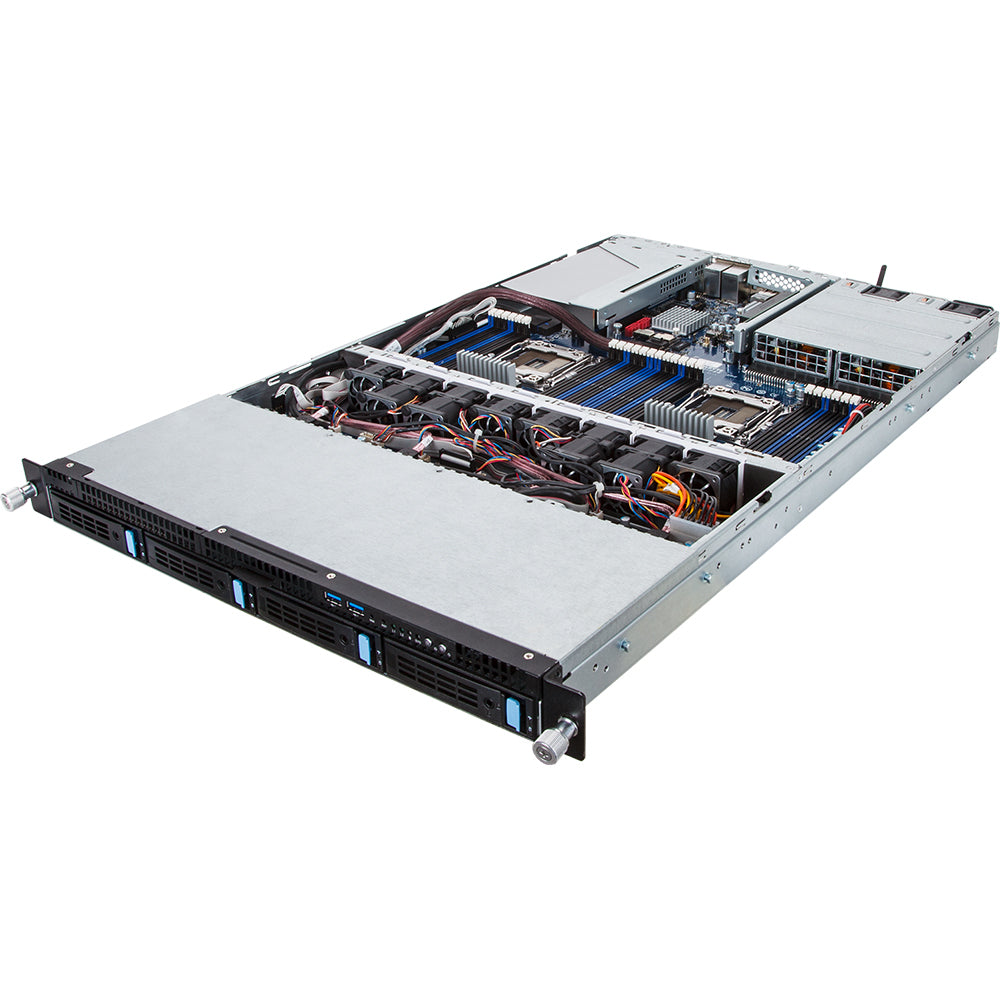

Gigabyte R180-F34 1U BAREBONE SYSTEM
Gigabyte R180-F34 1U BAREBONE SYSTEM
SKU:R180-F34
Regular price
$1,796.80 USD
Regular price
Sale price
$1,796.80 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Hard drive | |
|---|---|
| RAID levels | 0,1,5,10 |
| Hot-swap HDD bays | Yes |
| Optical drive | |
| Optical drive type | No |
| Software | |
| Compatible operating systems | Windows Server 2008 R2 (x64) Windows Server 2012 (x64) Windows Server 2012 R2 (x64) Windows Server 2016 Red Hat Enterprise Linux 6.7 (x86/x64) Red Hat Enterprise Linux 7.2 (x64) SUSE Linux Enterprise Server 11.4 (x86/x64) SUSE Linux Enterprise Server 12 (x64) Ubuntu 12.04 LTS (x86/x64) Ubuntu 14.04 LTS (x86/x64) VMware ESXi 5.1 U2 VMware ESXi 5.5 U2 VMware ESXi 6.0 U1 |
| Processor | |
| Built-in processor | No |
| Processor socket | LGA 2011-v3 |
| Number of processors supported | 2 |
| Motherboard chipset | Intel® C612 |
| Intel Xeon series | E5-2600 |
| Compatible processor series | Intel® Xeon® |
| Memory | |
| Supported UDIMM clock speeds | 1600,1866,2133,2400 MHz |
| Supported RDIMM clock speeds | 1600,1866,2133,2400 MHz |
| Supported memory types | DDR4-SDRAM |
| Number of DIMM slots | 24 |
| ECC | Yes |
| Storage | |
| Number of storage drives supported | 4 |
| Supported storage drive interfaces | Serial Attached SCSI (SAS), Serial ATA III |
| RAID levels | 0,1,5,10 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5,3.5" |
| Supported storage drive types | HDD & SSD |
| Performance | |
| Optical drive type | No |
| Compatible operating systems | Windows Server 2008 R2 (x64) Windows Server 2012 (x64) Windows Server 2012 R2 (x64) Windows Server 2016 Red Hat Enterprise Linux 6.7 (x86/x64) Red Hat Enterprise Linux 7.2 (x64) SUSE Linux Enterprise Server 11.4 (x86/x64) SUSE Linux Enterprise Server 12 (x64) Ubuntu 12.04 LTS (x86/x64) Ubuntu 14.04 LTS (x86/x64) VMware ESXi 5.1 U2 VMware ESXi 5.5 U2 VMware ESXi 6.0 U1 |
| Graphics | |
| On-board graphics adapter model | Aspeed AST2400 |
| Network | |
| LAN controller | Intel I350-BT2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Features | |
| Optical drive type | No |
| Compatible operating systems | Windows Server 2008 R2 (x64) Windows Server 2012 (x64) Windows Server 2012 R2 (x64) Windows Server 2016 Red Hat Enterprise Linux 6.7 (x86/x64) Red Hat Enterprise Linux 7.2 (x64) SUSE Linux Enterprise Server 11.4 (x86/x64) SUSE Linux Enterprise Server 12 (x64) Ubuntu 12.04 LTS (x86/x64) Ubuntu 14.04 LTS (x86/x64) VMware ESXi 5.1 U2 VMware ESXi 5.5 U2 VMware ESXi 6.0 U1 |
| Technical details | |
| Number of storage drives supported | 4 |
| Reset button | Yes |
| On/off switch | Yes |
| Chassis type | Rack (1U) |
| Colour | |
| Product colour | Black |
| Indication | |
| LED indicators | HDD, LAN, Power, System |
| Design | |
| Reset button | Yes |
| On/off switch | Yes |
| LED indicators | HDD, LAN, Power, System |
| Product colour | Black |
| Chassis type | Rack (1U) |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Number of redundant power supplies installed | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Weight & dimensions | |
| Width | 16.9" (430 mm) |
| Weight | 22 lbs (10 kg) |
| Height | 1.71" (43.5 mm) |
| Depth | 28" (712.4 mm) |
| Package width | 37.8" (959 mm) |
| Package depth | 23.1" (588 mm) |
| Package height | 9.76" (248 mm) |
| Packaging data | |
| Package width | 37.8" (959 mm) |
| Package depth | 23.1" (588 mm) |
| Package height | 9.76" (248 mm) |
| Other features | |
| Reset button | Yes |
