Description

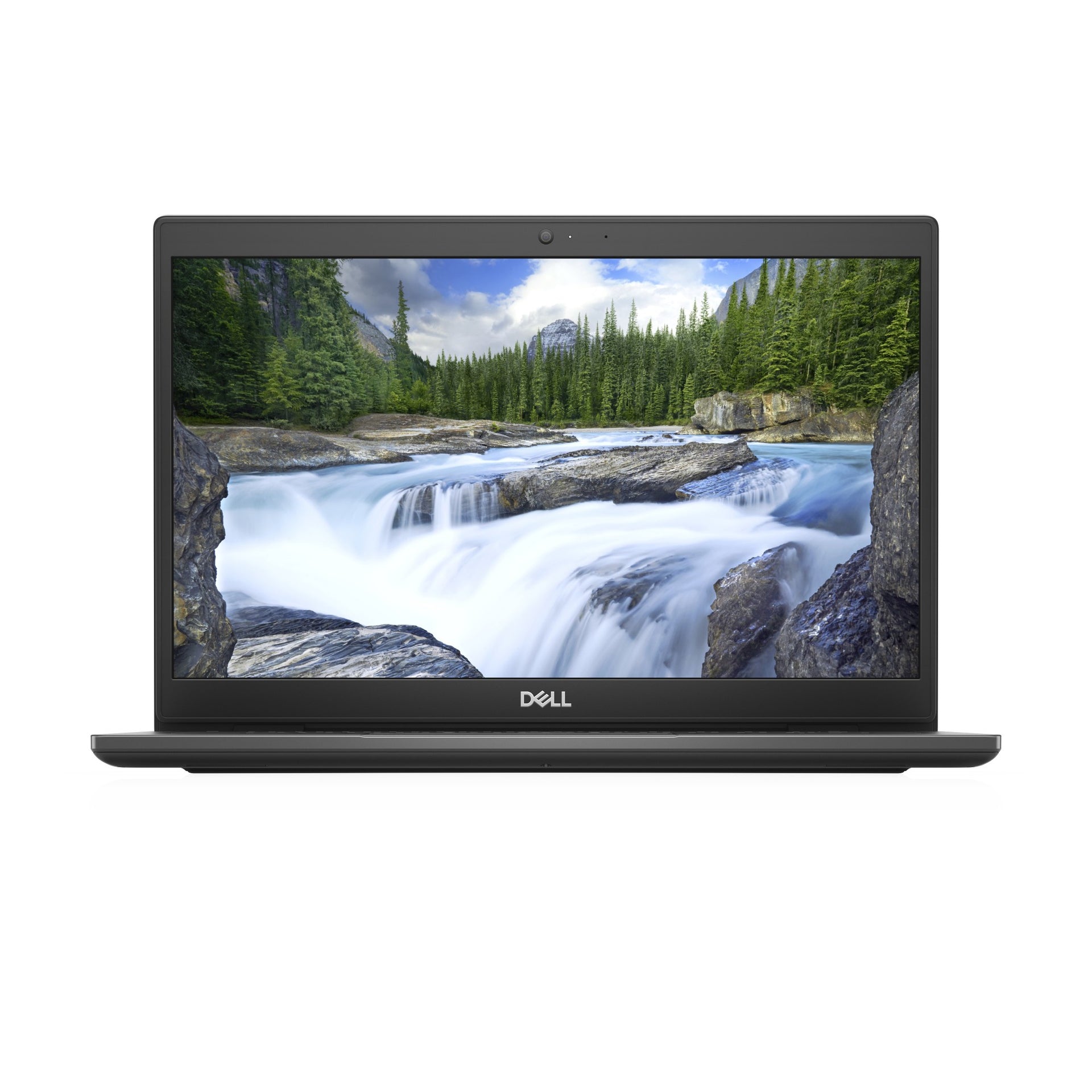

Smaller and faster than ever? Yes. Level-up your productivity with this 14" smart laptop. Customize to fit your needs with a vast array of options and speed your work with Dell Optimizer, now with ExpressConnect.
Specification:
| Hard drive | |
|---|---|
| RAID levels | 0,1,10 |
| Hot-swap HDD bays | Yes |
| Processor | |
| Maximum internal memory supported by processor | 512 GB |
| Processor socket | LGA 2011 (Socket R) |
| Processor family | Intel |
| Number of processors supported | 2 |
| Motherboard chipset | Intel® C602 |
| Intel Xeon series | E5-2600 |
| Compatible processor series | Intel® Xeon® E5 Family |
| Processor manufacturer | Intel |
| Design | |
| Product type | System |
| Product family | 2U server system |
| Product series | Intel R2000GL |
| Product codename | Grizzly Pass |
| Redundant fans support | Yes |
| Rack-Friendly board | Yes |
| Rack rails | No |
| Heat sink included | Yes |
| Heat sink | 2 |
| Chassis type | Rack (2U) |
| Memory | |
| Supported memory types | DDR3-SDRAM |
| Number of DIMM slots | 16 |
| Maximum internal memory | 512 GB |
| ECC | Yes |
| Storage | |
| Number of storage drives supported | 8 |
| Number of 2.5" bays | 8 |
| RAID levels | 0,1,10 |
| Hot-swap HDD bays | Yes |
| Embedded USB (eUSB) SSD option | Yes |
| Storage drive sizes supported | 2.5" |
| Performance | |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Internal I/O Expansion Module x8 Gen 3 | 1 |
| Intel Server Customization Technology | Yes |
| Intel Quiet Thermal Technology | Yes |
| Intel Efficient Power Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel Advanced Management Technology | Yes |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Intel Remote Management Module Support | Yes |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Integrated BMC with IPMI | Yes |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ports & interfaces | |
| USB ports quantity | 6 |
| USB 2.0 ports quantity | 6 |
| Serial ports quantity | 2 |
| Number of SATA connectors | 10 |
| InfiniBand | No |
| Ethernet LAN (RJ-45) ports | 4 |
| Expansion slots | |
| PCI Express x8 (Gen 3.x) slots | 6 |
| PCI Express x8 slots | 6 |
| PCI Express slots version | 3.0 |
| Features | |
| ARK ID | 67788 |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Integrated BMC with IPMI | Yes |
| Market segment | Server |
| Harmonized System (HS) code | 8473305100 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G145323 |
| Intel Node Manager | Yes |
| Backplanes | Included |
| Product codename | Grizzly Pass |
| Technical details | |
| ARK ID | 67788 |
| USB ports quantity | 6 |
| Product type | System |
| PCI Express x8 (Gen 3.x) slots | 6 |
| Packaging content | (1) Intel Server Board S2600GL4 in 2U chassis (16 DIMM), (1) Air duct, (1) Standard control panel, (1) Front 1 x VGA and 2 x USB, (8) 2.5†Hot-swap drive carriers with (1) Hot-swap backplane, (2) SFF8087 to SFF8087 cables, (2) CPU heat sinks, (2) Risers: 3 x 8 PCIe* slots on each, (1) 460W AC power Supply. |
| Number of storage drives supported | 8 |
| Number of 2.5" bays | 8 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Server Management Software | Yes |
| Connector for Intel I/O Expansion Module x8 Gen 3 | 1 |
| Maximum internal memory supported by processor | 512 GB |
| Intel Server Customization Technology | Yes |
| Intel Quiet Thermal Technology | Yes |
| Intel Efficient Power Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel Advanced Management Technology | Yes |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Redundant fans support | Yes |
| Rack-Friendly board | Yes |
| Rack rails | No |
| Intel Remote Management Module Support | Yes |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Integrated BMC with IPMI | Yes |
| InfiniBand | No |
| Heat sink included | Yes |
| Heat sink | 2 |
| Embedded USB (eUSB) SSD option | Yes |
| CPU configuration (max) | 2 |
| Chassis type | Rack (2U) |
| Target market | Small and Medium Business |
| Supported RAID configuration | Software RAID 1,0,10 optional 5 |
| Supported board | Intel Server Board S2600GL |
| Status | Discontinued |
| Redundant fans | Yes |
| Optical drive supported | Yes |
| Market segment | Server |
| Launch date | Q3'12 |
| Last change | 63903513 |
| FireWire support | No |
| Extended warranty available for purchase (select countries) | Yes |
| Expected discontinuance date | Q1'13 |
| Chassis dimensions | 16.93 x 27.95 x 3.44" |
| Additional information URL | http://www.intel.com/content/www/us/en/server-systems/server-board-s2600gz-gl-systems.html |
| 2.5" HDD support | Supports up to 8 hot-swap 2.5" drives |
| Maximum memory | 512 GB |
| Harmonized System (HS) code | 8473305100 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G145323 |
| Processor special features | |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Internal I/O Expansion Module x8 Gen 3 | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Server Management Software | Yes |
| Connector for Intel I/O Expansion Module x8 Gen 3 | 1 |
| Intel Server Customization Technology | Yes |
| Intel Quiet Thermal Technology | Yes |
| Intel Efficient Power Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel Advanced Management Technology | Yes |
| Intel Remote Management Module Support | Yes |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Power | |
| Number of redundant power supplies installed | 1 |
| Number of redundant power supplies supported | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply type | AC |
| Power supply | 460 W |
| Number of power supply units | 1 |
| Weight & dimensions | |
| Width | 16.9" (430 mm) |
| Height | 3.44" (87.3 mm) |
| Depth | 27.9" (709.9 mm) |
| Packaging data | |
| Packaging content | (1) Intel Server Board S2600GL4 in 2U chassis (16 DIMM), (1) Air duct, (1) Standard control panel, (1) Front 1 x VGA and 2 x USB, (8) 2.5†Hot-swap drive carriers with (1) Hot-swap backplane, (2) SFF8087 to SFF8087 cables, (2) CPU heat sinks, (2) Risers: 3 x 8 PCIe* slots on each, (1) 460W AC power Supply. |
| Other features | |
| Product type | System |
| On-board graphics adapter | Yes |
| CPU configuration (max) | 2 |
| Product family | 2U server system |
| Product series | Intel R2000GL |
| Product codename | Grizzly Pass |
| Target market | Small and Medium Business |
| Supported RAID configuration | Software RAID 1,0,10 optional 5 |
| Supported board | Intel Server Board S2600GL |
| Status | Discontinued |
| Redundant fans | Yes |
| Optical drive supported | Yes |
| Launch date | Q3'12 |
| Last change | 63903513 |
| FireWire support | No |
| Extended warranty available for purchase (select countries) | Yes |
| Expected discontinuance date | Q1'13 |
| Chassis dimensions | 16.93 x 27.95 x 3.44" |
| Additional information URL | http://www.intel.com/content/www/us/en/server-systems/server-board-s2600gz-gl-systems.html |
| 2.5" HDD support | Supports up to 8 hot-swap 2.5" drives |
| Maximum memory | 512 GB |
