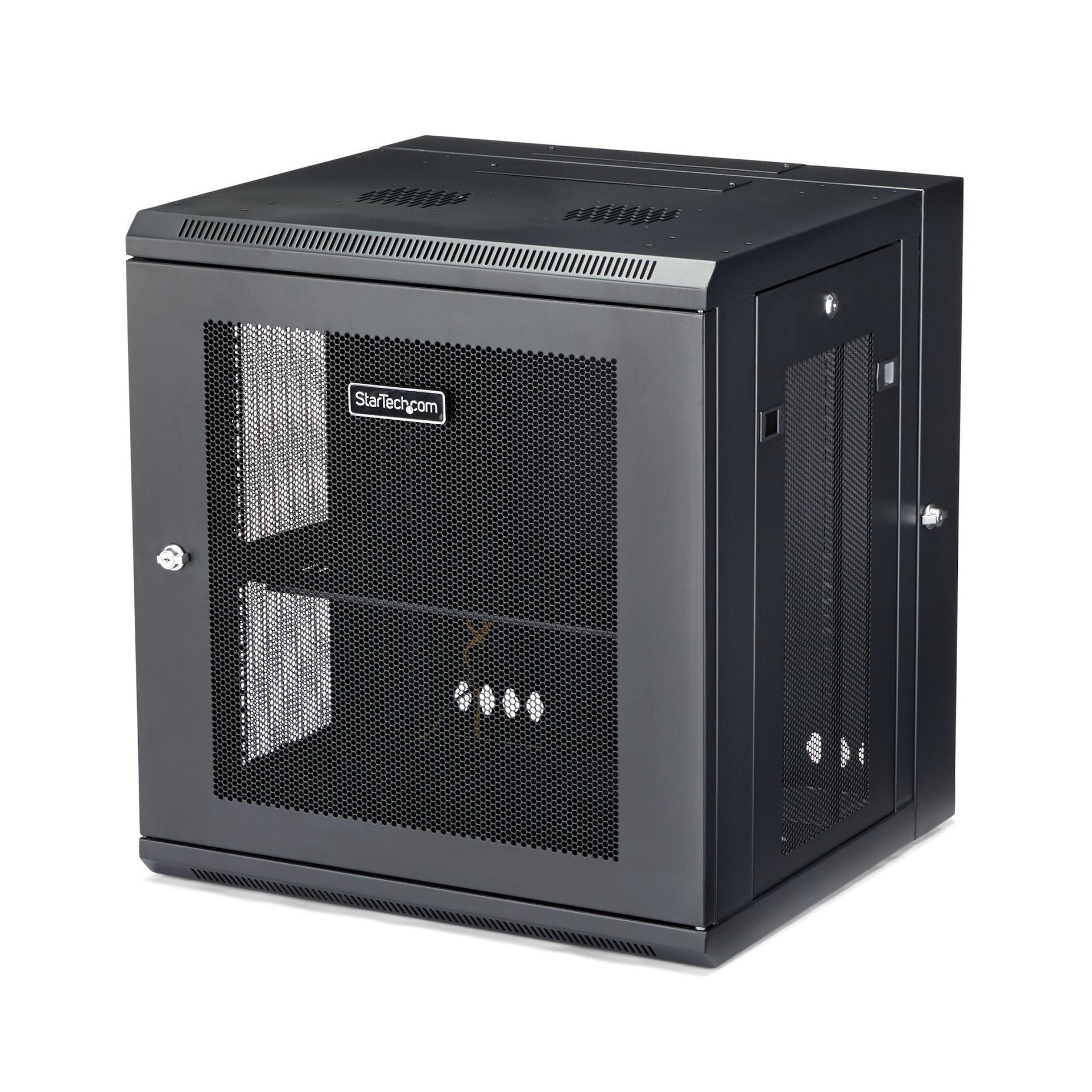

RK12WALHM - StarTech.com 12U 19 IN WALL MOUNT NETWORK CABINET - SWITCH DEPTH RACK ENCLOSURE - 180 HINGED

Securely mount your servers, network and telecom equipment to the wall, with this ventilated, lockable enclosure

This 12U server or network rack cabinet lets you mount your EIA-310 compliant equipment to the wall, in a secure enclosure that has a hinged rear door for easy access to your equipment. The enclosure features adjustable mounting depth from 2 to 16 in. to provide a robust storage solution for your rack-mount equipment.

To provide secure stability for your heaviest equipment, this rack offers 4-post mounting, supporting a higher weight capacity per U than 2-post racks and supporting a total load capacity of up to 200 lb. (90 kg).

Save space in your office or server room

Save valuable floor space by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for placing equipment that's not rack-mountable or storing your tools.

Easily access your servers and network equipment

The wall-mount network rack makes it easy to access your equipment and cabling, with a rear hinge that swings the enclosure away from the wall. By flipping the enclosure 180 degrees upon installation, you can reverse the direction of the hinge so that the enclosure can swing open from left or the right, depending on your preference.

The 12U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure.

For hassle-free cable management, the rack includes a 3 meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.

Securely protect your equipment

This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.

To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.

For simple and sturdy mounting, the rack’s mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.

The RK12WALHM is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage

- CONVENIENT & SECURE ACCESS: Wall mount network cabinet w/ 180° hinged design provides easy lockable access to rear of mounted devices. Flexible enclosure also features removable doors & side panels
- ACCESORIES INCLUDED: IT Data Rack includes complete set of accessories: a shelf (CABSHELFV1U), roll of hook-and-loop fastener, 50 cage nuts and screws, & 2 pairs of keys for the front and side panels
- STURDY CONSTRUCTION: 12U 19" EIA/ECA-310-E enclosed design, 200lb weight capacity, 21" deep with a max. 16" mounting depth, removable sides, locking reversible door, dual top cable hole, optional fans



Specification:



Weight & dimensions
Package depth	26.4" (670 mm)
Package width	20.9" (530 mm)
Package height	5.12" (130 mm)
Package weight	24.3 lbs (11 kg)
Inner height	21" (53.4 cm)
Mounting depth (max)	12" (30.5 cm)
Width	19.8" (504 mm)
Depth	12" (305 mm)
Height	25.2" (641 mm)
Weight	19 lbs (8.6 kg)
Maximum weight capacity	198.4 lbs (90 kg)
Packaging content
Manual	Yes
Nuts included	Yes
Number of nuts	48
Screws included	Yes
Number of screws	64
Number of washers included	48
Features
Frame type	Open
Product design	2-post
Rack capacity	12U
Cable management	No
Mounting hole shape	Square
Type	Wall mounted rack
Maximum weight capacity	198.4 lbs (90 kg)
Material	Steel
Product colour	Black
Certification	CE, REACH
Rack rails	Yes
Packaging data
Manual	Yes
Nuts included	Yes
Number of nuts	48
Package depth	26.4" (670 mm)
Package width	20.9" (530 mm)
Package height	5.12" (130 mm)
Package weight	24.3 lbs (11 kg)
Screws included	Yes
Number of screws	64
Number of washers included	48
Technical details
Package width	20.9" (530 mm)
Package height	5.12" (130 mm)
Type	Wall mounted rack
Compliance industry standards	EIA/ECA-310-E
Sustainability certificates	RoHS
Harmonized System (HS) code	85381000
Rack capacity	12U
Colour
Product colour	Black
Certificates
Certification	CE, REACH
Material
Material	Steel
Logistics data
Master (outer) case width	20.9" (530 mm)
Master (outer) case length	26" (660 mm)
Master (outer) case height	4.72" (120 mm)
Products per master (outer) case	1 pc(s)
Other features
Compliance industry standards	EIA/ECA-310-E
