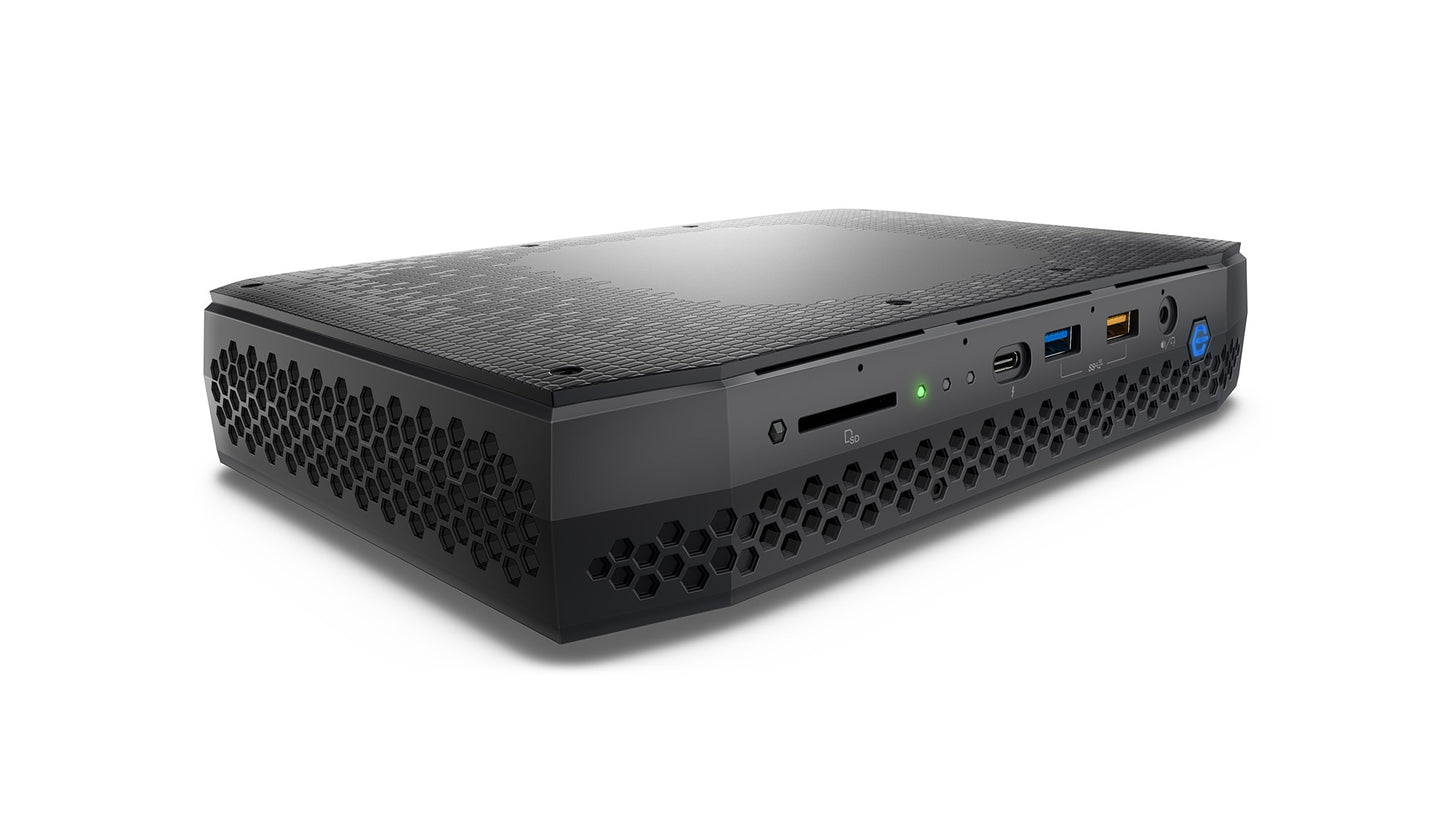

RNUC11PHKI7CAA0 - Intel NUC11 EXTREME MINI-PC I7 16GB

Intel NUC 11 Enthusiast. Processor family: Intel® Core™ i7, Processor model: i7-1165G7. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 512 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel Iris Xe Graphics, Discrete graphics card model: NVIDIA® GeForce RTX™ 2060. Operating system installed: Windows 10, Operating system architecture: 64-bit. Power supply: 150 W. Product type: Mini PC. Product color: Black



Specification:



Processor
Processor generation	11th gen Intel® Core™ i7
Processor lithography	10 nm
Memory types supported by processor	DDR4-SDRAM
Thermal Design Power (TDP)	150 W
Configurable TDP-down	12 W
Memory bandwidth supported by processor (max)	51.2 GB/s
Processor cache type	Smart Cache
Configurable TDP-down frequency	1.2 GHz
Processor cache	12 MB
Processor model	i7-1165G7
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.7 GHz
Processor threads	8
Processor cores	4
PCI Express slots version	3.0
Processor family	Intel® Core™ i7
Configurable TDP-up frequency	2.8 GHz
Configurable TDP-up	28 W
Memory
Non-ECC	Yes
ECC	No
Internal memory	16 GB
Memory layout (slots x size)	2 x 8 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Number of DIMM slots	2
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Memory bandwidth (max)	51.2 GB/s
Storage
Intel® Optane™ Memory module installed	Yes
Storage media	SSD
Number of storage drives installed	1
Number of storage drives supported	2
Optical drive type	No
SSD capacity	512 GB
Number of SSDs installed	1
Card reader integrated	Yes
Compatible memory cards	SDXC
Total storage capacity	512 GB
Intel® Optane™ Memory module capacity	32 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
Graphics
Discrete graphics card	Yes
On-board graphics card	No
Discrete graphics card model	NVIDIA® GeForce RTX™ 2060
On-board graphics card model	Intel Iris Xe Graphics
Number of discrete graphics cards	1
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet LAN data rates	2500 Mbit/s
WLAN controller model	Intel Wi-Fi 6 AX201
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
LAN controller	Intel I225-LM
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Total number of SATA connectors	1
Number of SATA III connectors	1
HDMI version	2.0a
S/PDIF out port	Yes
Mini DisplayPorts quantity	1
Microphone in	No
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
M.2 card slot (storage)	2280; 2280.110
DisplayPort version	1.4
Intel® Thunderbolt 4	Yes
Expansion slots
PCI Express slots version	3.0
Technical details
Intel® High Definition Audio (Intel® HD Audio)	Yes
Product type	Mini PC
Trusted Platform Module (TPM)	No
Product colour	Black
Motherboard form factor	UCFF
Audio output channels	7.1 channels
ARK ID	195961
Design
Product colour	Black
Intel® vPro™ Platform Eligibility	No
Performance
Embedded options available	No
Number of displays supported	4
ARK ID	195961
Product type	Mini PC
Trusted Platform Module (TPM)	No
Motherboard form factor	UCFF
Audio output channels	7.1 channels
Consumer infrared Rx sensor	Yes
Harmonized System (HS) code	8471500150
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Removable memory card slot	SDXC with UHS-II support
Status	Launched
Software
Operating system architecture	64-bit
Compatible operating systems	Windows 11 (64-bit), Windows 10 (64-bit)
Operating system installed	Windows 10
Processor special features
Embedded options available	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel Rapid Storage Technology	Yes
Intel® Optane™ Memory Ready	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Platform Trust Technology (Intel® PTT)	Yes
Intel® vPro™ Platform Eligibility	No
Power
Power supply	150 W
Packaging content
Display included	No
Other features
Number of displays supported	4
ARK ID	195961
USB ports quantity	10
Trusted Platform Module (TPM)	No
Number of SATA connectors	1
On-board graphics card	No
Processor manufacturer	Intel
Compatible operating systems	Windows 11 (64-bit), Windows 10 (64-bit)
Consumer infrared Rx sensor	Yes
Harmonized System (HS) code	8471500150
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G157815L2
