Description

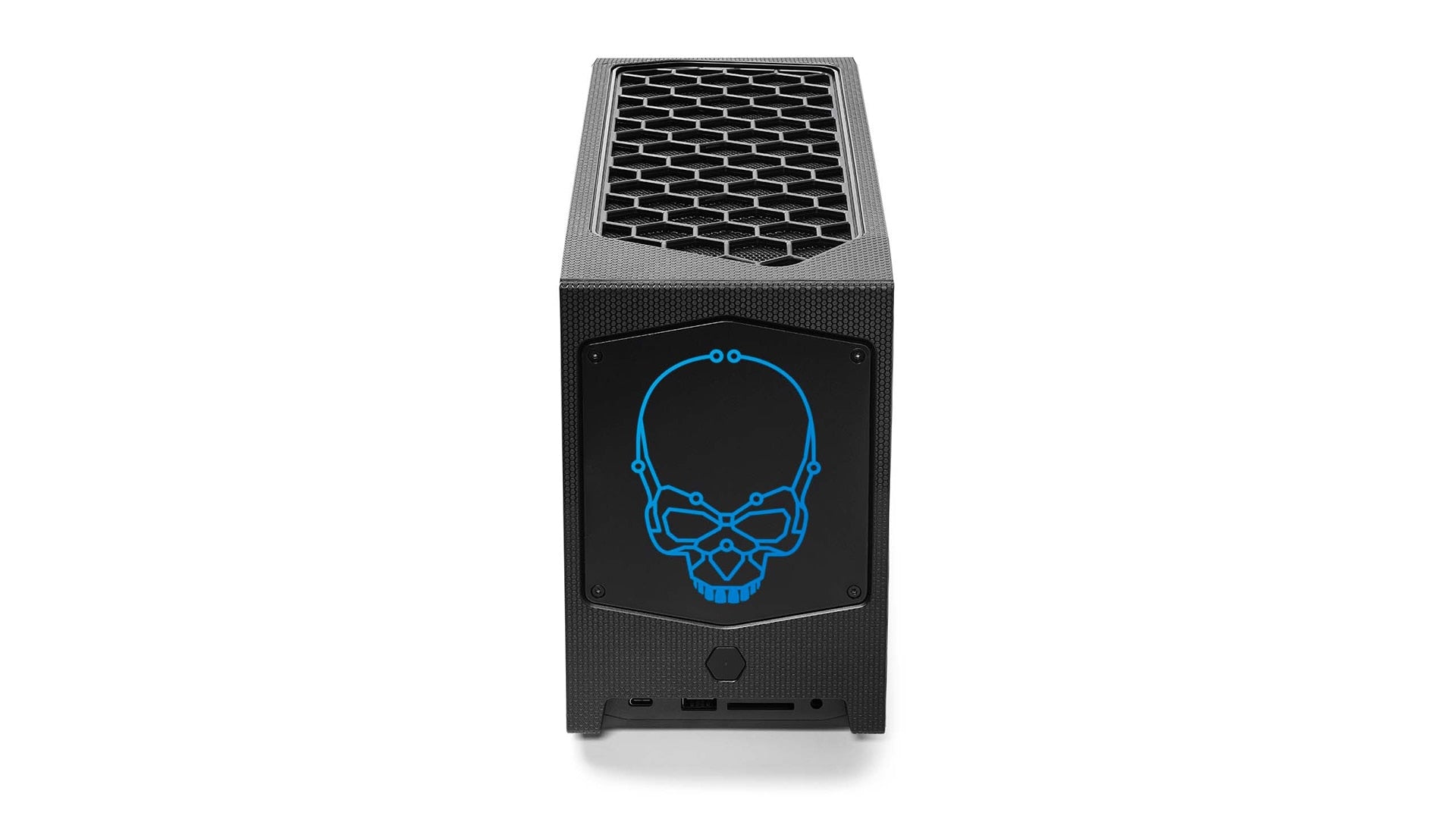

Intel NUC ® 12 Extreme Kit - NUC12DCMi7. Chassis type: 8L sized PC, Product type: PC barebone. Motherboard chipset: Intel Z690, BIOS type: EEPROM. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Serial ATA III, RAID levels: 0, 1. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.2. Cooling type: Active
Specification:
| Motherboard | |
|---|---|
| Number of processors supported | 1 |
| Processor | |
| Thermal Design Power (TDP) | 65 W |
| Built-in processor | Yes |
| Processor model | i7-12700 |
| Processor boost frequency | 4.9 GHz |
| Processor family | Intel® Core™ i7 |
| Number of processors supported | 1 |
| Processor manufacturer | Intel |
| CPU configuration (max) | 1 |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| Processor cache | 25 MB |
| Processor generation | 12th gen Intel® Core™ i7 |
| Memory | |
| Memory voltage | 1.2,1.35 V |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Memory bandwidth (max) | 51.2 GB/s |
| ECC | No |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 3200 MHz |
| Maximum internal memory | 64 GB |
| Non-ECC | Yes |
| Removable memory card slot | SDXC with UHS-II support |
| Number of DIMM slots | 2 |
| Video | |
| On-board graphics card | No |
| Graphics card family | Intel |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| Number of storage drives supported | 3 |
| RAID levels | 0, 1 |
| Compatible memory cards | SDXC |
| Card reader integrated | Yes |
| SSD form factor | M.2 |
| Graphics | |
| Number of displays supported | 3 |
| On-board graphics card | No |
| Graphics card family | Intel |
| On-board graphics card model | Intel UHD Graphics 770 |
| Discrete graphics card model | Not available |
| Audio | |
| Audio output channels | 7.1 channels |
| Built-in speaker(s) | No |
| Network | |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ports & interfaces | |
| Number of SATA III connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| HDMI version | 2.0b |
| Mini DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| M.2 card slot (wireless) | Intel® Wi-Fi 6E AX211 |
| USB version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| USB ports quantity | 11 |
| M.2 card slot (storage) | 2 via PCH + 1 via CPU (NVMe) |
| Thunderbolt 4 ports quantity | 2 |
| Expansion slots | |
| PCI Express slots version | 5, 4.0 |
| PCI Express x16 slots | 1 |
| Design | |
| Product type | PC barebone |
| Housing material | Metal, Plastic |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| ARK ID | 216964 |
| LED indicators | Yes |
| Cooling type | Active |
| Product colour | Black |
| Chassis type | 8L sized PC |
| Status | Launched |
| Performance | |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| BIOS type | EEPROM |
| Number of displays supported | 3 |
| Number of processors supported | 1 |
| Compatible operating systems | Windows 10, 64-bit* |
| Audio output channels | 7.1 channels |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Harmonized System (HS) code | 8471500150 |
| Export Control Classification Number (ECCN) | 5A992C |
| Software | |
| Compatible operating systems | Windows 10, 64-bit* |
| Processor special features | |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel Rapid Storage Technology | Yes |
| Embedded options available | No |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® vPro™ Platform Eligibility | No |
| Colour | |
| Product colour | Black |
| Technical details | |
| BIOS type | EEPROM |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel Rapid Storage Technology | Yes |
| Embedded options available | No |
| RAID levels | 0, 1 |
| Cooling type | Active |
| Chassis type | 8L sized PC |
| Sustainability certificates | ENERGY STAR, ErP, REACH, RoHS |
| ARK ID | 216964 |
| Internal I/O | |
| Number of SATA connectors | 2 |
| Packaging data | |
| Power cord included | Yes |
| Indication | |
| LED indicators | Yes |
| Features | |
| Number of displays supported | 3 |
| Logistics data | |
| Harmonized System (HS) code | 8471500150 |
| Power | |
| Power supply type | Internal power supply unit |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Weight & dimensions | |
| Width | 14.1" (357 mm) |
| Depth | 7.44" (189 mm) |
| Height | 4.72" (120 mm) |
| Packaging content | |
| Power cord included | Yes |
| Other features | |
| Embedded options available | No |
| Number of SATA connectors | 2 |
| Chassis type | 8L sized PC |
| Additional headers | 2x USB2.0, FRONT_PANEL |
| Launch date | Q1'22 |
