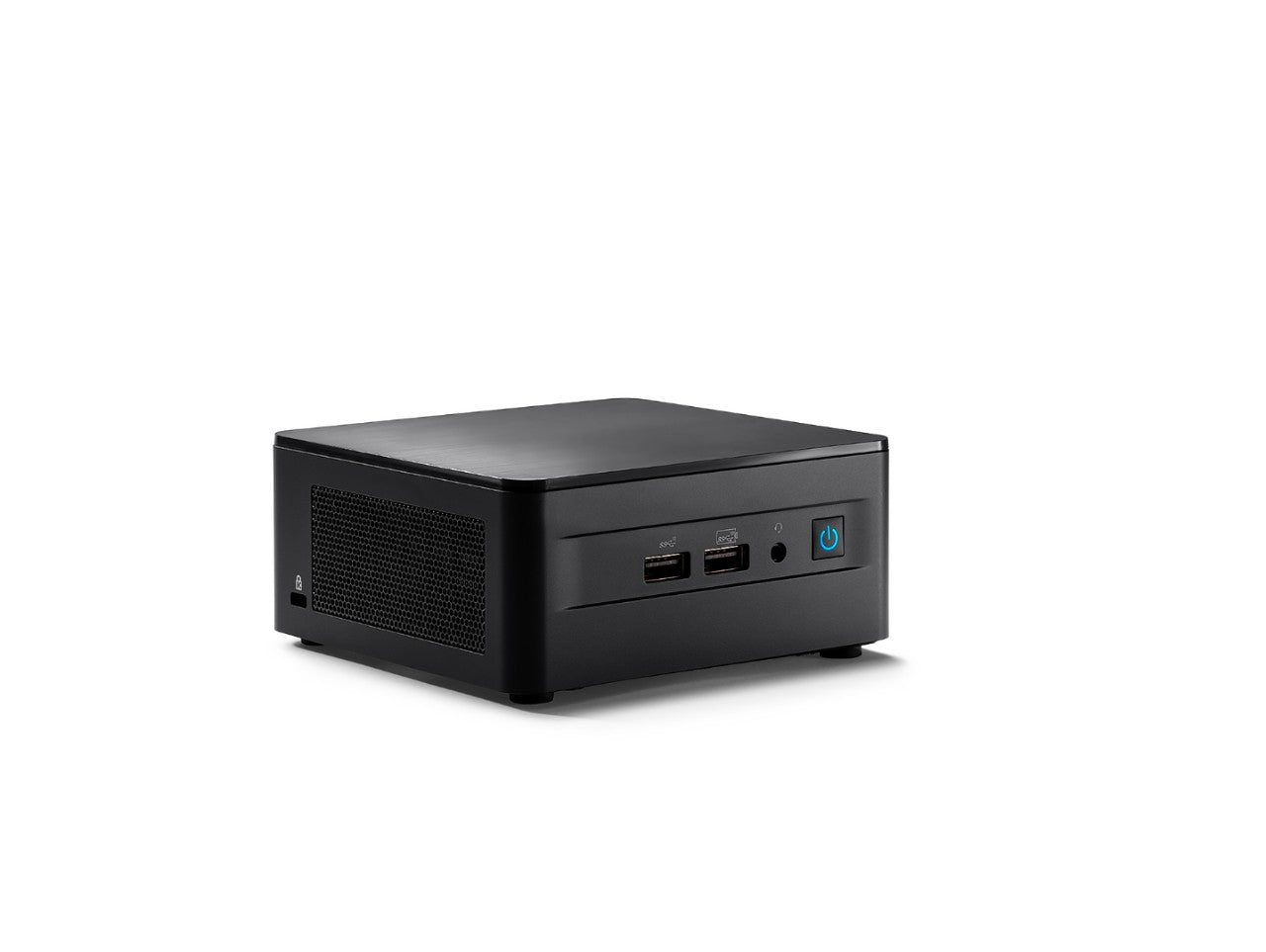

RNUC12WSHI50001 - Intel NUC 12 PRO KIT NUC12WSHI5, US CORD

Intel NUC 12 Pro Kit NUC12WSHi5. Chassis type: UCFF, Product type: Mini PC barebone. BIOS type: EEPROM. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD, Storage drive interface: M.2, Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.2. Cooling type: Active. Power supply: 120 W



Specification:



Processor
Processor generation	12th gen Intel® Core™ i5
Memory types supported by processor	DDR4-SDRAM
Thermal Design Power (TDP)	35 W
Configurable TDP-down	20 W
Processor cache	12 MB
Processor model	i5-1240P
Processor manufacturer	Intel
Processor boost frequency	4.4 GHz
Processor threads	16
Processor cores	12
PCI Express slots version	4.0
Processor family	Intel® Core™ i5
Memory
ECC	No
Internal memory	16 GB
Memory layout (slots x size)	2 x 8 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Number of DIMM slots	2
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Number of storage drives supported	3
Optical drive type	No
SSD interface	M.2
SSD capacity	256 GB
Number of SSDs installed	1
HDD size	2.5"
Card reader integrated	No
Total storage capacity	256 GB
SSD form factor	M.2
Total SSDs capacity	256 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel Iris Xe Graphics
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
WLAN controller model	Intel Wi-Fi 6E AX211
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
LAN controller	Intel I225-V
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Total number of SATA connectors	1
HDMI version	2.0b
USB 2.0 ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
DC-in jack	Yes
M.2 card slot (wireless)	2230 (E-key) (E)
M.2 card slot (storage)	2280 NVMe (M); 2242 SATA (B)
Serial port via internal header	No
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
Expansion slots
PCI Express slots version	4.0
Technical details
Intel® High Definition Audio (Intel® HD Audio)	Yes
Cable lock slot type	Kensington
Product type	Mini PC barebone
Product colour	Black
Chassis type	UCFF
Motherboard form factor	UCFF
Placement supported	Horizontal
Cable lock slot	Yes
Audio output channels	7.1 channels
ARK ID	232181
Sustainability certificates	China Energy Label (CEL), ENERGY STAR, ErP, REACH, RoHS
Design
Cable lock slot type	Kensington
Product colour	Black
Chassis type	UCFF
Placement supported	Horizontal
Cable lock slot	Yes
Performance
Embedded options available	No
BIOS type	EEPROM
Number of displays supported	4
Market positioning	Business
ARK ID	232181
Product type	Mini PC barebone
Motherboard form factor	UCFF
Built-in speaker(s)	No
Audio output channels	7.1 channels
Harmonized System (HS) code	8471500150
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Additional headers	Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
Status	Launched
Software
Operating system architecture	64-bit
Compatible operating systems	Windows 10 IoT Enterprise*
Operating system installed	Windows 10 IoT Enterprise
Processor special features
Embedded options available	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel ME Firmware Version	16
Intel® Optane™ Memory Ready	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Platform Trust Technology (Intel® PTT)	Yes
Power
Power supply	120 W
DC input voltage	12 - 20 V
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Sustainability
Sustainability certificates	China Energy Label (CEL), ENERGY STAR, ErP, REACH, RoHS
Weight & dimensions
Width	4.61" (117 mm)
Depth	4.41" (112 mm)
Height	2.13" (54 mm)
Packaging content
Display included	No
Logistics data
Harmonized System (HS) code	8471500150
Other features
Number of displays supported	4
ARK ID	232181
USB ports quantity	4
Number of SATA connectors	1
On-board graphics card	No
Processor manufacturer	Intel
Compatible operating systems	Windows 10 IoT Enterprise*
Built-in speaker(s)	No
Harmonized System (HS) code	8471500150
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Additional headers	Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
