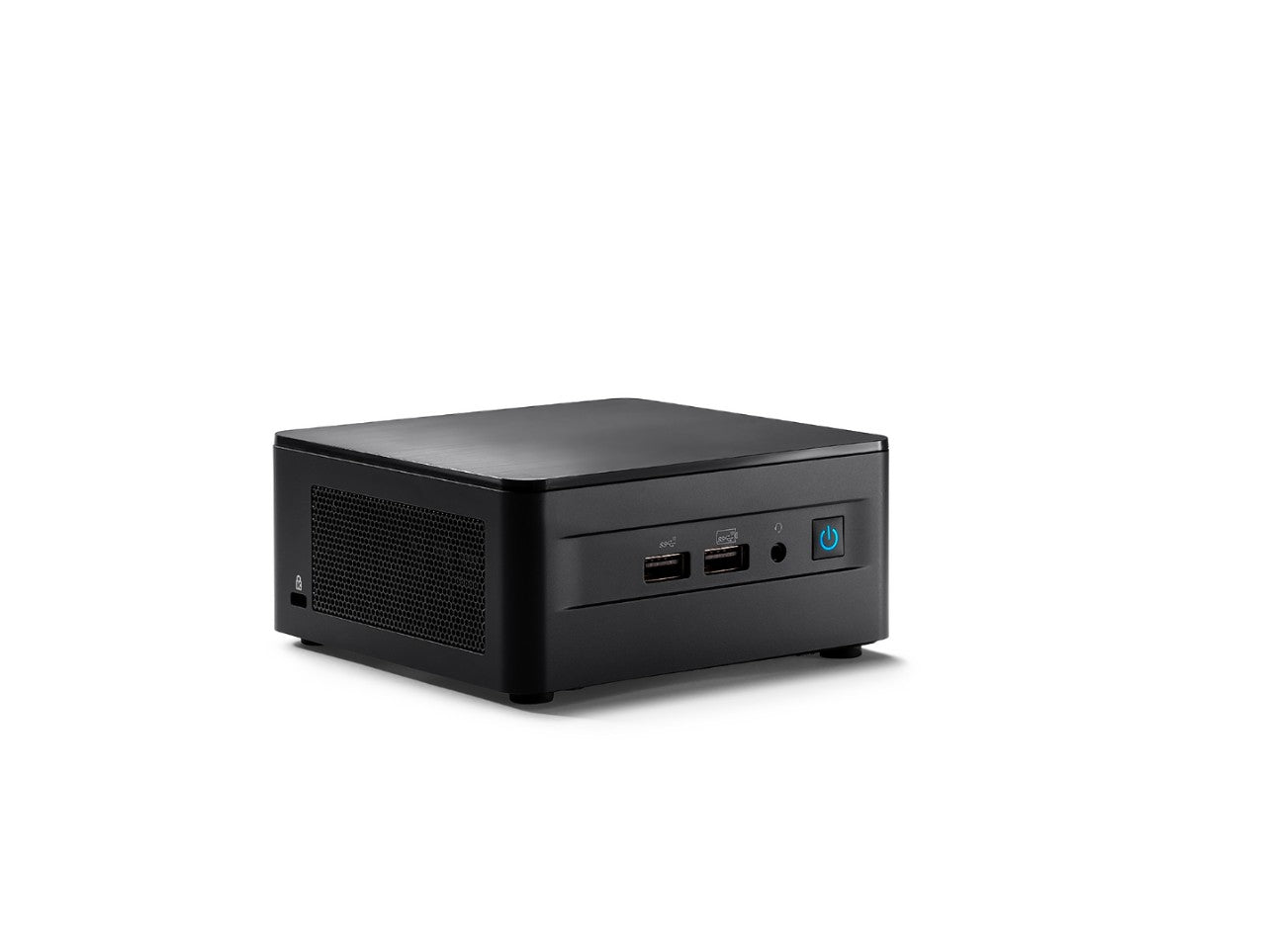

RNUC12WSHV50000 - Intel WALL STREET CANYON V5 TALL NUC

Intel NUC 12 Pro Kit NUC12WSHv5. Chassis type: UCFF, Product type: Mini PC barebone. BIOS type: EEPROM. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD, Storage drive interface: M.2, Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.2. Cooling type: Active. Power supply: 120 W



Specification:



Motherboard
Motherboard form factor	UCFF
Number of processors supported	1
Processor
Thermal Design Power (TDP)	35 W
Built-in processor	Yes
Processor model	i5-1250P
Processor boost frequency	4.4 GHz
Processor threads	16
Processor cores	12
Processor family	Intel® Core™ i5
Number of processors supported	1
Processor manufacturer	Intel
CPU configuration (max)	1
Processor cache	12 MB
Processor generation	12th gen Intel® Core™ i5
Memory
Memory voltage	1.2 V
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
ECC	No
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	3200 MHz
Maximum internal memory	64 GB
Number of DIMM slots	2
Video
On-board graphics card	No
Graphics card family	Intel
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2,2.5
Storage drive interface	M.2, Serial ATA III
Number of storage drives supported	3
Card reader integrated	No
SSD form factor	M.2
NVMe	Yes
Graphics
Maximum resolution	7680 x 4320 pixels
Number of displays supported	4
On-board graphics card	No
Graphics card family	Intel
On-board graphics card model	Intel Iris Xe Graphics
Audio
Intel® High Definition Audio (Intel® HD Audio)	Yes
Audio output channels	7.1 channels
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth version	5.2
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Intel I225-LM
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ports & interfaces
Serial port via internal header	No
Combo headphone/mic port	Yes
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
HDMI version	2.0b
DisplayPorts quantity	1
USB 2.0 ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
M.2 card slot (wireless)	2230 (E-key) (E)
USB ports quantity	4
M.2 card slot (storage)	2280 NVMe (M); 2242 SATA (B)
Thunderbolt 4 ports quantity	2
Expansion slots
PCI Express slots version	4.0
Design
Motherboard form factor	UCFF
Product type	Mini PC barebone
Cable lock slot type	Kensington
Cable lock slot	Yes
ARK ID	121632
On/off switch	Yes
LED indicators	Yes
Cooling type	Active
Product colour	Black
Chassis type	UCFF
Status	Launched
Performance
Motherboard form factor	UCFF
Maximum resolution	7680 x 4320 pixels
Windows operating systems supported	Windows 10 IoT Enterprise, Windows 10 x64, Windows 11 x64
Linux operating systems supported	Yes
BIOS type	EEPROM
Number of displays supported	4
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Number of processors supported	1
Compatible operating systems	Windows 10 IoT Enterprise*|Linux*
Audio output channels	7.1 channels
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Harmonized System (HS) code	8471500150
Export Control Classification Number (ECCN)	5A992C
Software
Compatible operating systems	Windows 10 IoT Enterprise*|Linux*
Processor special features
Intel ME Firmware Version	16
Intel Stable Image Platform Program (SIPP)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Trusted Execution Technology	Yes
Intel Flex Memory Access	Yes
Execute Disable Bit	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Optane™ Memory Ready	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Embedded options available	No
Intel Virtualization Technology (VT-x)	Yes
Intel® vPro™ Platform Eligibility	Yes
Colour
Product colour	Black
Power
DC input voltage	12 - 20 V
Power supply type	External AC adapter
Power supply	120 W
Technical details
BIOS type	EEPROM
Intel® AES New Instructions (Intel® AES-NI)	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Embedded options available	No
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Processor cores	12
Cooling type	Active
Chassis type	UCFF
Sustainability certificates	China Energy Label (CEL), ENERGY STAR, ErP, REACH, RoHS
ARK ID	121632
Internal I/O
Number of SATA connectors	1
Packaging data
Power cord included	Yes
Indication
LED indicators	Yes
Management features
On/off switch	Yes
Features
Number of displays supported	4
Logistics data
Harmonized System (HS) code	8471500150
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	4.61" (117 mm)
Depth	4.41" (112 mm)
Height	2.13" (54 mm)
Packaging content
Power cord included	Yes
Other features
DC input voltage	12 - 20 V
Embedded options available	No
Number of SATA connectors	1
HDD size	2.5"
Chassis type	UCFF
Additional headers	Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
Launch date	Q3'22
