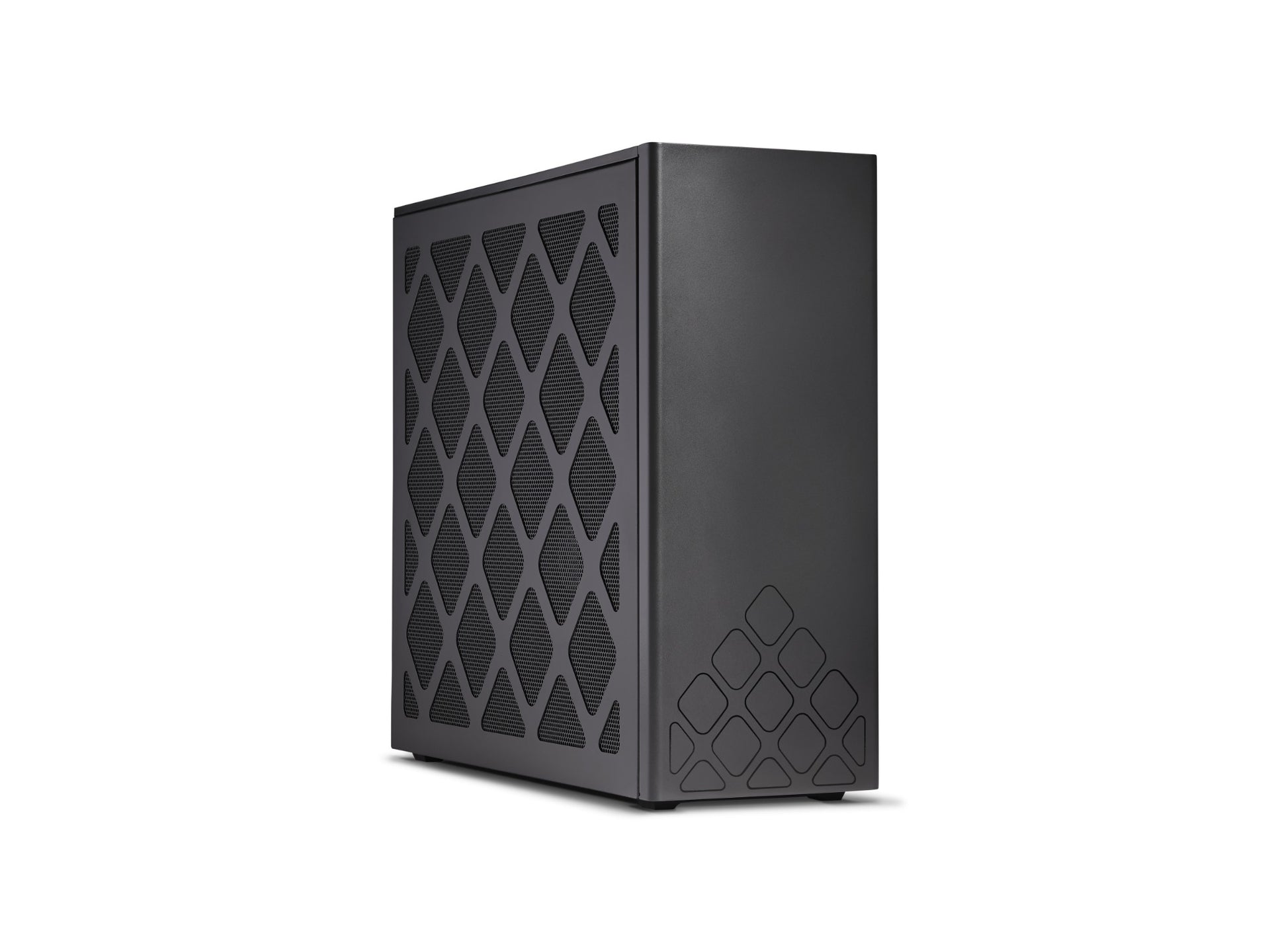

RNUC13RNGI70000 - Intel NUC 13 EXTREME KIT NUC13RNGI7

Intel® Virtualization Technology for Directed I/O (VT-d) Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments. Intel® Virtualization Technology (VT-x) Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions. Intel® AES New Instructions Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption. Max Turbo Frequency Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second. Intel® Rapid Storage Technology Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology. Integrated Graphics Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card. Intel® Optane™ Memory Supported Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration. RAID Configuration RAID (Redundant Array of Independent Disks) is a storage technology that combines multiple disk drive components into a single logical unit, and distributes data across the array defined by RAID levels, indicative of the level of redundancy and performance required. Intel® Platform Trust Technology (Intel® PTT) Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.



Specification:



Motherboard
Number of processors supported	1
Motherboard chipset	Intel Z690
Processor
Thermal Design Power (TDP)	125 W
Built-in processor	Yes
Processor model	i7-13700K
Processor boost frequency	5.4 GHz
Processor threads	24
Processor cores	16
Processor family	Intel® Core™ i7
Number of processors supported	1
Motherboard chipset	Intel Z690
L2 cache	24 MB
Processor manufacturer	Intel
Processor cache	30 MB
Processor generation	13th gen Intel® Core™ i7
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
ECC	No
Supported memory types	DDR-SDRAM
Maximum internal memory	64 GB
Number of DIMM slots	2
Video
On-board graphics card	No
Graphics card family	Intel
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	M.2,2.5
Storage drive interface	PCI Express, Serial ATA III
Number of storage drives supported	5
RAID levels	0, 1
SSD form factor	M.2
Graphics
Maximum resolution	7680 x 4320 pixels
Number of displays supported	3
On-board graphics card	No
Graphics card family	Intel
On-board graphics card model	Intel UHD Graphics 770
Audio
Audio output channels	7.1 channels
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Killer Wi-Fi 6E AX1690
Ports & interfaces
Combo headphone/mic port	Yes
Number of SATA III connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI version	2.1
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
M.2 card slot (wireless)	Killerâ„¢ Wi-Fi 6E AX1690i
USB ports quantity	11
M.2 card slot (storage)	2 via PCH + 1 via CPU (NVMe)
Thunderbolt 4 ports quantity	2
Expansion slots
PCI Express slots version	5, 4.0
Design
Product type	PC barebone
Cable lock slot type	Kensington
Cable lock slot	Yes
ARK ID	229784
On/off switch	Yes
LED indicators	Yes
Cooling type	Active
Product colour	Black
Chassis type	Desktop
Certification	IEC/EN/UL 60950-1 IEC/EN/UL 62368-1 FCC Part 15B/15C/15E CISPR/EN 55032/55024 ICES-003 VCCI 32 BSMI CNS 13438 KN 32/35 AS/NZS CISPR 32 EN 300 328 EN 301 893 EN 300 440 EN 301 489-1/3/17 EN 62311 AS/NZS 4268 AS/NZS 2772.2 ARPANSA
Product family	Intel NUC
Product series	Intel NUC kit
Product codename	Raptor Canyon
Status	Launched
Performance
Maximum resolution	7680 x 4320 pixels
Windows operating systems supported	Windows 11 x64
Linux operating systems supported	Yes
BIOS type	EEPROM
Number of displays supported	3
Operating system installed	No
Number of processors supported	1
Motherboard chipset	Intel Z690
Compatible operating systems	Windows 11 (64-bit)
Audio output channels	7.1 channels
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Harmonized System (HS) code	8471500150
Export Control Classification Number (ECCN)	5A992C
Software
Operating system installed	No
Compatible operating systems	Windows 11 (64-bit)
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Optane™ Memory Ready	Yes
Intel Rapid Storage Technology	Yes
Embedded options available	No
Intel® Platform Trust Technology (Intel® PTT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Colour
Product colour	Black
Technical details
BIOS type	EEPROM
Intel® AES New Instructions (Intel® AES-NI)	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes
Intel Rapid Storage Technology	Yes
Embedded options available	No
RAID levels	0, 1
Processor cores	16
Cooling type	Active
Chassis type	Desktop
Sustainability certificates	ENERGY STAR, RoHS
Introduction year	2022
Warranty period	3 year(s)
ARK ID	229784
Internal I/O
Number of SATA connectors	4
Packaging data
Power cord included	Yes
Indication
LED indicators	Yes
Management features
On/off switch	Yes
Features
Number of displays supported	3
Logistics data
Harmonized System (HS) code	8471500150
Power
Power supply type	Internal power supply unit
Power supply	750 W
Number of power supply units	1
Operational conditions
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	0 - 35 °C
Certificates
Certification	IEC/EN/UL 60950-1 IEC/EN/UL 62368-1 FCC Part 15B/15C/15E CISPR/EN 55032/55024 ICES-003 VCCI 32 BSMI CNS 13438 KN 32/35 AS/NZS CISPR 32 EN 300 328 EN 301 893 EN 300 440 EN 301 489-1/3/17 EN 62311 AS/NZS 4268 AS/NZS 2772.2 ARPANSA
Weight & dimensions
Width	13.3" (337 mm)
Depth	12.5" (318 mm)
Height	5.08" (129 mm)
Packaging content
Power cord included	Yes
Other features
Embedded options available	No
Number of SATA connectors	4
HDD size	2.5"
Chassis type	Desktop
Additional headers	FRONT_PANEL
Launch date	Q4'22
