Description
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | Intel |

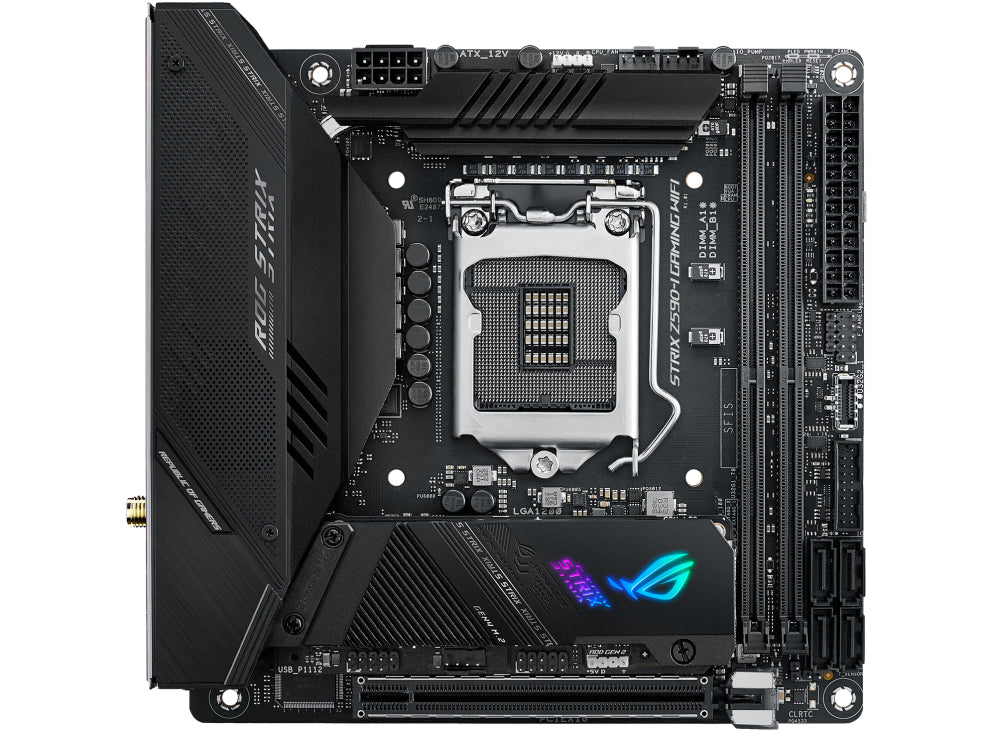

| Motherboard chipset | Intel Z590 |
| Supported processor sockets | LGA 1200 (Socket H5) |
| Parallel processing technology support | Not supported |
| HDMI version | 2.0 |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z590 |
| Windows operating systems supported | Windows 10 x64 |
| Supported processor sockets | LGA 1200 (Socket H5) |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
| Supported processor sockets | LGA 1200 (Socket H5) |
| Processor socket | LGA 1200 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4266,4400,4500,4600,4700,4800,5000,5133 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 1 |
| Thunderbolt ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 3 |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel I225-V |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Features | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z590 |
| Windows operating systems supported | Windows 10 x64 |
| Supported processor sockets | LGA 1200 (Socket H5) |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio chip | Realtek ALC4080 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Software | |
| Windows operating systems supported | Windows 10 x64 |
| Drivers included | Yes |
| Weight & dimensions | |
| Width | 6.69" (170 mm) |
| Depth | 6.69" (170 mm) |
| Packaging content | |
| Drivers included | Yes |
| Cables included | SATA, USB |
Specification:
| Cooling | |
|---|---|
| Fan diameter | 5.31" (13.5 cm) |
| Number of fans | 1 fan(s) |
| Design | |
| 80 PLUS certification | 80 PLUS Platinum |
| Safety | ROHS |
| Certification | ROHS |
| Product colour | Black, Silver |
| Fan diameter | 5.31" (13.5 cm) |
| Number of fans | 1 fan(s) |
| Power | |
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 89% |
| Ports & interfaces | |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 8 |
| CPU power connector (4+4 pin) | Yes |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Safety | ROHS |
| Certification | ROHS |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Width | 7.48" (190 mm) |
| Depth | 5.91" (150 mm) |
| Height | 3.39" (86 mm) |
| Weight | 5.22 lbs (2.37 kg) |
| Packaging data | |
| Package depth | 9.45" (240 mm) |
| Package width | 14.9" (378 mm) |
| Package height | 5.12" (130 mm) |
| Package type | Box |
| Package weight | 10.5 lbs (4.78 kg) |
| Certificates | |
| 80 PLUS certification | 80 PLUS Platinum |
| Safety | ROHS |
| Certification | ROHS |
| Other features | |
| Harmonized System (HS) code | 84733020 |
