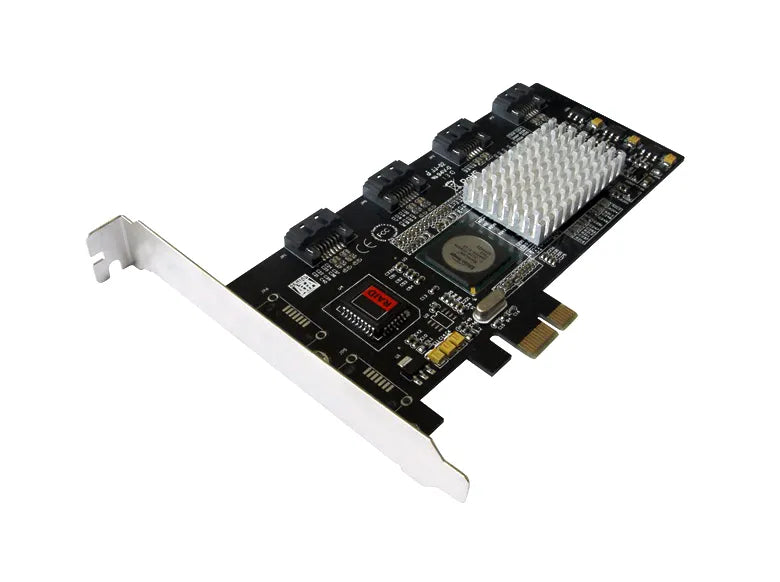

RS3SC008 - Intel INTEL INTERGRATED RAID MODULE
RS3SC008 - Intel INTEL INTERGRATED RAID MODULE
SKU:RS3SC008
Regular price
$128.25 USD
Regular price
Sale price
$128.25 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
12Gb/s SAS12Gb/s SAS, 6Gb/s SATA, LSI3108 ROC Scalable Performance Intelligent RAID 0,1,5,10,50,60 add-in card with x8 PCIe 3.0, 8 external ports, MD2 Low Profile form factor.
Specification:
| Ports & interfaces | |
|---|---|
| Supported storage drive interfaces | SAS, Serial ATA |
| Host interface | PCI Express x8 |
| PCI Express slots version | 3.0 |
| PCI Card form factor | Half-height (low-profile) |
| Performance | |
| RAID ARK ID | 76066 |
| RAID levels | 0, 1, 1E, 10 |
| SSD support | Yes |
| Chipset | LSI3008 |
| LED indicators | Activity |
| Sustained data transfer rate (native) | 12288 MB/s |
| Number of devices supported | 244 |
| Form factor | Low Profile MD2 Card |
| Data transfer rate | 12 Gbit/s |
| Connector orientation | Side |
| Harmonized System (HS) code | 84733080 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G134612 |
| JBOD function | Yes |
| Processor | |
| Processor model | LSISAS3008 |
| Design | |
| LED indicators | Activity |
| Form factor | Low Profile MD2 Card |
| Connector orientation | Side |
| Technical details | |
| Product type | RAID |
| Processor model | LSISAS3008 |
| Data transfer rate | 12288 Mbit/s |
| Status | Launched |
| RAID connector orientation | Side |
| Product name | Intel RAID Controller RS3UC080 |
| PCI Express host interface | PCIe x8 Gen3 |
| Market segment | Server |
| Launch date | Q3'13 |
| Born on date | Q3'13 |
| Last change | 63903513 |
| Target market | Entry |
| Last receipt attributes date | Thursday, October 1, 2020 |
| Last order date | Wednesday, July 1, 2020 |
| Extended warranty available for purchase (select countries) | Yes |
| Expected discontinuance date | 2022 |
| End of life date announce | Tuesday, July 16, 2019 |
| Packaging content | One RAID adapter with full and low proile brackets |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | No |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Packaging content | One RAID adapter with full and low proile brackets |
| Packaging content | |
| Packaging content | One RAID adapter with full and low proile brackets |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| RAID ARK ID | 76066 |
| PCI Card form factor | Half-height (low-profile) |
| Supported devices | SAS/SATA |
| Other features | Supports up to two RAID 0,1,1E and 10 arrays and up to 1024 non-RAID volumes |
| Internal ports | 8 |
| Market segment | Server |
| Additional features | Supports up to two RAID 0,1,1E and 10 arrays and up to 1024 non-RAID volumes |
| Product series | Intel RAID Controllers |
