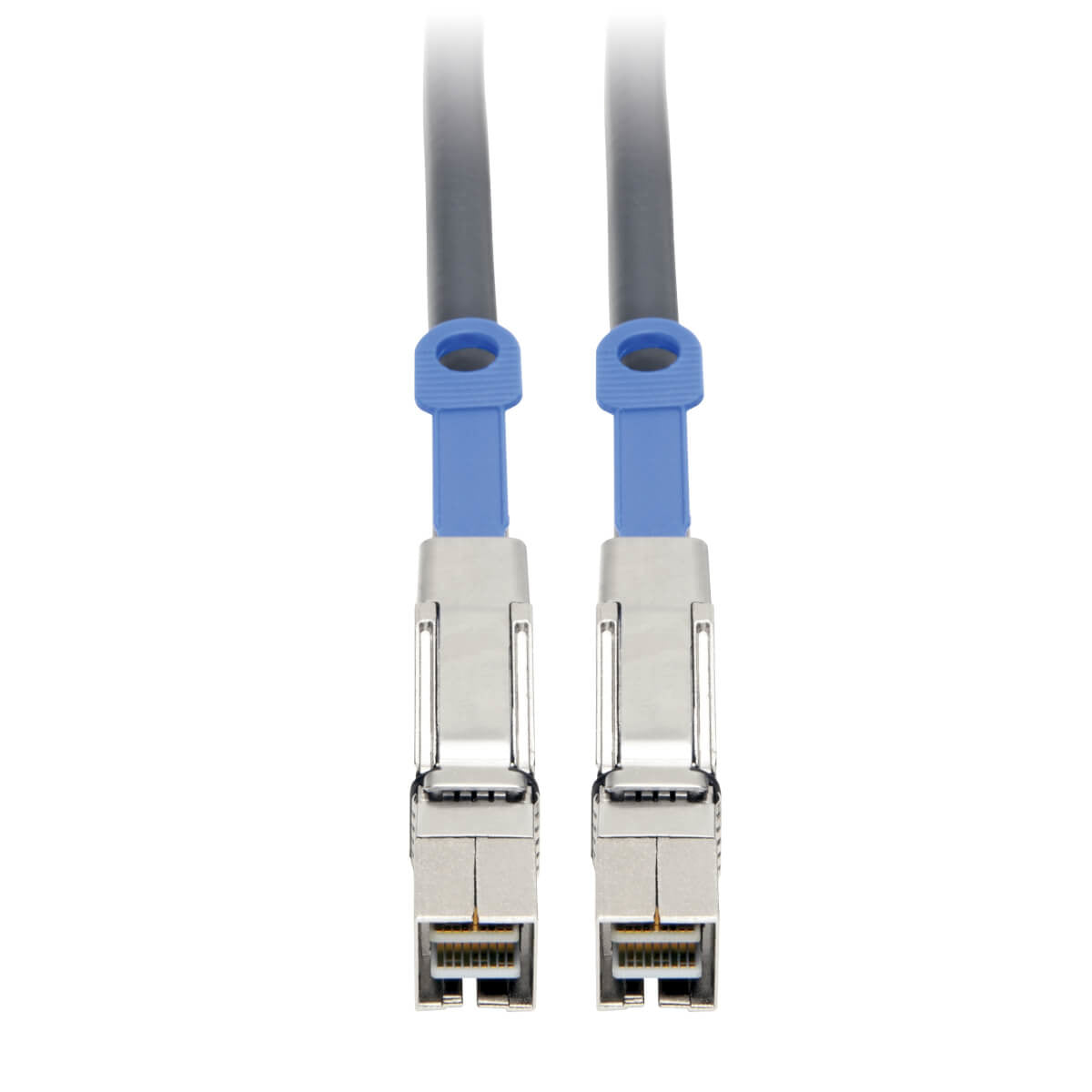

S528-01M - Tripp Lite MINI-SAS EXTERNAL HD CABLE - SFF-8644 TO SFF-8644, 12 GBPS, 1 M 3.3 FT

High-Performance Mini-SAS External HD Cable for Connecting SAN Devices This four-channel InfiniBand cable connects two storage devices with external mini-SAS HD SFF-8644 connectors, such as 12G RAID controllers, SATA hard drives, enclosures and JBOD devices. It supports data transfer rates up to 12 Gbps, which is faster than eSATA, USB 3.0 and Thunderbolt cables. The high-density connectors are surrounded by durable die-cast zinc that is compatible with shielded external connectors. Protective caps defend the connectors against dust and damage. Convenient pull-tabs make it easy to disconnect the cable in crowded racks and other applications. The S528-01M is backward compatible with previous SAS versions to ensure compatibility with your devices.



Specification:



Features
Data transfer rate (max)	12 Gbit/s
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	28
Connector gender	Male/Male
Connector 2	SFF-8644
Connector 1	SFF-8644
Product colour	Black, Blue, Metallic
Cable length	78.7" (2 m)
Technical details
Package width	3.94" (100 mm)
Package height	5.31" (135 mm)
Cable length	78.7" (2 m)
Master (outer) case GTIN (EAN/UPC)	10037332222319
Colour
Product colour	Black, Blue, Metallic
Ports & interfaces
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector 2	SFF-8644
Connector 1	SFF-8644
Weight & dimensions
Cable length	78.7" (2 m)
Packaging data
Package depth	0.5" (12.7 mm)
Package weight	7.41 oz (210 g)
Package width	3.94" (100 mm)
Package height	5.31" (135 mm)
Logistics data
Master (outer) case width	7.48" (190 mm)
Master (outer) case length	1" (25.4 mm)
Master (outer) case height	11.8" (300 mm)
Master (outer) case gross weight	4.63 lbs (2.1 kg)
Products per master (outer) case	10 pc(s)
Country of origin	China
Other features
Harmonized System (HS) code	8544.42.9090
