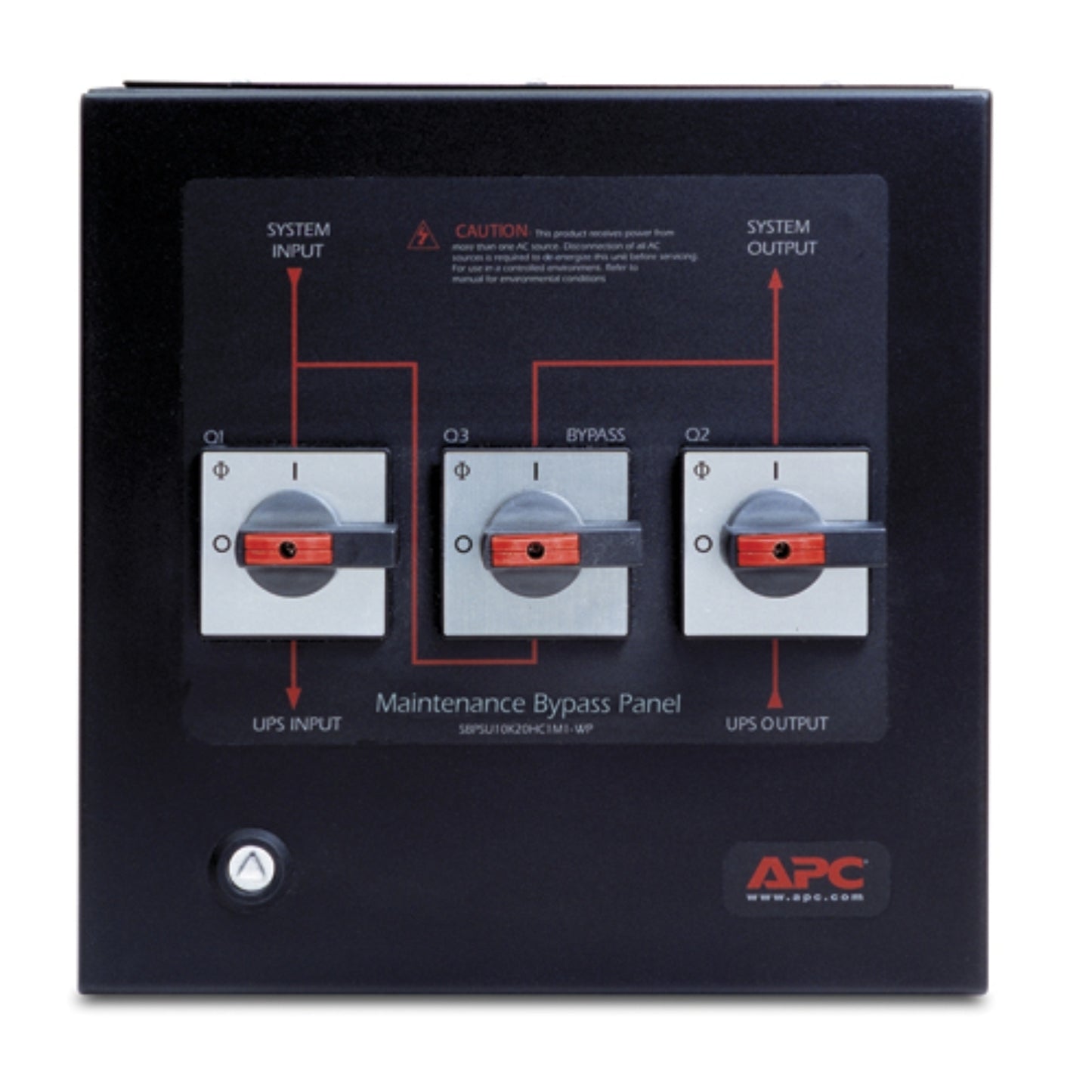

APC Smart-UPS VT Maintenance Bypass Panel

SBPSU10K20HC1M1-WP - APC SMART-UPS VT MNT BYPASS PANEL

Name: SBPSU10K20HC1M1-WP - APC SMART-UPS VT MNT BYPASS PANEL
Brand: APC
SKU: SBPSU10K20HC1M1-WP
Price: 507.82 USD
Availability: InStock
Rating: 3.7 (1 reviews)

Condition: New

$507.82

Availability: In Stock Unavailable

SKU: SBPSU10K20HC1M1-WP

Brand: APC

Categories:

All Collections, Batteries & Power Supplies, Maintenance Bypass Panels (MBPs)

Hurry Up! Only 99 Left in Stock!

Out of stock

Guarantee safe & Secure checkout

Description
Additional Information
Shipping & Return
Reviews

APC Service Bypass Panel , Input: 400V 3PH , Output: 400V 3PH. Includes: Installation guide, User Manual.

Specification:

Design
Mounting	Vertical
Product colour	Black
Ports & interfaces
Output connections	3PH + N + G
Power
Nominal input voltage	208 V
Maximum total current draw per phase	83.3 A
Maximum input current per phase	92 A
Load capacity	30000 VA
AC input frequency	50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)	37.4 x 7.76 x 29.5" (949 x 197 x 749 mm)
Weight	120.2 lbs (54.5 kg)
Package weight	130.3 lbs (59.1 kg)
Package dimensions (WxDxH)	41.4 x 8.98 x 36.5" (1051 x 228 x 927 mm)
Packaging data
Package weight	130.3 lbs (59.1 kg)
Package dimensions (WxDxH)	41.4 x 8.98 x 36.5" (1051 x 228 x 927 mm)
Operational conditions
Operating temperature (T-T)	0 - 40 Â°C
Storage temperature (T-T)	0 - 40 Â°C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
