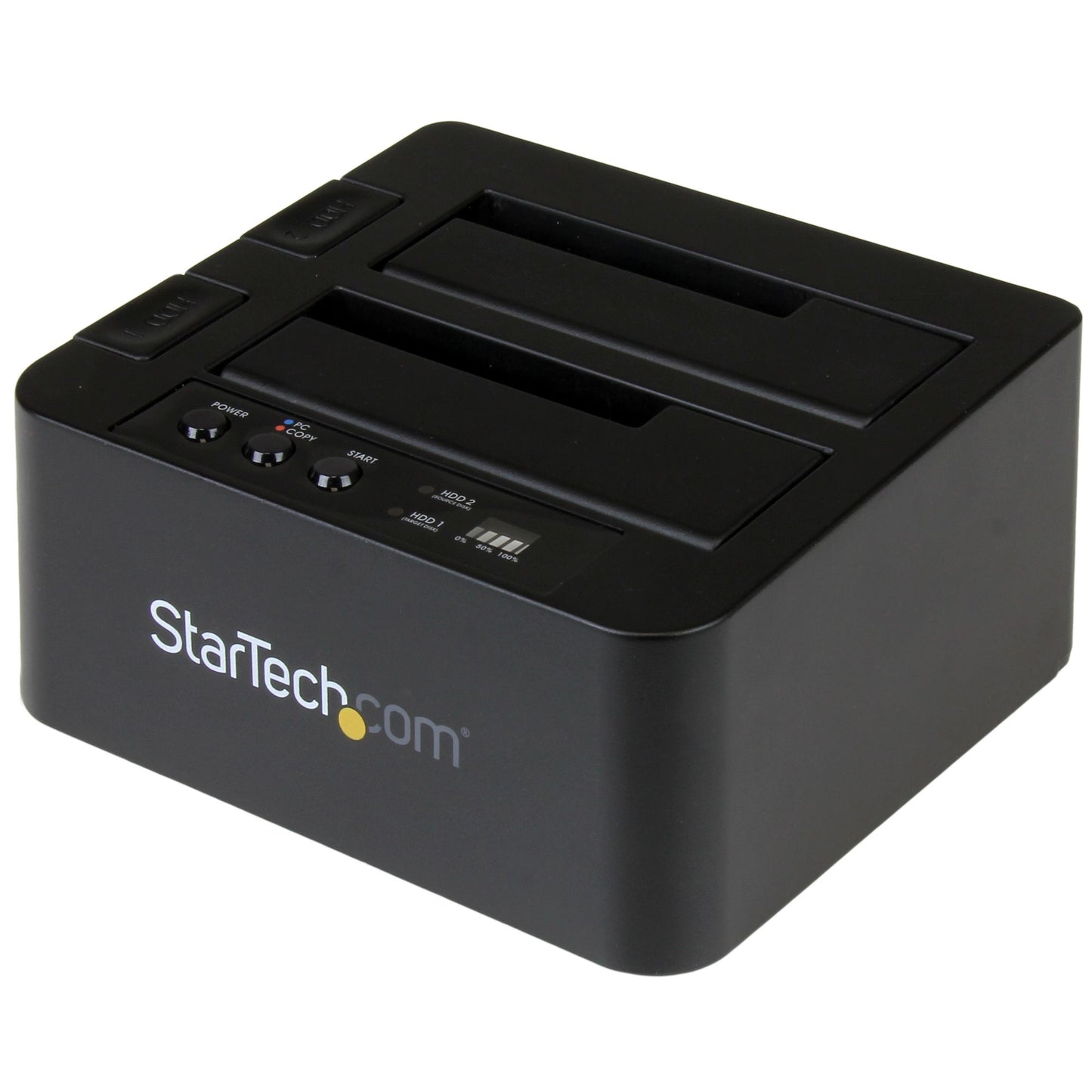

SDOCK2U313R - StarTech.com 2-BAY HARD DRIVE DUPLICATOR DOCK - 2.5 / 3.5 SATA DRIVES; SATA III (6 GBPS) W/ T

Hard Drive Cloner | 2.5"/3.5" HDD/SSD | USB 3.2 Gen 2 (10 Gbps) to SATA IIIDuplicate drives quickly, at rates of up to 28GB per minute for SSDs, without having to connect to your computer. This duplicator dock offers standalone drive cloning that makes it easy to back up your data and make exact images of your drives. You can also connect the dock to your computer through USB 3.2 Gen 2 (10Gbps), to dock and swap your drives as part of a scalable storage solution.Clone your drives at high speedDuplicating a hard drive or solid-state drive is an effective way to migrate your operating system and data from one drive to another, or create an exact copy for safeguarding your important data. This drive duplicator lets you create a sector-by-sector clone of your drive, including partitions and boot sector information, to ensure data integrity and consistency for sensitive operations such as data recovery.The duplicator dock saves you valuable time with SSD duplication speeds of up to 28GB per minute. You can duplicate a 2.5" or 3.5" SATA SSD or HDD easily, without having to connect the duplicator to a host computer.Transfer files quickly between the dock and your PCThe duplicator dock also provides an external storage solution, letting you dock your drives through USB 3.2 Gen 2 with UASP support, enabling fast data transfer rates of up to 10Gbps. Each drive slot individually supports a high-capacity hard drive or solid-state drive, tested up to 6 TB.Includes two USB cables for versatilityThe duplicator dock comes with two USB cables for flexible use with the latest laptops and tablets equipped with a USB-Câ„¢ port, as well as legacy devices. It includes both USB-C to B and USB-A to B cables. The duplicator dock is also compatible with a Thunderboltâ„¢ 3 USB-C port.Designed for easy useThe dock features a top-loading, toaster-style design that makes it easy to insert your drives. It also features drive doors to help stabilize drives that are inserted into the slot and prevent foreign objects from getting into the drive slots.Both tool-less and tray-less, the duplicator dock helps to ensure quick and hassle-free drive insertions. LED indicators let you know, at a glance, the current state of the duplication process, including the specific duplication mode, the HDD status and clone progress. The HDD ejection button enables fast and simple drive removal.For added compatibility with different drive types in duplication and docking applications, the SDOCK2U33RE supports the use of various drive adapters. The below list of StarTech.com adapters have been specifically tested, to ensure compatibility with this drive duplicator:SATA to 2.5in or 3.5in IDE Drive Adapter - SAT2IDEADP2.5in SATA to Mini SATA SSD Adapter - SAT2MSAT25M.2 SSD to 2.5in SATA Adapter - SAT32M225The SDOCK2U313R is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage



Specification:



Hard drive
Storage media type	HDD, SSD
Storage drive interface	Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of storage drives supported	2
Maximum storage capacity	8 TB
Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
DC-in jack	Yes
Technical details
UASP support	Yes
Mean time between failures (MTBF)	30000 h
Package width	7.44" (189 mm)
Package height	8.35" (212 mm)
Maximum data transfer rate	6 Gbit/s
Product colour	Black
Material	Plastic
Plug and Play	Yes
Chipset	VIA/VLI – VL812, ASMedia ASM1053E
Number of connectivity cycles	15000
Sustainability certificates	RoHS
Harmonized System (HS) code	84733080
Features
UASP support	Yes
Mean time between failures (MTBF)	30000 h
Maximum data transfer rate	6 Gbit/s
LED indicators	Activity, Power
Product colour	Black
Material	Plastic
Plug and Play	Yes
Certification	CE, FCC, REACH
Chipset	VIA/VLI – VL812, ASMedia ASM1053E
Number of connectivity cycles	15000
Cooling
Built-in fan	No
Power
AC input voltage	100 - 240 V
Input current	1.3 A
Output voltage	12 V
Output current	3 A
Weight & dimensions
Width	5.2" (132 mm)
Depth	5.83" (148 mm)
Height	2.76" (70 mm)
Weight	18.1 oz (513 g)
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 80%
Certificates
Certification	CE, FCC, REACH
Indication
LED indicators	Activity, Power
Software
Windows operating systems supported	Windows 2000, Windows 8, Windows 8.1, Windows Vista Home Basic, Windows XP Home
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Ethernet LAN features
LED indicators	Activity, Power
Packaging content
Included power plug types	EU, NA, UK
AC adapter included	Yes
Cables included	USB
Manual	Yes
Packaging data
Package depth	4.8" (122 mm)
Package width	7.44" (189 mm)
Package height	8.35" (212 mm)
Package weight	2.2 lbs (1 kg)
Logistics data
Master (outer) case width	8.15" (207 mm)
Master (outer) case length	24.1" (613 mm)
Master (outer) case height	18.3" (464 mm)
Products per master (outer) case	10 pc(s)
