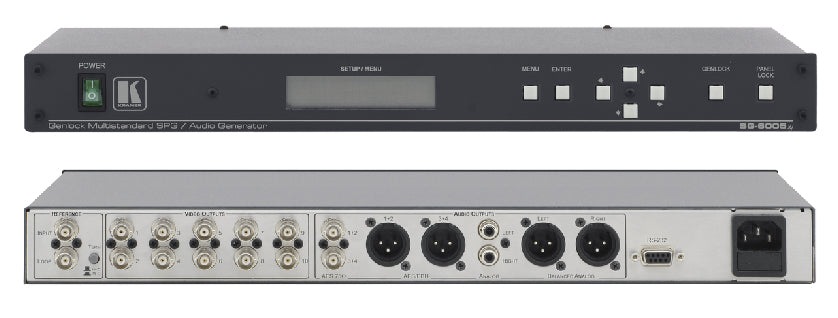

SG-6005XL - Kramer Electronics MULTISTANDARD COMPOSITE VIDEO BLK BURST

The SG−6005xl is a broadcast quality black burst, color bar, sync, and audio tone generator for composite video and audio applications. The unit outputs ten composite video and two AES−3id audio signals on BNC connectors, two balanced stereo and two AES/EBU audio signals on XLR connectors and an unbalanced stereo audio signal on two RCA connectors. The unit can be genlocked to an external video source.

- 10 Composite Video Outputs.
- 8 Color Bar Patterns.
- Ultra Stable - 1ppm frequency tolerance.
- Color Bar or Black Burst (Output Selectable).
- SCH/Phase Adjust.
- Looping Analog Genlock Input - For sync and color locking.
- Selectable Sync Input Signal Termination.
- Audio Outputs - Balanced (2 XLR), unbalanced (2 RCA), AES−3id (2 BNC) & AES/EBU (2 XLR).
- Frequency & Amplitude Adjustable.
- Control - Front panel & RS−232 (Kramer's K−Router™ Windows−based software is included).
- Worldwide Power Supply - 100−240V AC.
- Standard 19” Rack Mount Size - 1U. Rack "ears" included.
